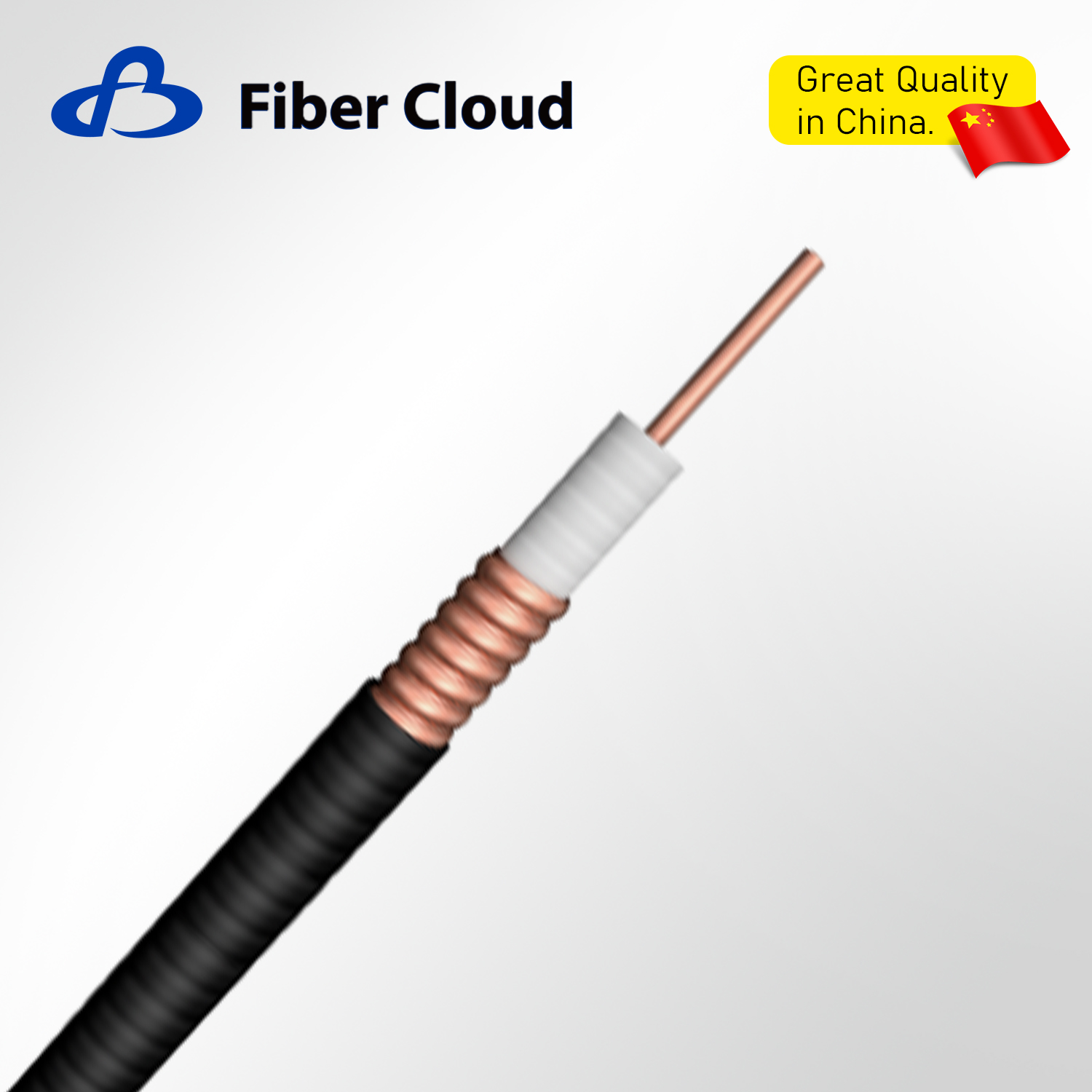

| Availability: | |
|---|---|
Inner Conductor | Dielectric | Outer Conductor | Jacket | |
| RF 1/2" RF Coaxial Cable | 4.80mm | 12.10mm | 13.90mm | 16.00mm |

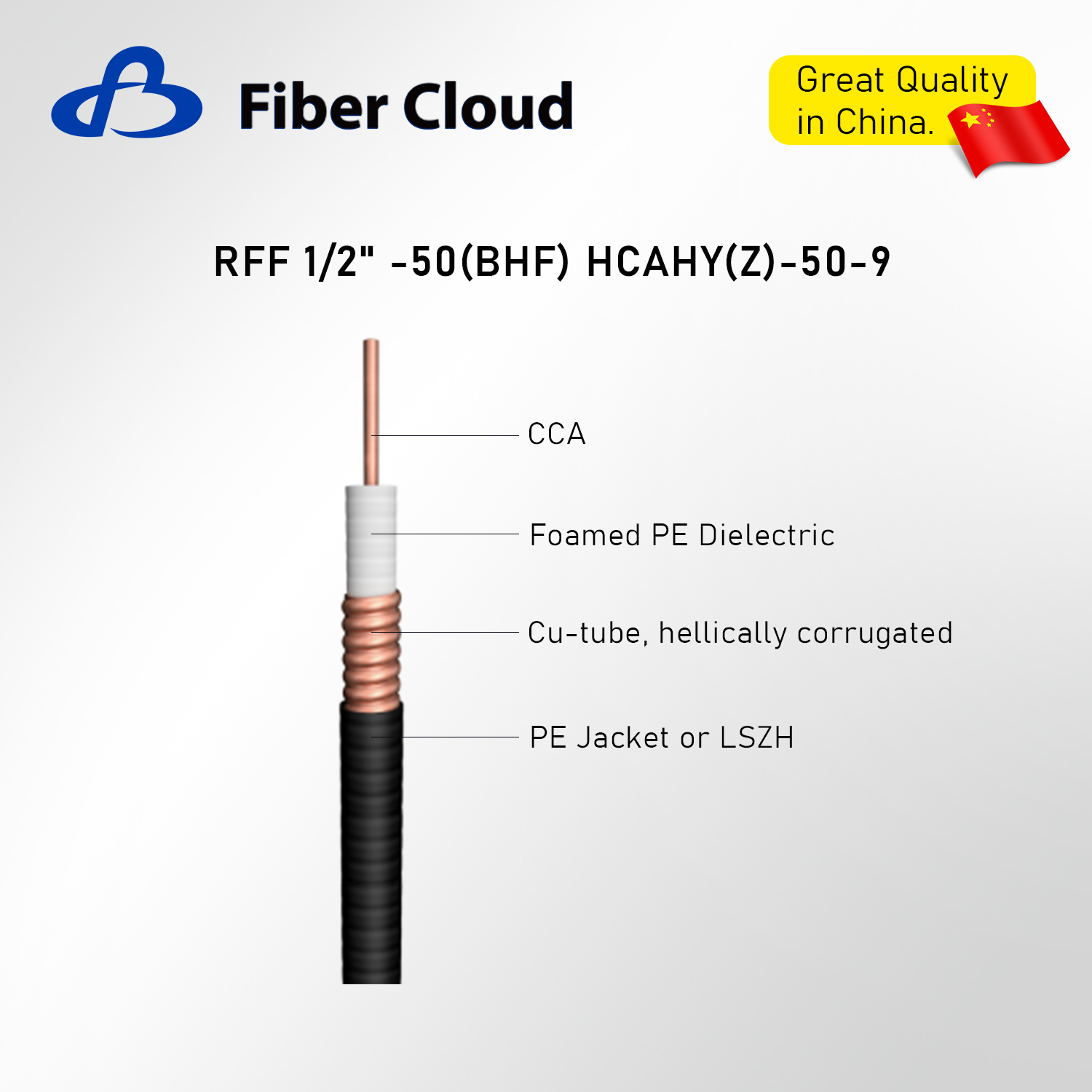

RFF 1/2" Superflexible RF Coaxial Cable | 3.55mm | 9.00mm | 11.90mm | 13.50mm |
RFF 1/3" Superflexible RF Coaxial Cable | 2.65mm | 6.80mm | 7.60mm | 8.80mm |
RF 7/8" RF Coaxial Cable | 9.00mm | 22.20mm | 24.90mm | 27.50mm |
RFA 7/8" RF Coaxial Cable | 9.40mm | 22.50mm | 25.40mm | 27.80mm |
RFA 1 1/4" RF Coaxial Cable | 13.00mm | 32.20mm | 35.80mm | 39.00mm |
RFA 1 5/8" RF Coaxial Cable | 17.60mm | 42.20mm | 46.30mm | 50.00mm |
Electrical Characteristics at +20℃
Characteristic Impedance | 50 ± 1Ω |
| Return Loss for | |
| 320 ‒ 480 MHz | As specified by customer |
700 ‒ 960 MHz | As specified by customer |
1700 ‒ 1880 MHz | As specified by customer |
1880 ‒ 2180 MHz | As specified by customer |
2300 ‒ 3000 MHz | As specified by customer |
3300 ‒ 3700 MHz | As specified by customer |
4800 ‒ 5000 MHz | As specified by customer |
Other Bands Also Available on Request | |
| Attenuation | See table |
Velocity Factor | 0.81 |
Capacitance | 83 pF/m |
Maximum Frequency | 12 GHz |
Max Power Rating | See table |
Peak RF Voltage Rating | 1.39 kV |
Peak Power Rating | 19.0 kW |
| Frequency（MHz） | 1400 | 1600 | 1800 | 1900 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | 3500 | 4000 | 6000 | |
| Attenuation Ambient temperature +20℃dB/100m | Typical | 12.8 | 13.8 | 14.8 | 15.2 | 15.6 | 16.4 | 17.2 | 18.1 | 18.8 | 19.6 | 21.4 | 23.1 | 29.4 |
| Power rating ambient +40℃ inner conductor +100℃KW | 0.62 | 0.58 | 0.54 | 0.52 | 0.51 | 0.48 | 0.46 | 0.44 | 0.42 | 0.40 | 0.36 | 0.34 | 0.27 | |
| Frequency（MHz） | 10 | 50 | 100 | 200 | 300 | 400 | 450 | 500 | 700 | 800 | 900 | 950 | 1000 | |
| Attenuation Ambient temperature +20℃dB/100m | Typical | 0.99 | 2.22 | 3.16 | 4.56 | 5.59 | 6.56 | 7.01 | 7.44 | 8.83 | 9.5 | 10.1 | 10.4 | 10.7 |
| Power rating ambient +40℃ inner conductor +100℃KW | 8.4 | 3.7 | 2.6 | 1.8 | 1.4 | 1.2 | 1.2 | 1.1 | 0.91 | 0.85 | 0.79 | 0.77 | 0.75 | |
Weight | Crush Resistance | Maximum Pulling Force | Single Bending | Repeated Bending | Operating Temperature Range | Min. installation temperature |
| 190kg/km | 19N/mm | 800N | 15 mm | 50 mm | -55℃ to +80℃ | See Jacketing Options |
Type | Jacket | IEC60754-1/-2 halogenfree, noncorrosive | IEC61034 low smoke emission | IEC60332-1/3C fire retardant | Min. installation temperature |
| HCAHY -50-9 | Black polyethylene | Yes | No | No | -40℃ |
HCAHYZ -50-9 | Black halogen free fire retardant thermoplastic | Yes | Yes | Yes | -20℃ |
