1/2” Wide-beam Leaky Cable（H Band）

Leaky coaxial cable has dual functions of radio frequency transmission and antenna radiating and receivingThe application occasions are mainly the coverage of metro, railway tunnel and highway tunnel with limitedwireless transmission. And the indoor coverage of large buildings.

Availability:



Inquire Add to Basket

Product Description

	Inner Conductor	Dielectric	Outer Conductor	Jacket
7/8" Radiating Type Leaky Coaxial Cable（M/H Band）	9.0 mm	23.2 mm	23.5 mm	27.5 mm
7/8" Radiating Type Leaky Coaxial Cable（HK Band）	9.0 mm	23.2 mm	23.5 mm	27.5 mm
1/2" Radiating Type Leaky Coaxial Cable（H Band）	4.8 mm	12.2 mm	13.2 mm	15.8 mm
1 1/4" Radiating Type Leaky Coaxial Cable（M/HBand）	13.1 mm	33.0 mm	33.5 mm	37.0 mm
1 1/4" Radiating Type Leaky Coaxial Cable（HK Band）	13.1 mm	33.0 mm	33.5 mm	37.0 mm
1 1/4”Radiating Type Leaky Coaxial Cable (L Band)	13.1 mm	33.0 mm	33.5 mm	37.0 mm
1/2" Radiating Type Le akage Cable For Coal Mine	4.8 mm	12.5 mm	13.1 mm	15.6 mm
7/8" Radiating Type Leakage Cable For Coal Mine	9.0 mm	22.8 mm	23.5 mm	27.2 mm
1 1/4" Radiating Type Leaky Coaxial Cable (Horizontal polarization)	13.1 mm	33.0 mm	33.5 mm	37.0 mm
1 5/8" Radiating Type Leaky Coaxial Cable (Z Band)	17.6 mm	43.0 mm	43.6 mm	47.5 mm
1 5/8" Radiating Type Leaky Coaxial Cable	17.6 mm	43.0 mm	43.6 mm	47.5 mm
1 5/8" Radiating Type Leaky Coaxial Cable (Train System Ⅲ Type)	17.6 mm	43.0 mm	43.6 mm	47.5 mm

Cable Type

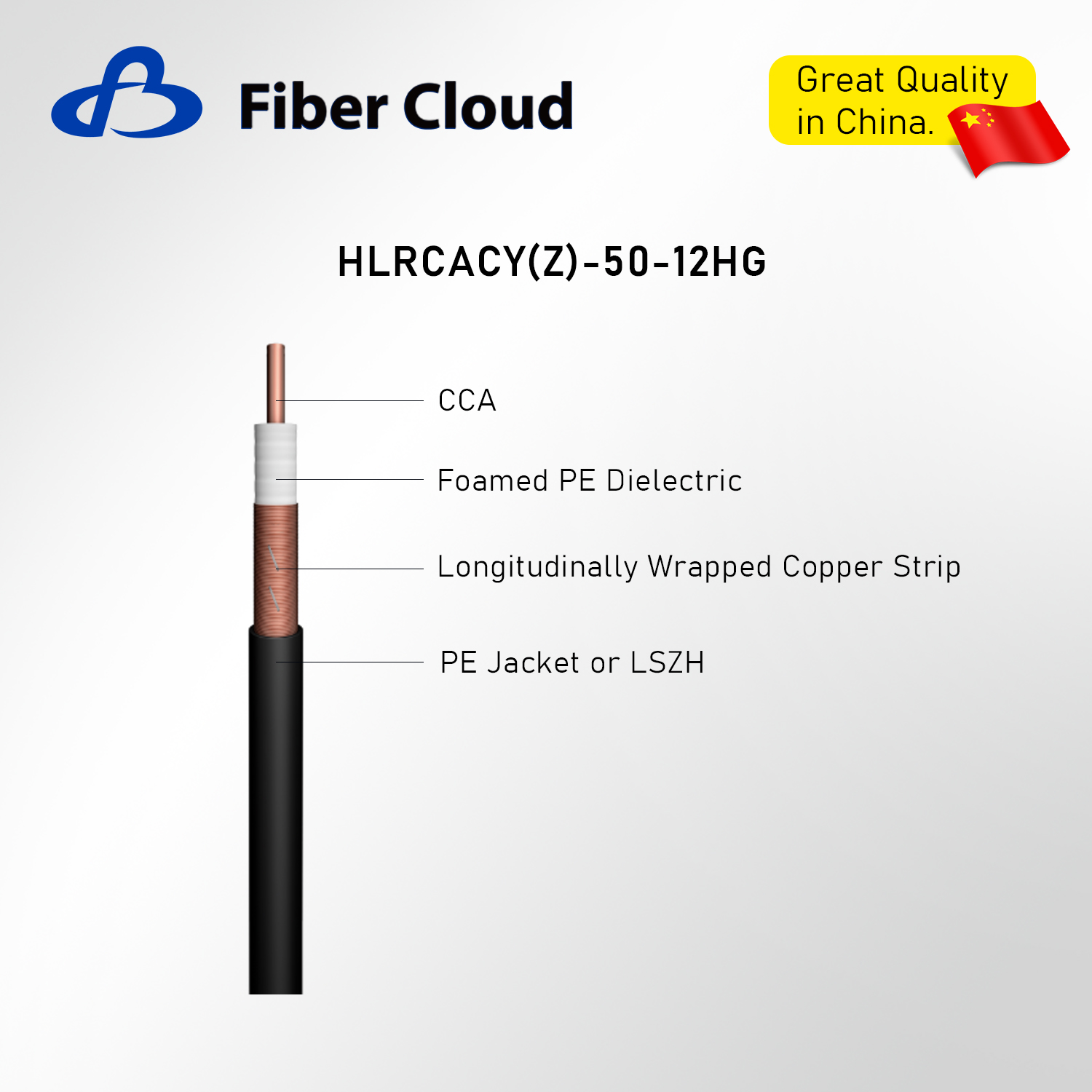

Cable Type: HLRCACY(Z)-50-12HG

Inner conductor	Copper-clad aluminium wire	Ø 4.8 mm
Dielectric	Cellular polyethylene	Ø 12.2 mm
Outer conductor	Copper foil	Ø 13.2 mm
Jacket	Black PE or Black LSZH	Ø 15.8 mm
Marking	Brand, cable type, cable ID, meter mark	/

Electrical Characteristics at +20℃

Characteristic Impedance	Velocity	Capacitance	Insulation Resistance	Insulation Voltage	Jacket Spark Test Voltage
50 ± 2 Ω	0.88	76 pF/m	＞5000 MΩ.km	6000 V	8000 V

VSWR

Frequency (MHz)	790-960	1700-1900	1900-2050	2100-2200	2300-2700
VSWR (Max)	1.30		1.40

Attenuation and Coupling Loss

Frequency（MHz）	Attenuation dB/100m Max	Coupling Loss (95%) dB
Frequency（MHz）	Attenuation dB/100m Max	0°Forward	90°Side	180°Back
900	8.9	80	80	80
1800	14.3	73	73	73
1900	15.0	73	73	73
2000	15.7	71	71	71
2200	16.7	72	72	72
2400	17.6	72	72	72
2600	18.6	70	70	70
2700	18.9	70	70	70
