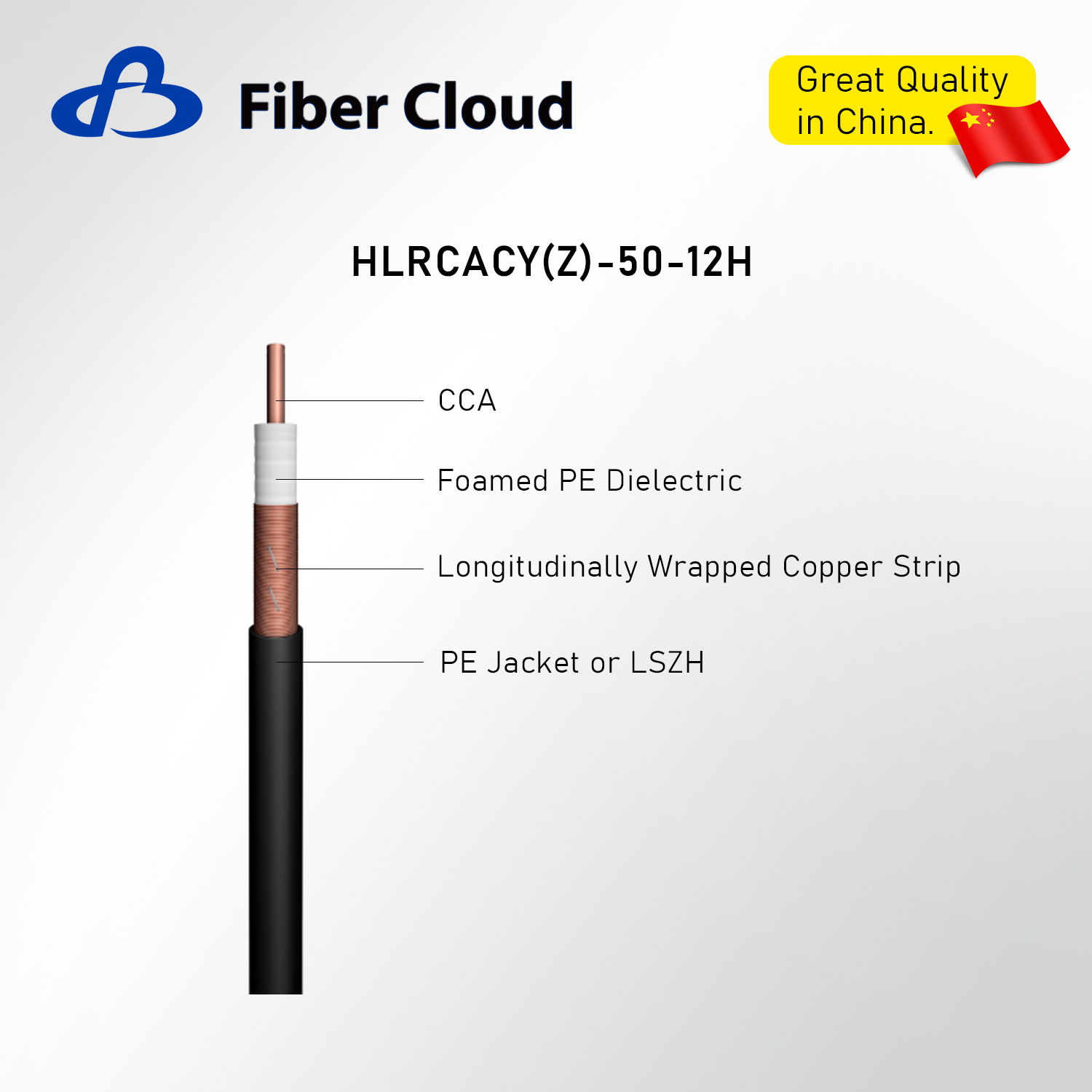

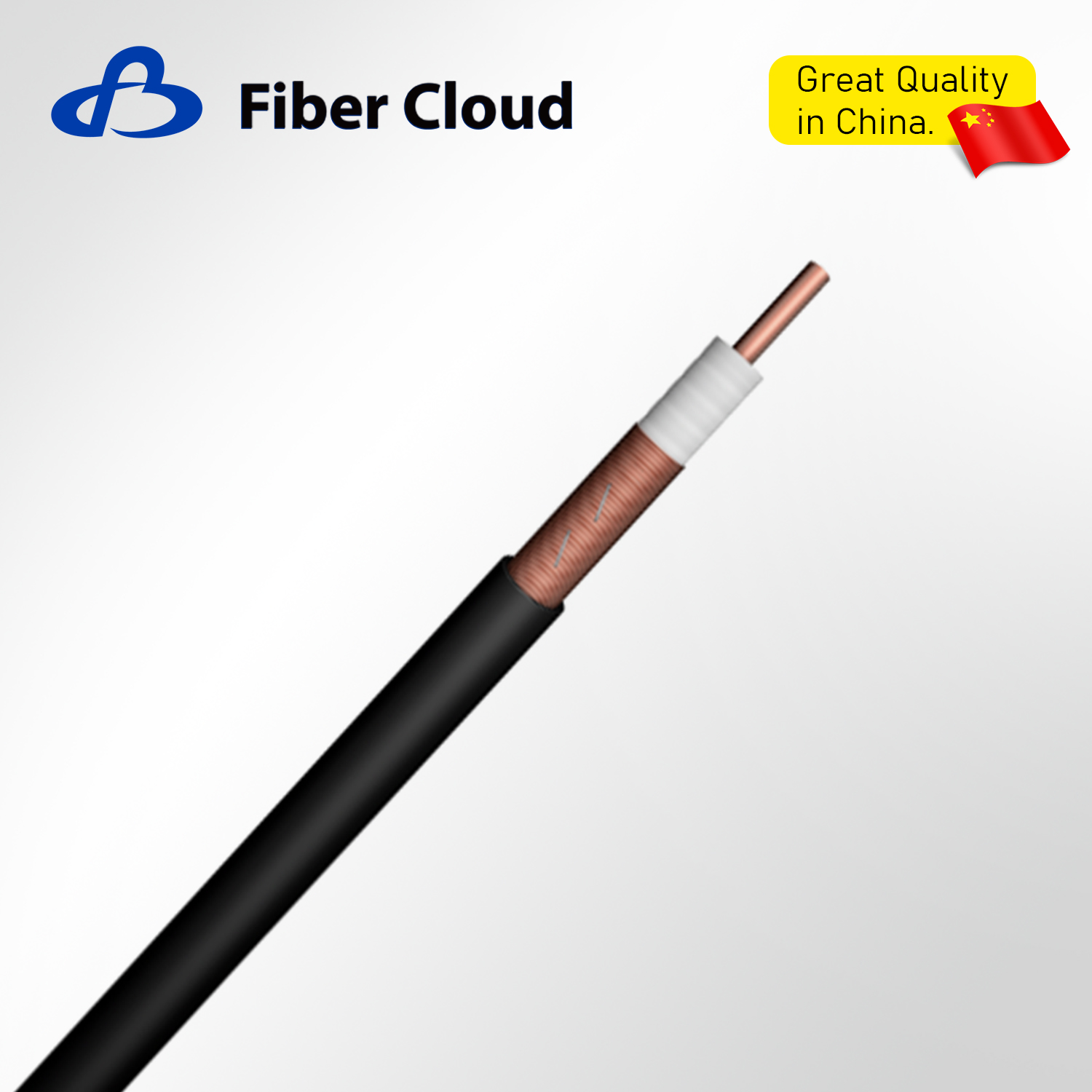

1/2" Radiating Type Leaky Coaxial Cable (H Band)

Leaky coaxial cable has dual functions of radio frequency transmission and antenna radiating and receivingThe application occasions are mainly the coverage of metro, railway tunnel and highway tunnel with limitedwireless transmission. And the indoor coverage of large buildings.

Availability:



Inquire Add to Basket

Product Description

	Inner Conductor	Dielectric	Outer Conductor	Jacket
7/8" Radiating Type Leaky Coaxial Cable（M/H Band）	9.0 mm	23.2 mm	23.5 mm	27.5 mm
7/8" Radiating Type Leaky Coaxial Cable（HK Band）	9.0 mm	23.2 mm	23.5 mm	27.5 mm
1/2" Radiating Type Leaky Coaxial Cable（H Band）	4.8 mm	12.2 mm	13.2 mm	15.8 mm
1 1/4" Radiating Type Leaky Coaxial Cable（M/HBand）	13.1 mm	33.0 mm	33.5 mm	37.0 mm
1 1/4" Radiating Type Leaky Coaxial Cable（HK Band）	13.1 mm	33.0 mm	33.5 mm	37.0 mm
1 1/4”Radiating Type Leaky Coaxial Cable (L Band)	13.1 mm	33.0 mm	33.5 mm	37.0 mm
1/2" Radiating Type Le akage Cable For Coal Mine	4.8 mm	12.5 mm	13.1 mm	15.6 mm
7/8" Radiating Type Leakage Cable For Coal Mine	9.0 mm	22.8 mm	23.5 mm	27.2 mm
1 1/4" Radiating Type Leaky Coaxial Cable (Horizontal polarization)	13.1 mm	33.0 mm	33.5 mm	37.0 mm
1 5/8" Radiating Type Leaky Coaxial Cable (Z Band)	17.6 mm	43.0 mm	43.6 mm	47.5 mm
1 5/8" Radiating Type Leaky Coaxial Cable	17.6 mm	43.0 mm	43.6 mm	47.5 mm
1 5/8" Radiating Type Leaky Coaxial Cable (Train System Ⅲ Type)	17.6 mm	43.0 mm	43.6 mm	47.5 mm

Electrical Characteristics at +20℃

Characteristic Impedance	Velocity	Capacitance	Insulation Resistance	Insulation Voltage	Jacket Spark Test Voltage
50 ± 2 Ω	0.88	76 pF/m	＞5000 MΩ.km	6000 V	8000 V

VSWR

Frequency (MHz)	790-960	1700-1900	1900-2050	2100-2200	2300-2500	2500-2700
VSWR (Max)	1.30		1.40

Attenuation and Coupling Loss

	Frequency (MHz)	Attenuation dB/100m(+20℃)	Coupling Loss (95%) dB
H Band	800	7.09	84
	900	7.67	82
	1800	13.88	70
	1900	14.56	71
	2000	15.24	72
	2200	16.21	71
	2400	17.09	72
	2600	18.06	69
	2700	18.35	70
