| Inner Conductor | Dielectric | Outer Conductor | Jacket |
| RF 1/2" RF Coaxial Cable | 4.80mm | 12.10mm | 13.90mm | 16.00mm |
RFF 1/2" Superflexible RF Coaxial Cable | 3.55mm | 9.00mm | 11.90mm | 13.50mm |

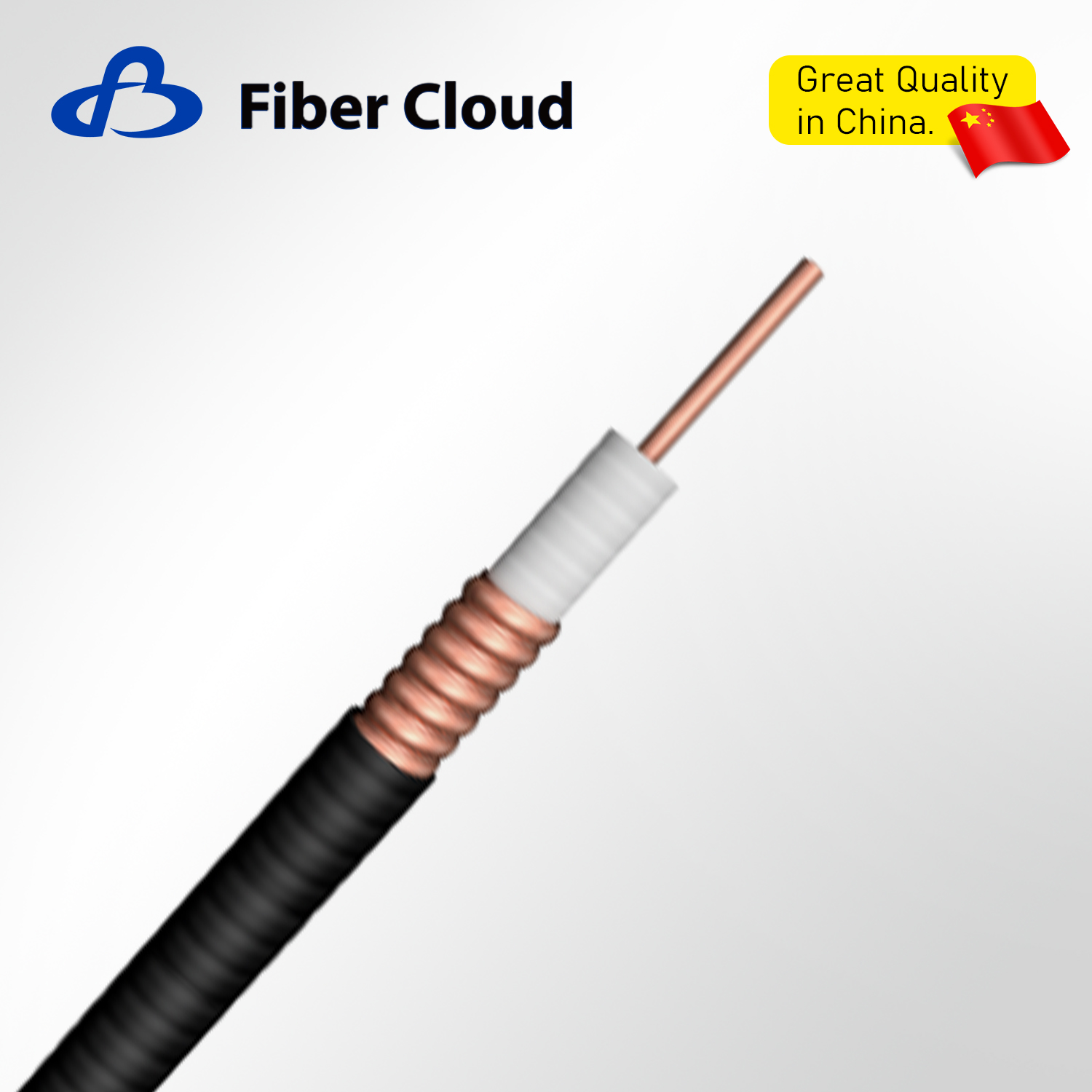

RFF 1/3" Superflexible RF Coaxial Cable | 2.65mm | 6.80mm | 7.60mm | 8.80mm |
RF 7/8" RF Coaxial Cable | 9.00mm | 22.20mm | 24.90mm | 27.50mm |
RFA 7/8" RF Coaxial Cable | 9.40mm | 22.50mm | 25.40mm | 27.80mm |
RFA 1 1/4" RF Coaxial Cable | 13.00mm | 32.20mm | 35.80mm | 39.00mm |
RFA 1 5/8" RF Coaxial Cable | 17.60mm | 42.20mm | 46.30mm | 50.00mm |
Electrical Characteristics at +20℃
Characteristic Impedance | 50 ± 1Ω |
| Return Loss for |
| 320 ‒ 480 MHz | As specified by customer |
700 ‒ 960 MHz | As specified by customer |
1700 ‒ 1880 MHz | As specified by customer |
1880 ‒ 2180 MHz | As specified by customer |
2300 ‒ 3000 MHz | As specified by customer |
3300 ‒ 3700 MHz | As specified by customer |
4800 ‒ 5000 MHz | As specified by customer |
Other Bands Also Available on Request |
| Attenuation | See table |
Velocity Factor | 0.85 |
Capacitance | 77 pF/m |
Maximum Frequency | 6G Hz |
Max Power Rating | See table |
Attenuation and Power Rating
| Frequency（MHz） | 800 | 894 | 1000 | 1800 | 2000 | 2200 | 2500 | 2700 | 3500 | 5000 | 6000 |
| Attenuation Ambient temperature +20℃dB/100m | Typical | 12.50 | 13.20 | 14.00 | 19.00 | 20.05 | 21.00 | 22.50 | 23.40 | 26.80 | 32.70 | 36.20 |
| Power rating ambient +40℃ inner conductor +100℃KW | 0.48 | 0.45 | 0.42 | 0.31 | 0.29 | 0.28 | 0.26 | 0.25 | 0.21 | 0.18 | 0.15 |
Mechanical Characteristics
Weight | Crush Resistance | Maximum Pulling Force | Single Bending | Repeated Bending | Operating Temperature Range | Min. installation temperature |
| 90kg/km | 10N/mm | 700N | 30 mm | 50 mm | -55℃ to +80℃ | See Jacketing Options |
Type | Jacket | IEC60754-1/-2 halogenfree, noncorrosive | IEC61034 low smoke emission | IEC60332-1/3C fire retardant | Min. installation temperature |

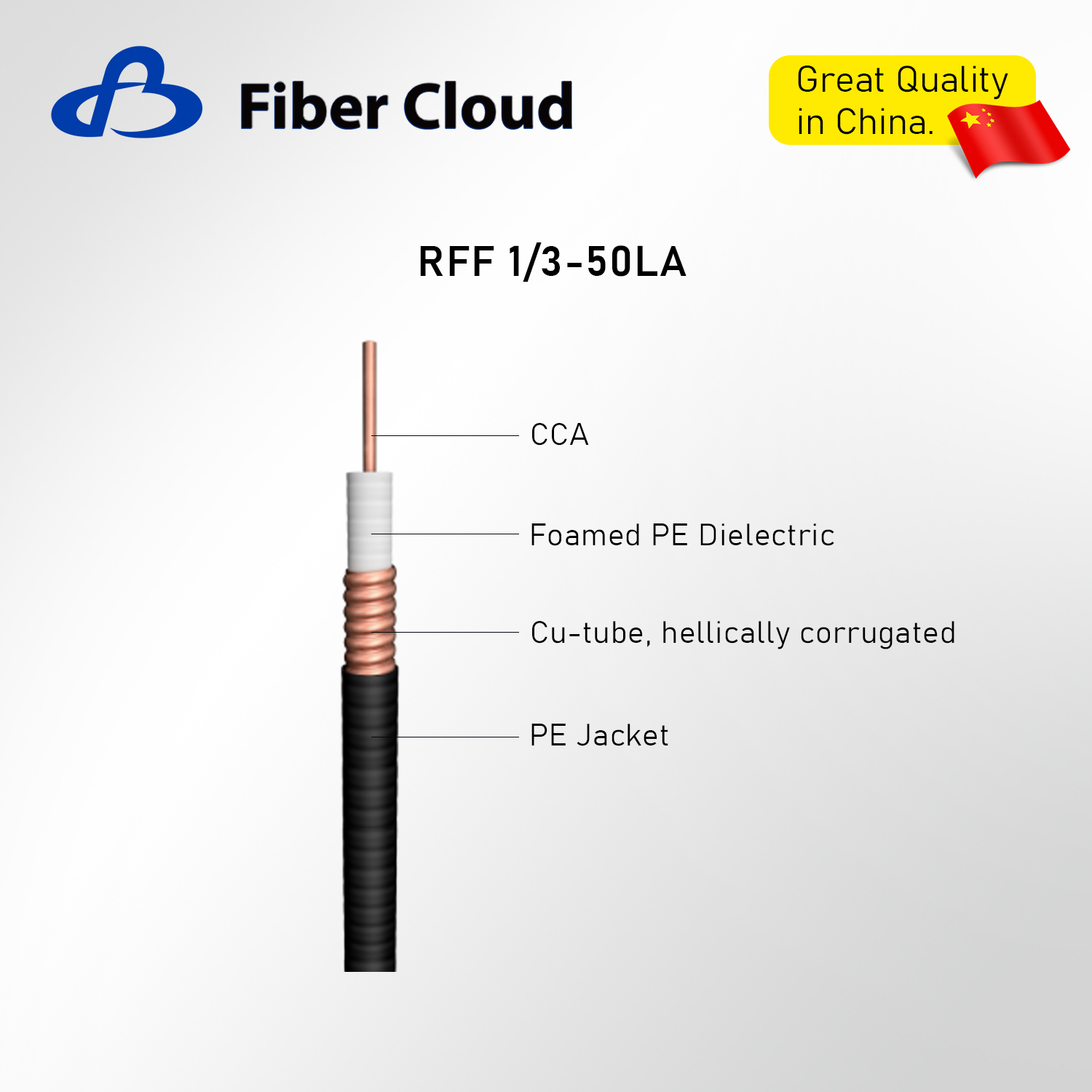

RFF 1/3-50LA | Black polyethylene | Yes | No | No | -40℃ |
