| Inner Conductor | Dielectric | Outer Conductor | Jacket |
| 7/8" Radiating Type Leaky Coaxial Cable（M/H Band） | 9.0 mm | 23.2 mm | 23.5 mm | 27.5 mm |
| 7/8" Radiating Type Leaky Coaxial Cable（HK Band） | 9.0 mm | 23.2 mm | 23.5 mm | 27.5 mm |
| 1/2" Radiating Type Leaky Coaxial Cable（H Band） | 4.8 mm | 12.2 mm | 13.2 mm | 15.8 mm |
| 1 1/4" Radiating Type Leaky Coaxial Cable（M/HBand） | 13.1 mm | 33.0 mm | 33.5 mm | 37.0 mm |
| 1 1/4" Radiating Type Leaky Coaxial Cable（HK Band） | 13.1 mm | 33.0 mm | 33.5 mm | 37.0 mm |
| 1 1/4”Radiating Type Leaky Coaxial Cable (L Band) | 13.1 mm | 33.0 mm | 33.5 mm | 37.0 mm |
| 1/2" Radiating Type Le akage Cable For Coal Mine | 4.8 mm | 12.5 mm | 13.1 mm | 15.6 mm |
| 7/8" Radiating Type Leakage Cable For Coal Mine | 9.0 mm | 22.8 mm | 23.5 mm | 27.2 mm |
| 1 1/4" Radiating Type Leaky Coaxial Cable (Horizontal polarization) | 13.1 mm | 33.0 mm | 33.5 mm | 37.0 mm |
| 1 5/8" Radiating Type Leaky Coaxial Cable (Z Band) | 17.6 mm | 43.0 mm | 43.6 mm | 47.5 mm |

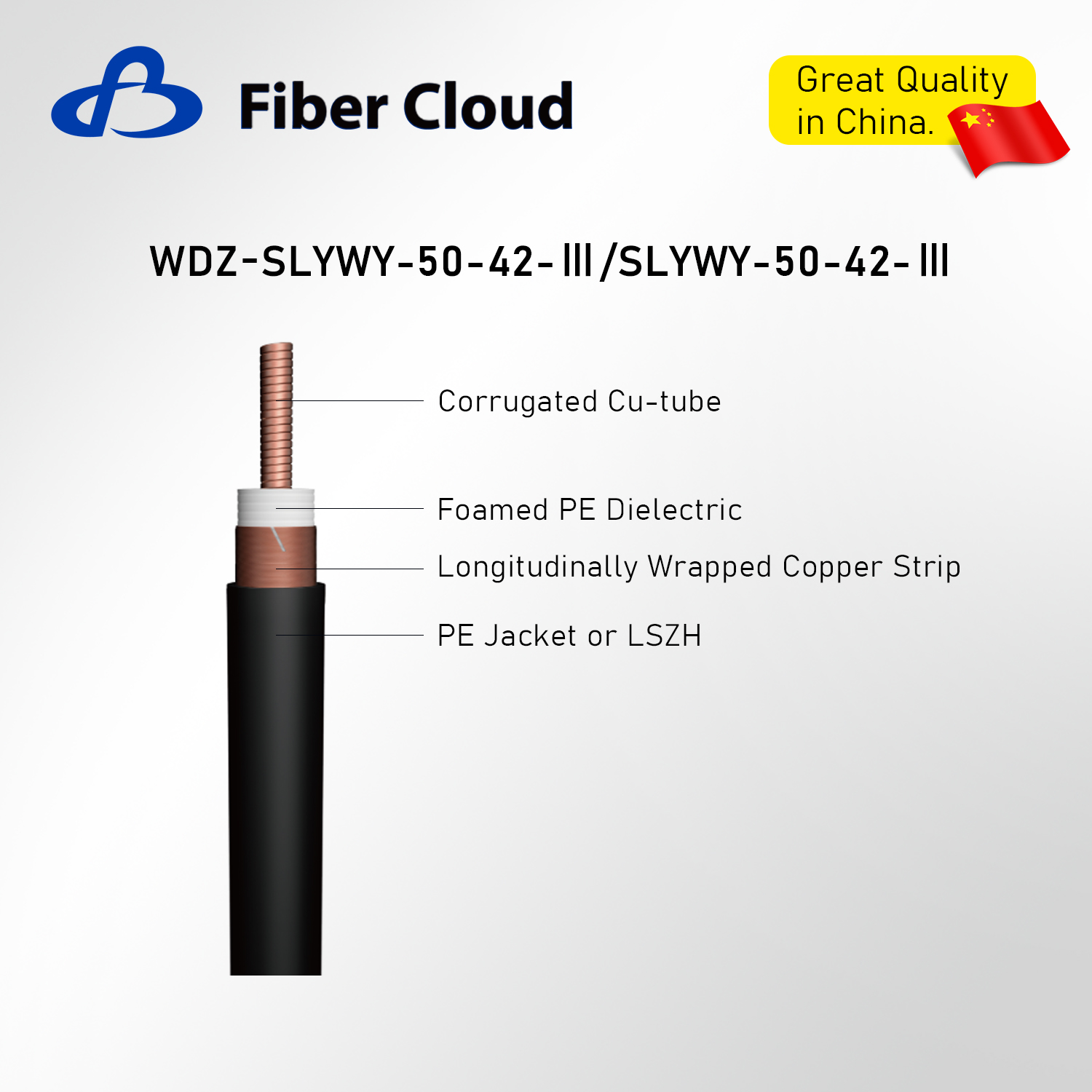

| 1 5/8" Radiating Type Leaky Coaxial Cable | 17.6 mm | 43.0 mm | 43.6 mm | 47.5 mm |
| 1 5/8" Radiating Type Leaky Coaxial Cable (Train System Ⅲ Type) | 17.6 mm | 43.0 mm | 43.6 mm | 47.5 mm |
