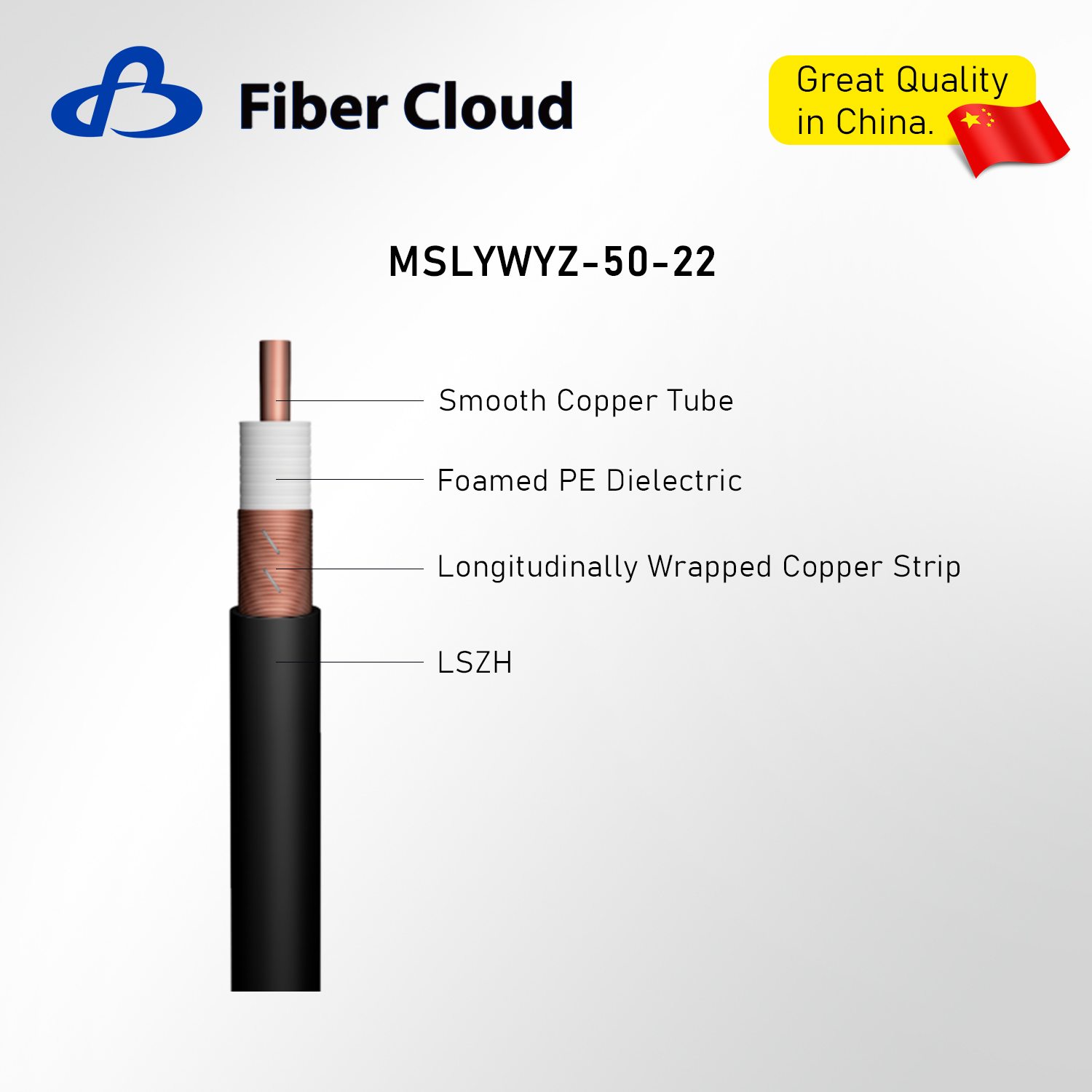

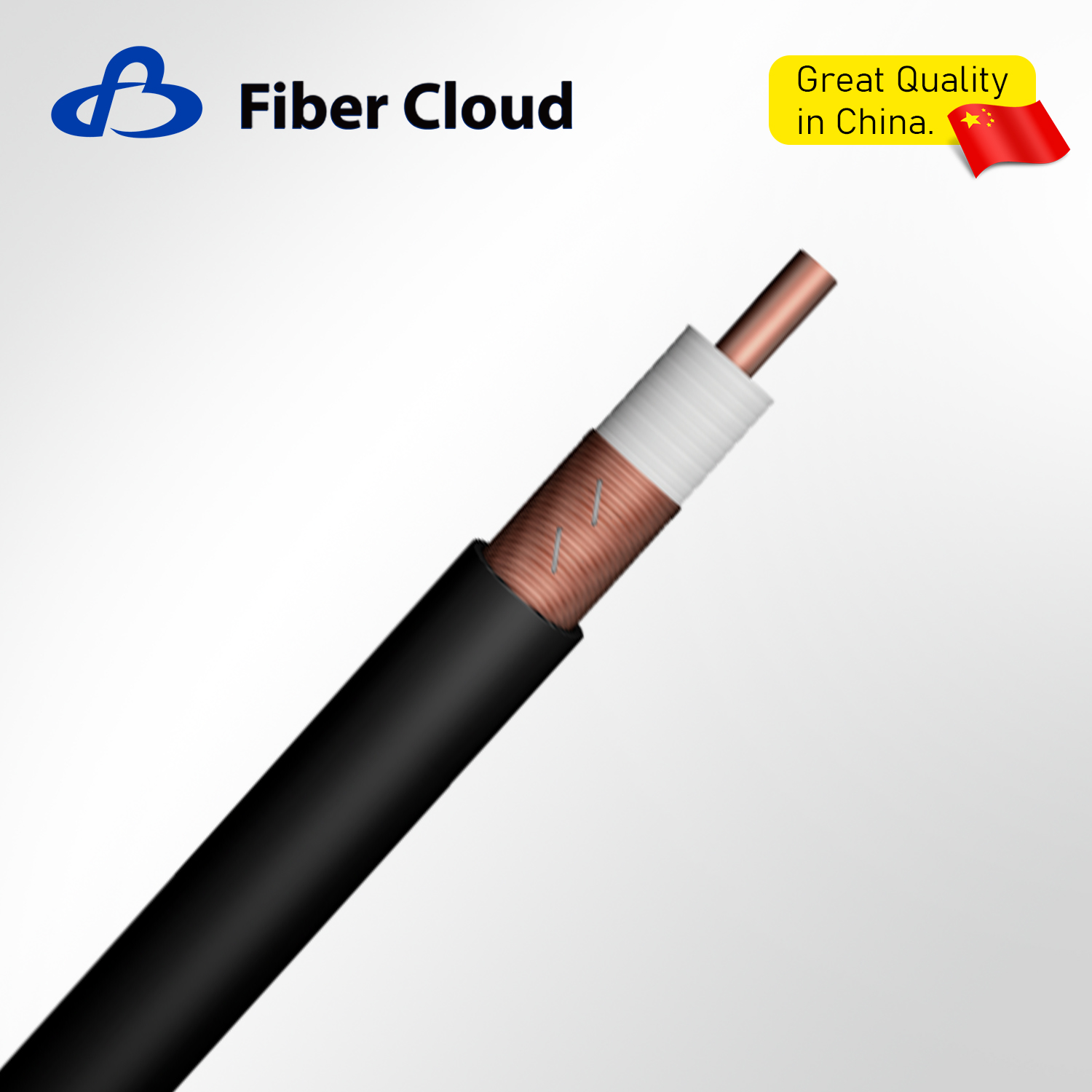

| Inner Conductor | Dielectric | Outer Conductor | Jacket |
| 7/8" Radiating Type Leaky Coaxial Cable（M/H Band） | 9.0 mm | 23.2 mm | 23.5 mm | 27.5 mm |
| 7/8" Radiating Type Leaky Coaxial Cable（HK Band） | 9.0 mm | 23.2 mm | 23.5 mm | 27.5 mm |
| 1/2" Radiating Type Leaky Coaxial Cable（H Band） | 4.8 mm | 12.2 mm | 13.2 mm | 15.8 mm |
| 1 1/4" Radiating Type Leaky Coaxial Cable（M/HBand） | 13.1 mm | 33.0 mm | 33.5 mm | 37.0 mm |
| 1 1/4" Radiating Type Leaky Coaxial Cable（HK Band） | 13.1 mm | 33.0 mm | 33.5 mm | 37.0 mm |
| 1 1/4”Radiating Type Leaky Coaxial Cable (L Band) | 13.1 mm | 33.0 mm | 33.5 mm | 37.0 mm |
| 1/2" Radiating Type Le akage Cable For Coal Mine | 4.8 mm | 12.5 mm | 13.1 mm | 15.6 mm |
| 7/8" Radiating Type Leakage Cable For Coal Mine | 9.0 mm | 22.8 mm | 23.5 mm | 27.2 mm |
| 1 1/4" Radiating Type Leaky Coaxial Cable (Horizontal polarization) | 13.1 mm | 33.0 mm | 33.5 mm | 37.0 mm |
| 1 5/8" Radiating Type Leaky Coaxial Cable (Z Band) | 17.6 mm | 43.0 mm | 43.6 mm | 47.5 mm |
| 1 5/8" Radiating Type Leaky Coaxial Cable | 17.6 mm | 43.0 mm | 43.6 mm | 47.5 mm |
| 1 5/8" Radiating Type Leaky Coaxial Cable (Train System Ⅲ Type) | 17.6 mm | 43.0 mm | 43.6 mm | 47.5 mm |
Electrical Characteristics at +20℃
Characteristic Impedance | Velocity | Capacitance | Insulation Resistance | Insulation Voltage | Jacket Spark Test Voltage |
| 50 ± 2 Ω | 0.88 | 76 pF/m | ＞5000 MΩ.km | 10000 V | 8000 V |
Frequency (MHz) | 75~200 | 698-960 | 1700-1900 | 1920-2025 | 2110-2170 | 2300-2700 | 3300-3700 |
| VSWR (Max) | 1.30 | 1.30 | 1.40 | 1.40 |
Attenuation and Coupling Loss
Frequency (MHz) | Attenuation dB/100m(+20℃) | Coupling Loss (95%) dB |
75 | 1.4 | 75 |
100 | 1.5 | 80 |
150 | 1.7 | 85 |
700 | 3.7 | 85 |
800 | 4.2 | 82 |
900 | 4.6 | 80 |
1800 | 7.6 | 74 |
1900 | 8.0 | 74 |
2000 | 8.4 | 73 |
2100 | 8.6 | 72 |
2400 | 9.5 | 72 |
2600 | 10.5 | 70 |
2700 | 11.9 | 70 |
3300 | 12.8 | 70 |
3400 | 14.0 | 70 |
3500 | 15.0 | 70 |
3600 | 17.2 | 70 |
3700 | 19.8 | 74 |
Note: Attenuation tolerance 5%; Coupling Loss tolerance ±5dB
Mechanical Characteristics
| Maximum Pulling Force | Single Bending | Repeated Bending | Operating Temperature Range | Installation Temperature Range |
| 1200N | 250 mm | 300 mm | -20℃ to +70℃ | -20℃ |
