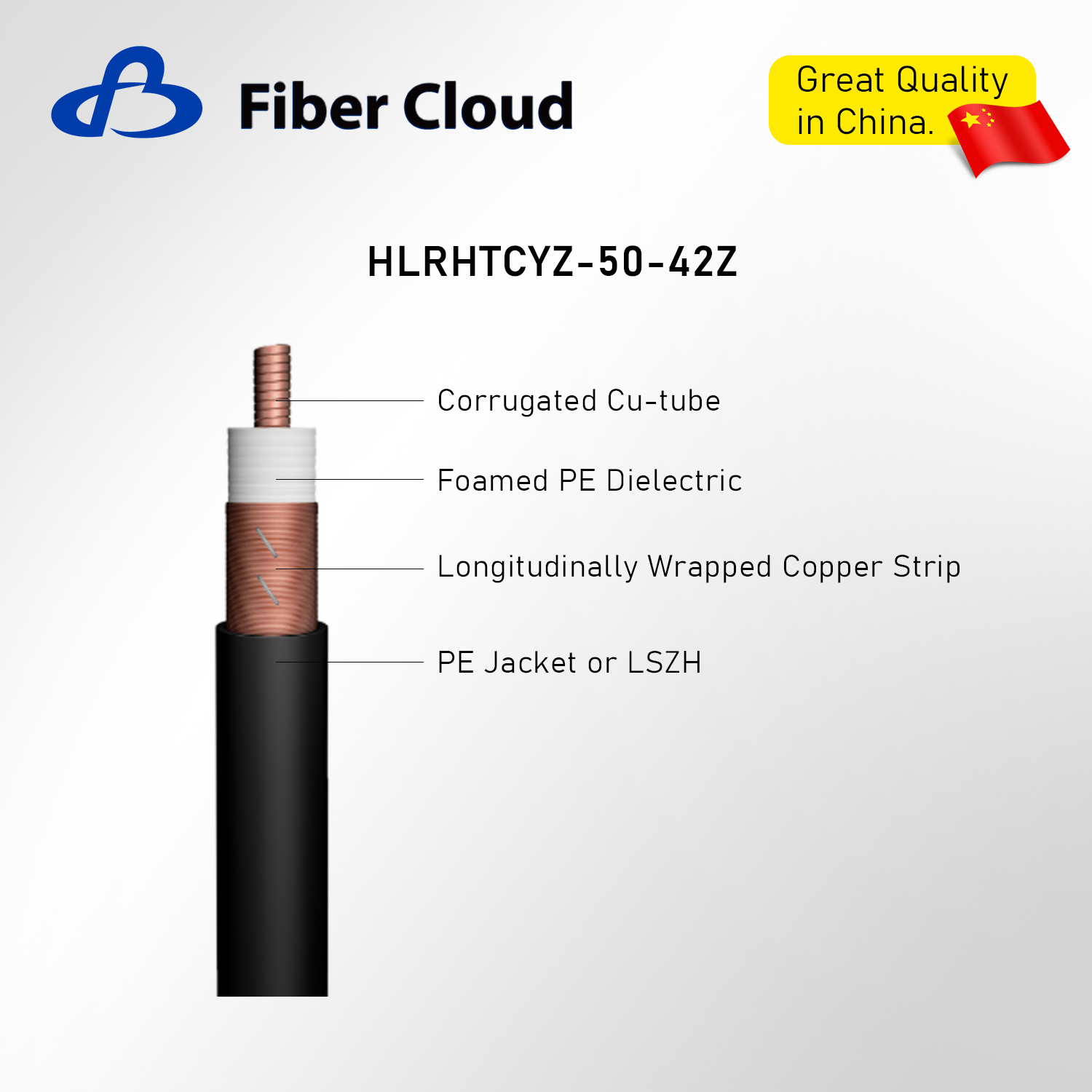

1 5/8" Radiating Type Leaky Coaxial Cable（Z Band）

Leaky coaxial cable has dual functions of radio frequency transmission and antenna radiating and receivingThe application occasions are mainly the coverage of metro, railway tunnel and highway tunnel with limitedwireless transmission. And the indoor coverage of large buildings.

Availability:



Inquire Add to Basket

Product Description

	Inner Conductor	Dielectric	Outer Conductor	Jacket
7/8" Radiating Type Leaky Coaxial Cable（M/H Band）	9.0 mm	23.2 mm	23.5 mm	27.5 mm
7/8" Radiating Type Leaky Coaxial Cable（HK Band）	9.0 mm	23.2 mm	23.5 mm	27.5 mm
1/2" Radiating Type Leaky Coaxial Cable（H Band）	4.8 mm	12.2 mm	13.2 mm	15.8 mm
1 1/4" Radiating Type Leaky Coaxial Cable（M/HBand）	13.1 mm	33.0 mm	33.5 mm	37.0 mm
1 1/4" Radiating Type Leaky Coaxial Cable（HK Band）	13.1 mm	33.0 mm	33.5 mm	37.0 mm
1 1/4”Radiating Type Leaky Coaxial Cable (L Band)	13.1 mm	33.0 mm	33.5 mm	37.0 mm
1/2" Radiating Type Le akage Cable For Coal Mine	4.8 mm	12.5 mm	13.1 mm	15.6 mm
7/8" Radiating Type Leakage Cable For Coal Mine	9.0 mm	22.8 mm	23.5 mm	27.2 mm
1 1/4" Radiating Type Leaky Coaxial Cable (Horizontal polarization)	13.1 mm	33.0 mm	33.5 mm	37.0 mm
1 5/8" Radiating Type Leaky Coaxial Cable (Z Band)	17.6 mm	43.0 mm	43.6 mm	47.5 mm
1 5/8" Radiating Type Leaky Coaxial Cable	17.6 mm	43.0 mm	43.6 mm	47.5 mm
1 5/8" Radiating Type Leaky Coaxial Cable (Train System Ⅲ Type)	17.6 mm	43.0 mm	43.6 mm	47.5 mm

Electrical Characteristics at +20℃

Characteristic Impedance	Velocity	Capacitance	Insulation Resistance	Insulation Voltage	Jacket Spark Test Voltage
50 ± 2 Ω	0.88	76 pF/m	＞10000 MΩ.km	15000 V	10000 V

VSWR

Frequency (MHz)	75-150	330-480	680-700	806-934	1350-1450	1785-1805
VSWR (Max)	1.30

Attenuation and Coupling Loss

Frequency (MHz)	Attenuation dB/100m(+20℃) Max	Coupling Loss (95%) dB
75	0.60	70
100	0.70	77
150	0.85	81
350	1.30	80
450	1.55	78
700	2.00	77
800	2.15	72
900	2.30	70
960	2.40	72
1400	3.20	66
1800	4.00	66
