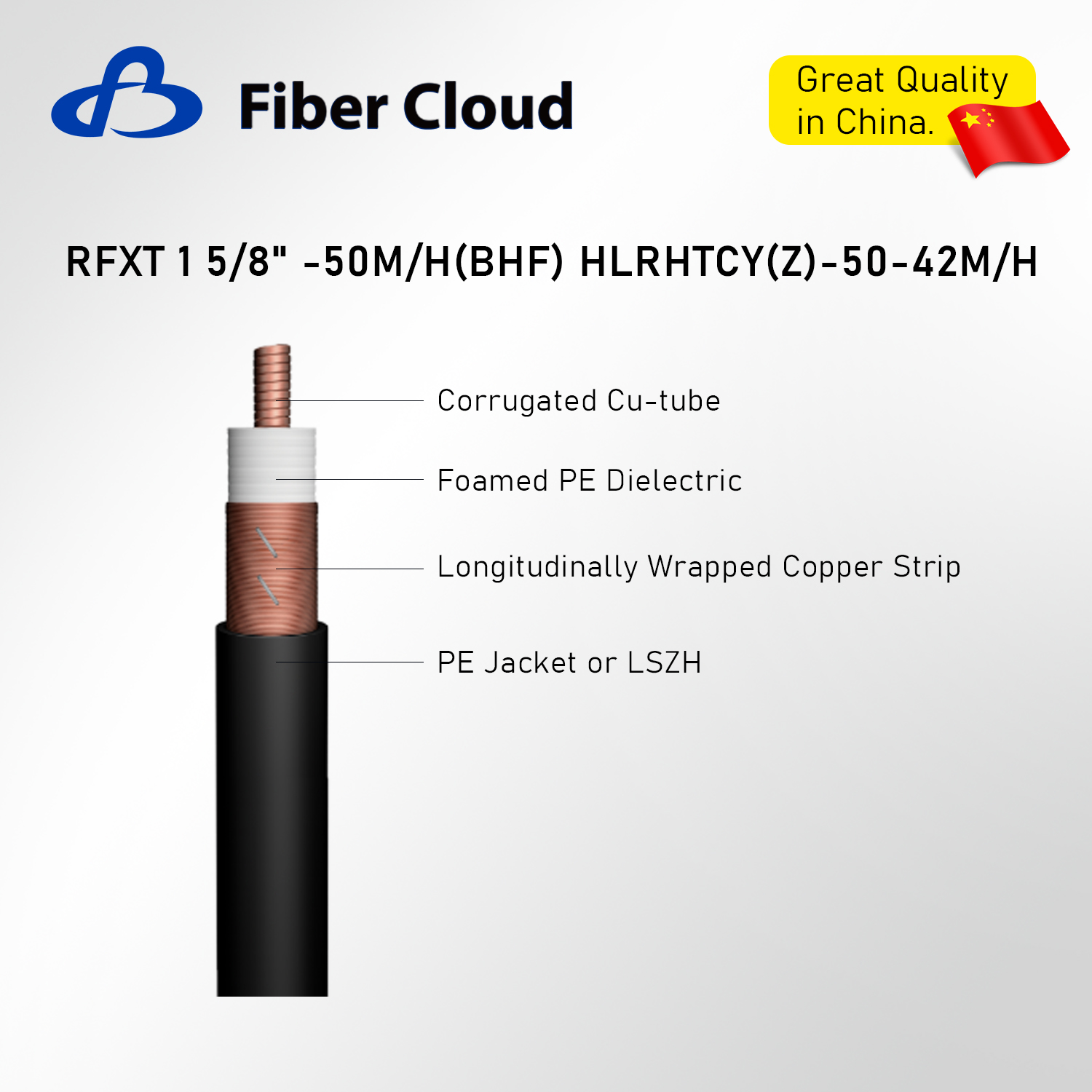

1 5/8" Radiating Type Leaky Coaxial Cable

Leaky coaxial cable has dual functions of radio frequency transmission and antenna radiating and receivingThe application occasions are mainly the coverage of metro, railway tunnel and highway tunnel with limitedwireless transmission. And the indoor coverage of large buildings.

Availability:



Inquire Add to Basket

Product Description

	Inner Conductor	Dielectric	Outer Conductor	Jacket
7/8" Radiating Type Leaky Coaxial Cable（M/H Band）	9.0 mm	23.2 mm	23.5 mm	27.5 mm
7/8" Radiating Type Leaky Coaxial Cable（HK Band）	9.0 mm	23.2 mm	23.5 mm	27.5 mm
1/2" Radiating Type Leaky Coaxial Cable（H Band）	4.8 mm	12.2 mm	13.2 mm	15.8 mm
1 1/4" Radiating Type Leaky Coaxial Cable（M/HBand）	13.1 mm	33.0 mm	33.5 mm	37.0 mm
1 1/4" Radiating Type Leaky Coaxial Cable（HK Band）	13.1 mm	33.0 mm	33.5 mm	37.0 mm
1 1/4”Radiating Type Leaky Coaxial Cable (L Band)	13.1 mm	33.0 mm	33.5 mm	37.0 mm
1/2" Radiating Type Le akage Cable For Coal Mine	4.8 mm	12.5 mm	13.1 mm	15.6 mm
7/8" Radiating Type Leakage Cable For Coal Mine	9.0 mm	22.8 mm	23.5 mm	27.2 mm
1 1/4" Radiating Type Leaky Coaxial Cable (Horizontal polarization)	13.1 mm	33.0 mm	33.5 mm	37.0 mm
1 5/8" Radiating Type Leaky Coaxial Cable (Z Band)	17.6 mm	43.0 mm	43.6 mm	47.5 mm
1 5/8" Radiating Type Leaky Coaxial Cable	17.6 mm	43.0 mm	43.6 mm	47.5 mm
1 5/8" Radiating Type Leaky Coaxial Cable (Train System Ⅲ Type)	17.6 mm	43.0 mm	43.6 mm	47.5 mm

Electrical Characteristics at +20℃

Characteristic Impedance	Velocity	Capacitance	Insulation Resistance	Insulation Voltage	Jacket Spark Test Voltage
50 ± 2 Ω	0.88	76 pF/m	＞10000 MΩ.km	15000 V	10000 V

VSWR

M Band	Frequency (MHz)	75-200	320-480	680-700	790-960
M Band	VSWR (Max)	1.30

H Band	Frequency (MHz)	698-960	1700-1900	1920-2025	2110-2200	2300-2400	2515-2675
	VSWR (Max)	1.30		1.40

Attenuation and Coupling Loss

M Band	Frequency (MHz)	75	100	150	350	450	700	800	900	960
	Attenuation dB/100m(+20℃)	0.60	0.70	0.85	1.30	1.50	2.10	2.30	2.50	2.70
	Coupling Loss (95%) dB	68	72	77	70	69	66	66	65	64

H Band	Frequency (MHz)	700	800	900	960	1800	1900	2000	2200	2400	2600	2700
	Attenuation dB/100m(+20℃)	1.85	2.05	2.15	2.30	3.60	3.80	4.00	4.50	5.10	5.90	6.40
	Coupling Loss (95%) dB	77	75	74	74	66	66	66	65	65	64	64

Note: Attenuation tolerance 5%; Coupling Loss tolerance ±5dB

Mechanical Characteristics

Weight

Maximum Pulling Force

Single Bending

Repeated Bending

Operating Temperature Range

Installation Temperature Range

830kg/km

2500N

400 mm

500 mm

-55℃ to +85℃

PE: -40℃

LSZH: -20℃

Standard Test Conditions

Test Methods For Flame Retardancy	Test Methods For Smoke Index	Test Methods For Toxicity Index	Test Methods For Attenuation	Test Methods For Coupling Loss
IEC 60332-1	IEC 61034	IEC 60754-1/IEC 60754-2	IEC 61196-4	IEC 61196-4
