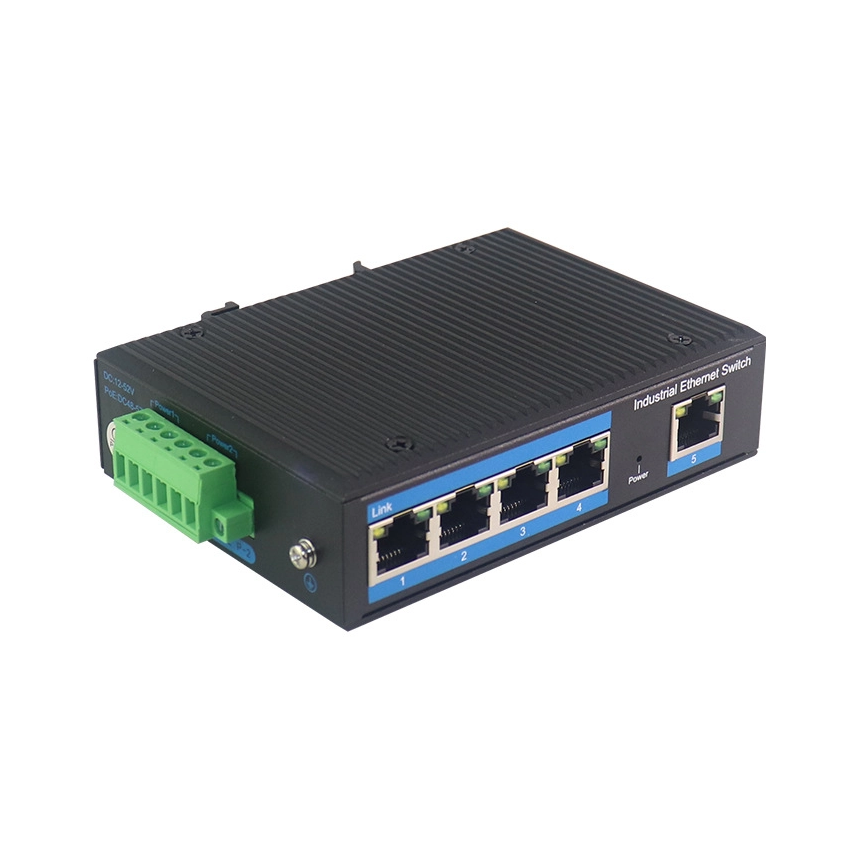

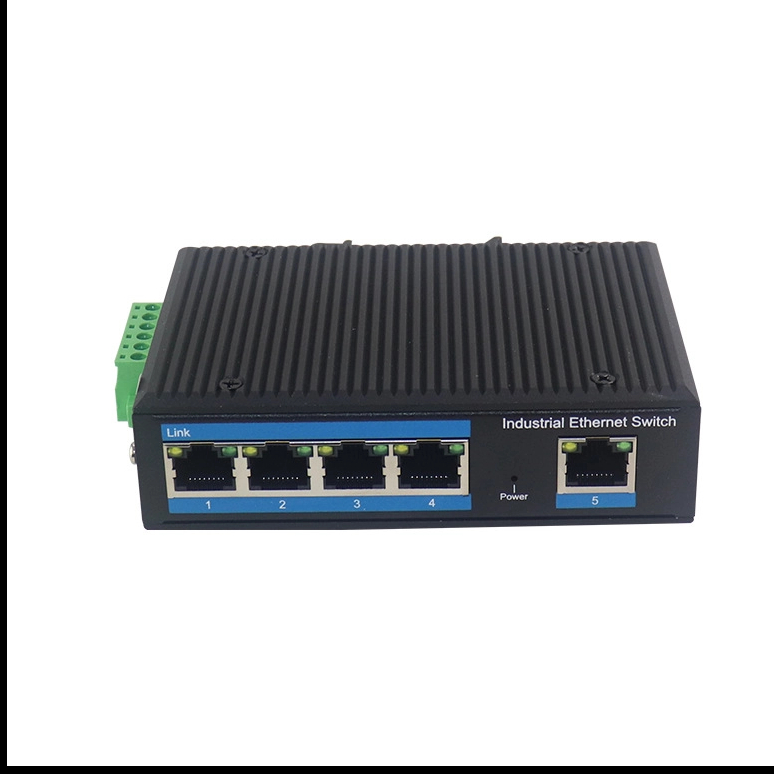

Gigabit 5-port Industrial Network Switch Unmanaged 10/100M/1000M Industrial Fiber Switch

The NST-GY-GZ511 is a compact industrial-grade Ethernet switch designed for reliable network deployment in harsh environments. It features five Gigabit Ethernet ports with IEEE 802.3at/af PoE+ support, delivering up to 30W per port to power connected devices such as IP cameras and wireless access points. Built with a robust fanless aluminum enclosure and IP40 protection, it operates reliably across an extensive temperature range from -40°C to 85°C. Supporting wide DC input voltage (12-57V) and DIN-rail mounting, this switch ensures stable network connectivity for industrial automation, security surveillance, and transportation infrastructure applications.

Availability:



Inquire Add to Basket

Model:
NST-GY-GZ511

Product Description

Parameter	Specification
Product Name	Industrial Gigabit 5-Port Switch
Model Number	NST-GY-GZ511
Networking Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3at
MTBF	>100,000 hours
Dimensions (L×W×H)	155mm × 115mm × 50mm
Power Supply	Input Voltage: DC 12-48V (Non-PoE), DC 48-57V (PoE) Per Port: Auto-sensing IEEE 802.3at/af, ≤30W Max Default Pinout: 1/2+; 3/6- Connector: 6-position 5.08mm Industrial Terminal Block
Environmental Specs	Operating Temp: -40°C to +85°C Storage Temp: -50°C to +100°C Operating/Storage Humidity: 5% to 95% (Non-condensing)
Transmission Distance	Twisted Pair: 100m (using CAT5/CAT5e cable)
Mechanical Properties	Housing: Aluminum alloy, IP40 rated Cooling: Fanless (natural convection) Mounting: DIN-rail mountable Weight: 425g (with packaging, excluding external power adapter)
