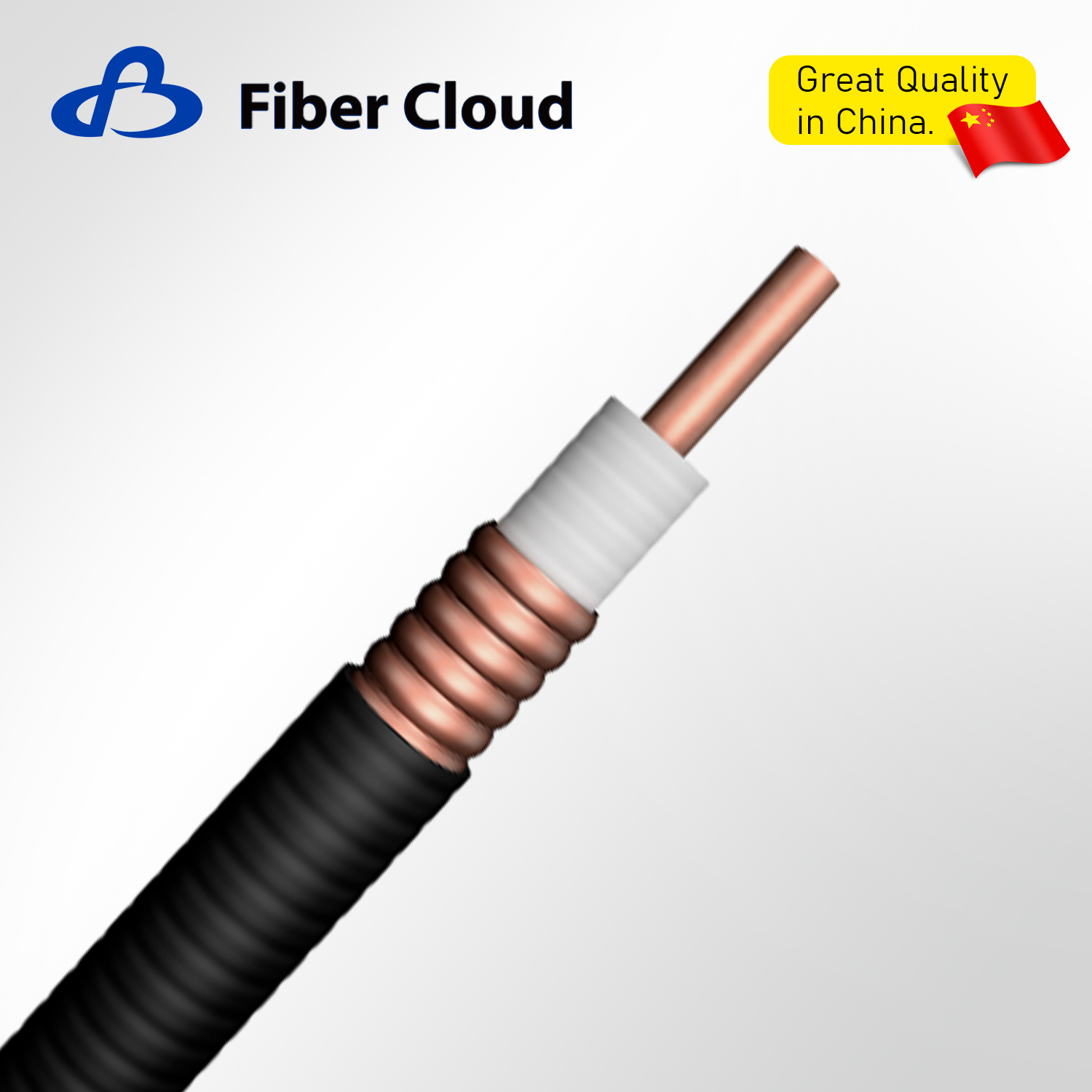

| Availability: | |
|---|---|
Inner Conductor | Dielectric | Outer Conductor | Jacket | |
| RF 1/2" RF Coaxial Cable | 4.80mm | 12.10mm | 13.90mm | 16.00mm |
RFF 1/2" Superflexible RF Coaxial Cable | 3.55mm | 9.00mm | 11.90mm | 13.50mm |
RFF 1/3" Superflexible RF Coaxial Cable | 2.65mm | 6.80mm | 7.60mm | 8.80mm |
RF 7/8" RF Coaxial Cable | 9.00mm | 22.20mm | 24.90mm | 27.50mm |
RFA 7/8" RF Coaxial Cable | 9.40mm | 22.50mm | 25.40mm | 27.80mm |

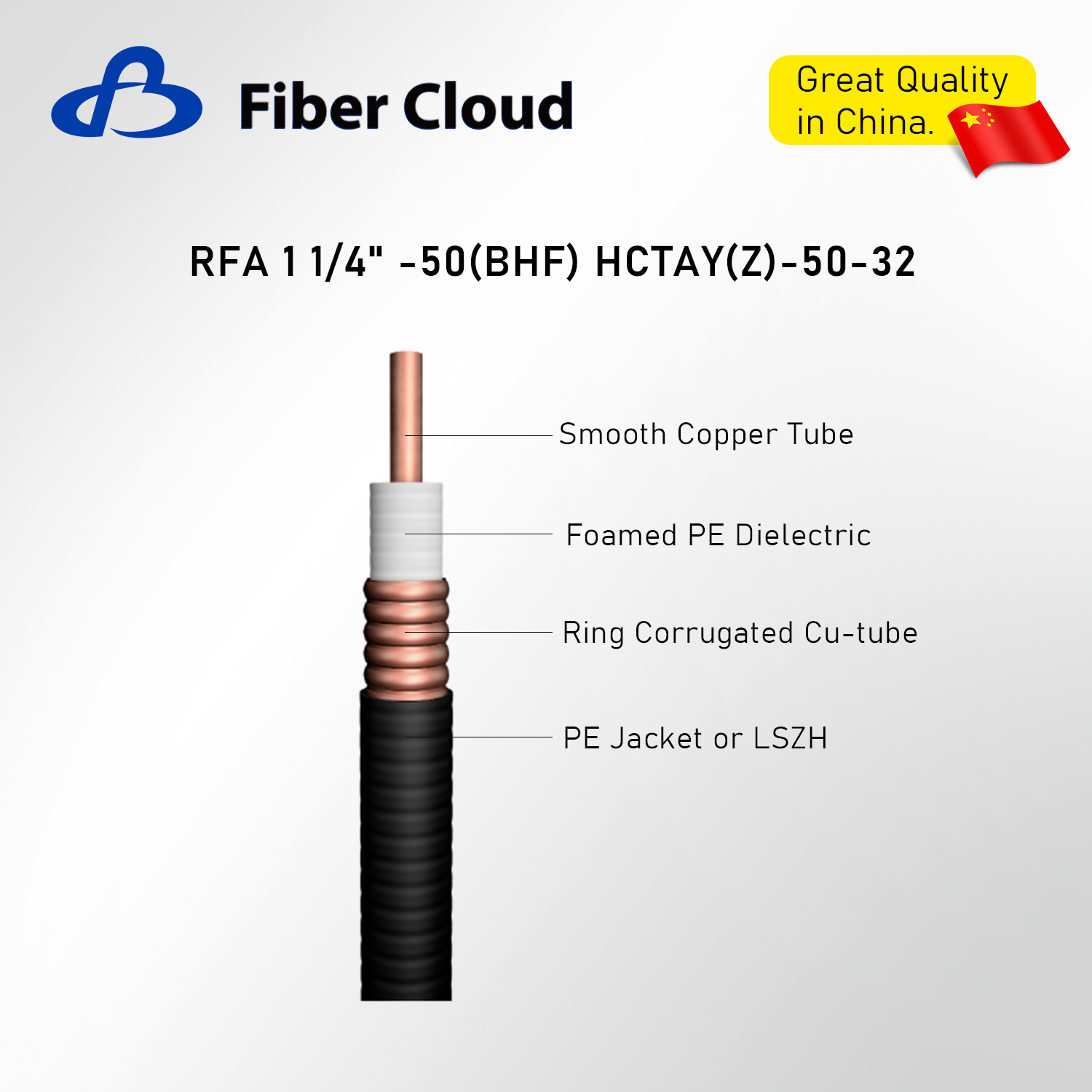

RFA 1 1/4" RF Coaxial Cable | 13.00mm | 32.20mm | 35.80mm | 39.00mm |
RFA 1 5/8" RF Coaxial Cable | 17.60mm | 42.20mm | 46.30mm | 50.00mm |
Electrical Characteristics at +20℃
| Characteristic impedance | 50 ± 1Ω |
| Return loss for | |
| 320 ‒ 480 MHz | As specified by customer |
700 ‒ 960 MHz | As specified by customer |
1700 ‒ 1880 MHz | As specified by customer |
1880 ‒ 2180 MHz | As specified by customer |
2300 ‒ 3000 MHz | As specified by customer |
3300 ‒ 3700 MHz | As specified by customer |
Other bands also available on request | |
| Attenuation | See table |
Velocity factor | 0.88 |
Capacitance | 76 pF/m |
Maximum frequency | 3500 MHz |
Max power rating | See table |
Peak RF voltage rating | 4.6 kV |
Peak power rating | 211 kW |
| Frequency(MHz) | 10 | 30 | 50 | 100 | 200 | 300 | 400 | 450 | 500 | 700 | 800 | 900 | 950 | 1000 | |
| Attenuation Ambient temperature +20℃dB/100m | Typical | 0.25 | 0.439 | 0.571 | 0.819 | 1.18 | 1.47 | 1.72 | 1.83 | 1.94 | 2.34 | 2.53 | 2.70 | 2.79 | 2.87 |
| Power rating ambient +40℃ inner conductor +100℃KW | 41 | 23 | 18 | 12 | 8.5 | 6.8 | 5.8 | 5.4 | 5.1 | 4.2 | 3.9 | 3.7 | 3.6 | 3.5 | |
| Frequency(MHz) | 1200 | 1400 | 1600 | 1800 | 1900 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | 3300 | 3500 | 3700 | |
| Attenuation Ambient temperature +20℃dB/100m | Typical | 3.18 | 3.48 | 3.76 | 4.03 | 4.16 | 4.29 | 4.54 | 4.79 | 5.02 | 5.26 | 5.48 | 5.84 | 6.05 | 6.40 |
| Power rating ambient +40℃ inner conductor +100℃KW | 3.1 | 2.8 | 2.6 | 2.4 | 2.4 | 2.3 | 2.2 | 2.0 | 1.9 | 1.9 | 1.8 | 1.7 | 1.6 | 1.5 | |
Weight | Crush Resistance | Maximum Pulling Force | Single Bending | Repeated Bending | Operating Temperature Range | Min. installation temperature |
| 900kg/km | 24N/mm | 2500N | 200 mm | 350 mm | -55℃ to +80℃ | See Jacketing Options |
Type | Jacket | IEC60754-1/-2 halogenfree, noncorrosive | IEC61034 low smoke emission | IEC60332-1/3C fire retardant | Min. installation temperature |
| HCTAY-50-32 | Black polyethylene | Yes | No | No | -40℃ |
HCTAYZ-50-32 | Black halogen free fire retardant thermoplastic | Yes | Yes | Yes | -20℃ |
