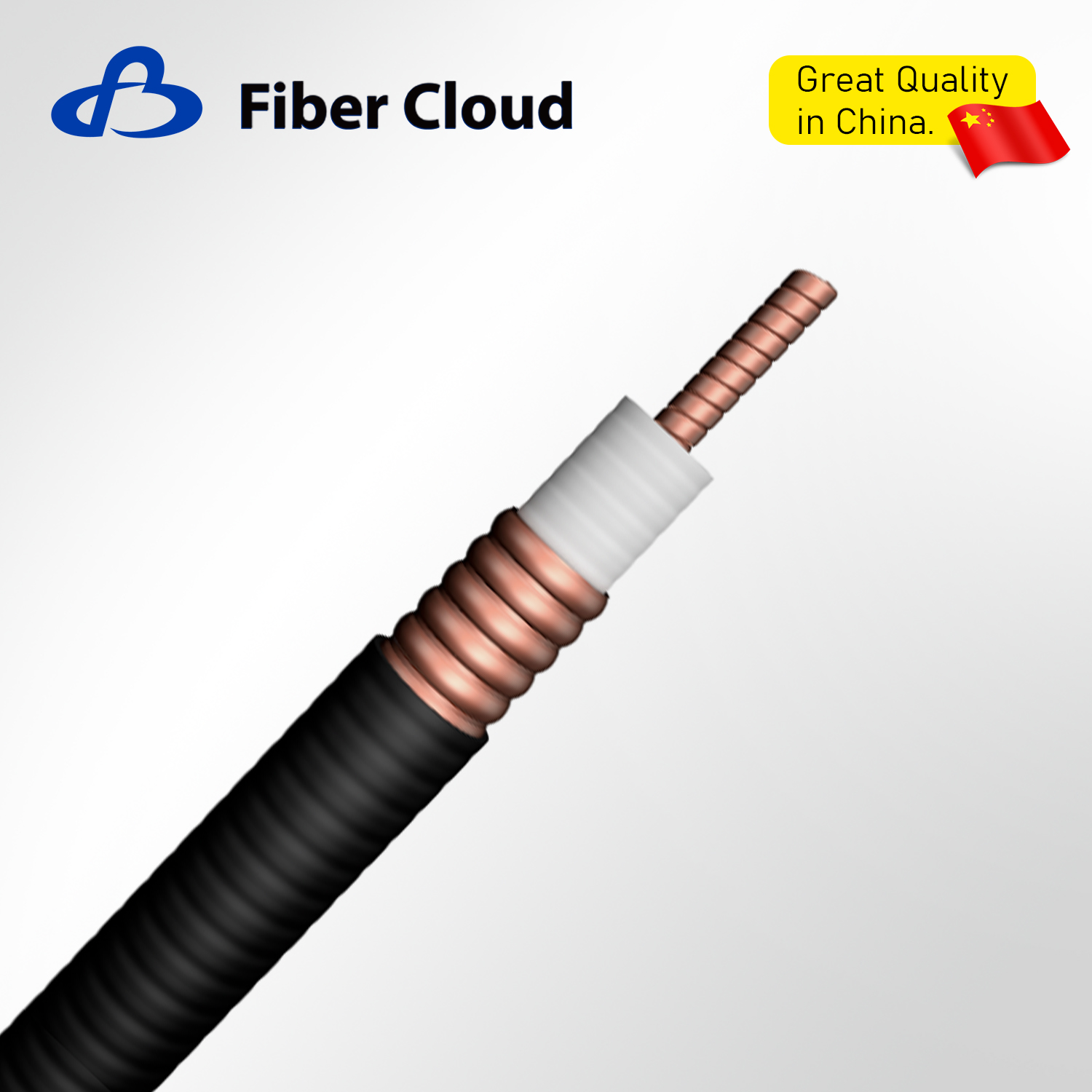

| Availability: | |
|---|---|
Inner Conductor | Dielectric | Outer Conductor | Jacket | |
| RF 1/2" RF Coaxial Cable | 4.80mm | 12.10mm | 13.90mm | 16.00mm |
RFF 1/2" Superflexible RF Coaxial Cable | 3.55mm | 9.00mm | 11.90mm | 13.50mm |
RFF 1/3" Superflexible RF Coaxial Cable | 2.65mm | 6.80mm | 7.60mm | 8.80mm |
RF 7/8" RF Coaxial Cable | 9.00mm | 22.20mm | 24.90mm | 27.50mm |
RFA 7/8" RF Coaxial Cable | 9.40mm | 22.50mm | 25.40mm | 27.80mm |
RFA 1 1/4" RF Coaxial Cable | 13.00mm | 32.20mm | 35.80mm | 39.00mm |

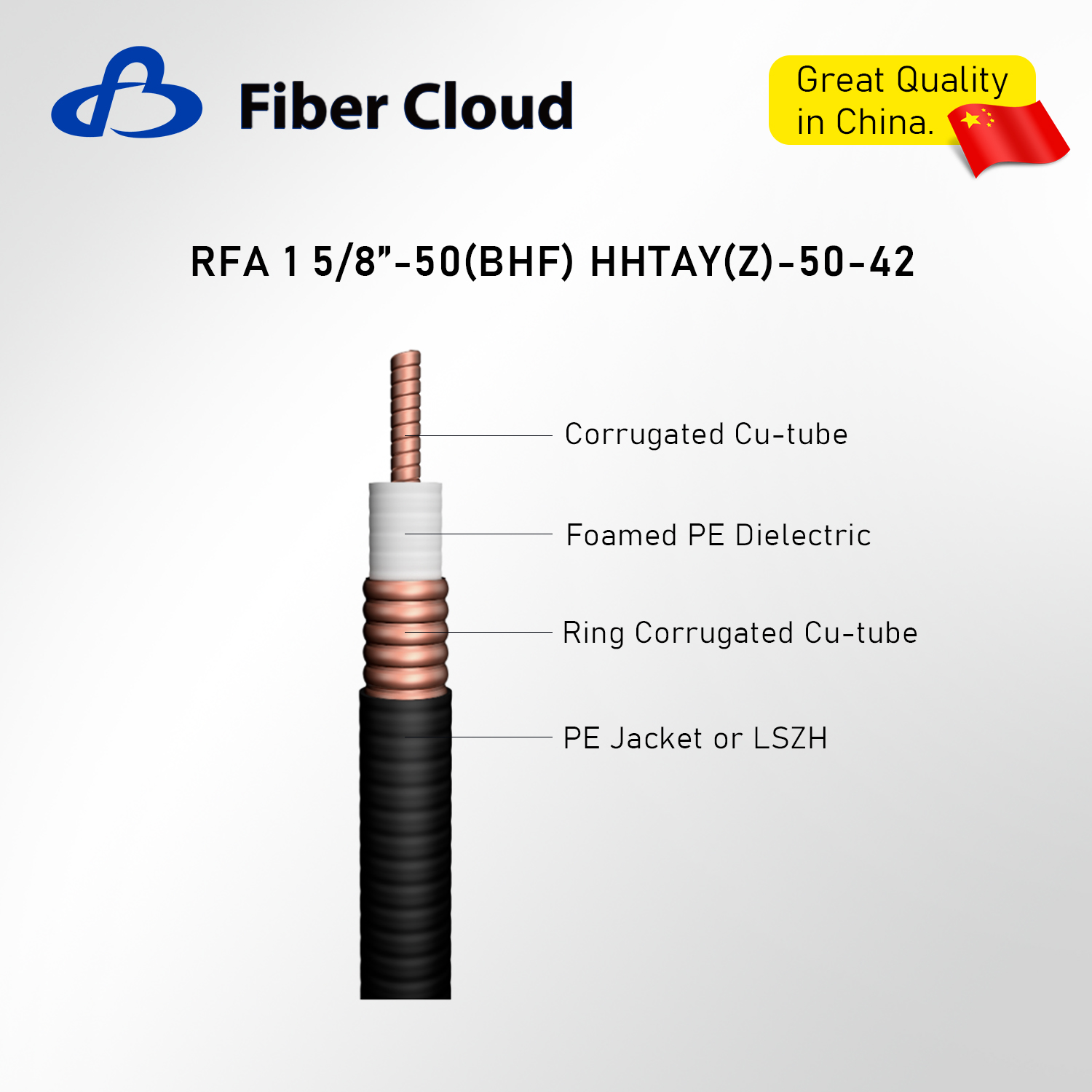

RFA 1 5/8" RF Coaxial Cable | 17.60mm | 42.20mm | 46.30mm | 50.00mm |
Electrical Characteristics at +20℃
| Characteristic impedance | 50 ± 1Ω |
| Return loss for | |
| 320 ‒ 480 MHz | As specified by customer |
700 ‒ 960 MHz | As specified by customer |
1700 ‒ 1880 MHz | As specified by customer |
1880 ‒ 2180 MHz | As specified by customer |
2300 ‒ 2700 MHz | As specified by customer |
Other bands also available on request | |
| Attenuation | See table |
Velocity factor | 0.88 |
Capacitance | 76 pF/m |
Maximum frequency | 2800 MHz |
Max power rating | See table |
Peak RF voltage rating | 5.6 kV |
Peak power rating | 314 kW |
| Frequency(MHz) | 10 | 30 | 50 | 100 | 200 | 300 | 400 | 450 | 500 | 600 | 700 | 800 | 850 | |
| Attenuation Ambient temperature +20℃dB/100m | Typical | 0.197 | 0.346 | 0.452 | 0.653 | 0.950 | 1.19 | 1.40 | 1.49 | 1.59 | 1.76 | 1.93 | 2.08 | 2.16 |
| Power rating ambient +40℃ inner conductor +100℃KW | 57 | 32 | 25 | 17 | 12 | 9.3 | 7.9 | 7.4 | 7.0 | 6.2 | 5.7 | 5.3 | 5.1 | |
| Frequency(MHz) | 900 | 950 | 1000 | 1200 | 1400 | 1600 | 1800 | 1900 | 2000 | 2200 | 2400 | 2600 | 2800 | |
| Attenuation Ambient temperature +20℃dB/100m | Typical | 2.23 | 2.30 | 2.38 | 2.65 | 2.91 | 3.16 | 3.40 | 3.51 | 3.63 | 3.85 | 4.07 | 4.28 | 4.50 |
| Power rating ambient +40℃ inner conductor +100℃KW | 4.9 | 4.8 | 4.6 | 4.1 | 3.8 | 3.5 | 3.2 | 3.1 | 3.0 | 2.8 | 2.7 | 2.5 | 2.4 | |
Weight | Crush Resistance | Maximum Pulling Force | Single Bending | Repeated Bending | Operating Temperature Range | Min. installation temperatur |
| 1160kg/km | 20N/mm | 3000N | 250 mm | 500 mm | -55℃ to +80℃ | See Jacketing Options |
Type | Jacket | IEC60754-1/-2 halogenfree, noncorrosiven | IEC61034 low smoke emission | IEC60332-1/3C fire retardant | Min. installation temperature |
| HHTAY-50-42 | Black polyethylene | Yes | No | No | -40℃ |
HHTAYZ-50-42 | Black halogen free fire retardant thermoplastic | Yes | Yes | Yes | -20℃ |
