SHB13-125-A SHB13-125-B
Product Application
Fiber-optic current transformers based on the Faraday effect
Other DC/AC current sensing systems
Switching equipment
Other polarization sensing systems
Product Specifications
Item | Unit | Index | |
Product Model | / | SHB13-125-A | SHB13-125-B |

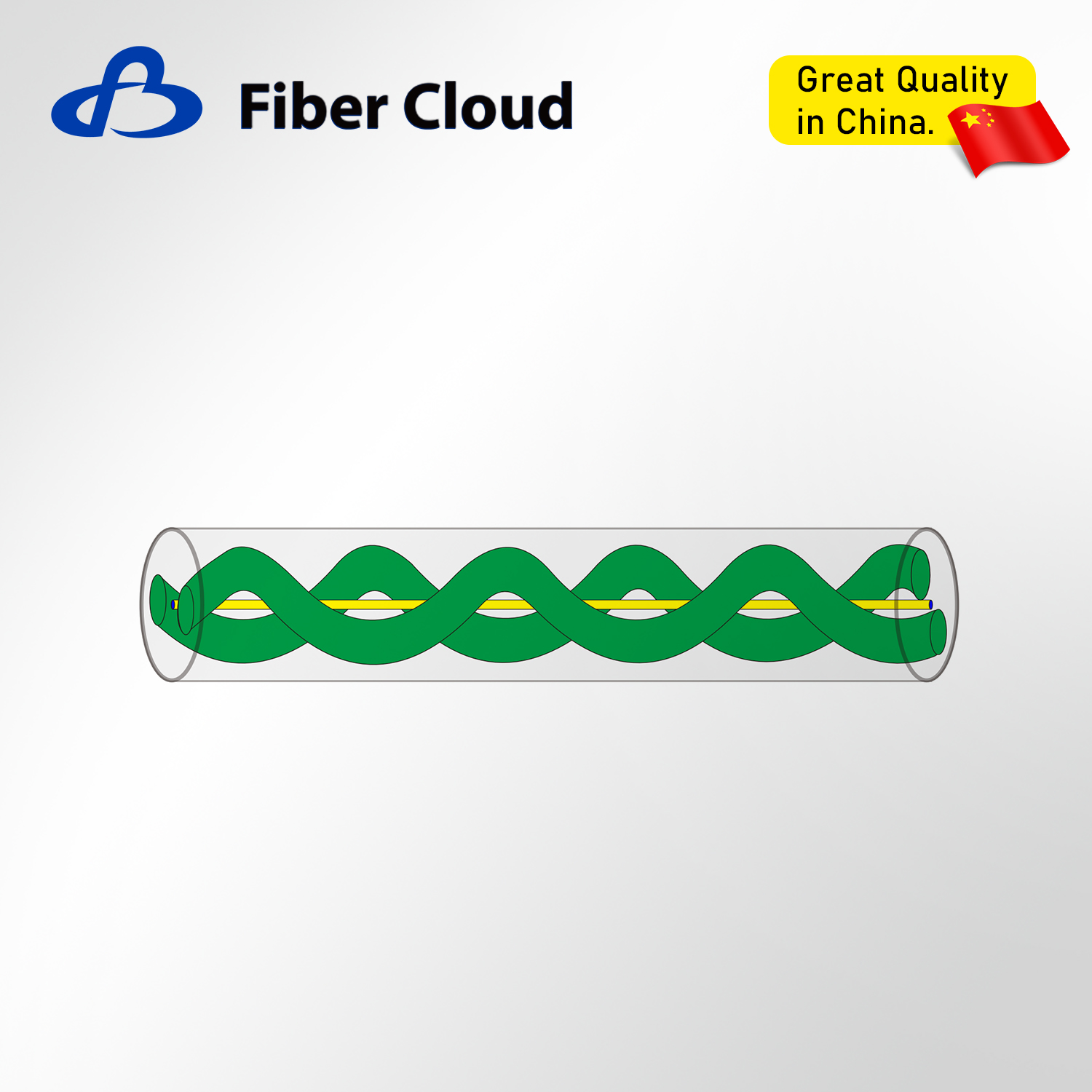

Structure Type | / | Oval core | Panda shape |
Optical characteristics | |||
Operating Wavelength | nm | 1310 | 1310 |
Cutoff Wavelength | nm | 1100~1290 | 1100~1290 |
Mode Field Diameter | μm | 6.5±1.0 | 6.5±1.0 |
Attenuation | dB/km | ≤2.0 | ≤2.0 |
Helix Pitch | mm | 2.0~5.0 | 2.0~5.0 |
Beat Length | mm | ≤10.0 Before rotation | ≤10.0 Before rotation |
Geometric characteristics | |||
Cladding Diameter | μm | 125.0±1.0 | 125.0±1.0 |
Coating Type | / | Double-layer UV-cured acrylic resin | |
Coating Diameter | μm | 245.0±5.0 | 245.0±5.0 |
Cladding Non-Circularity | % | ≤2.0 | ≤2.0 |
Core-Clad Concentricity | μm | ≤1.0 | ≤1.0 |
Fiber Twist | tums/m | ≤1.0 | ≤1.0 |
Environmental and mechanical characteristics | |||
Operating Temperature | ℃ | -55~+85 | -55~+85 |
Screening Strength | kpsi | 100 | 100 |
Customized Messages
Fiber structure types can be customized according to customer requirements.
Fiber helix pitch can be customized according to customer requirements.
Low birefringence fiber can be customized according to customer requirements.
