Product Application
Laser fiber cladding material
Fluorine-doped capillary
Biomedical

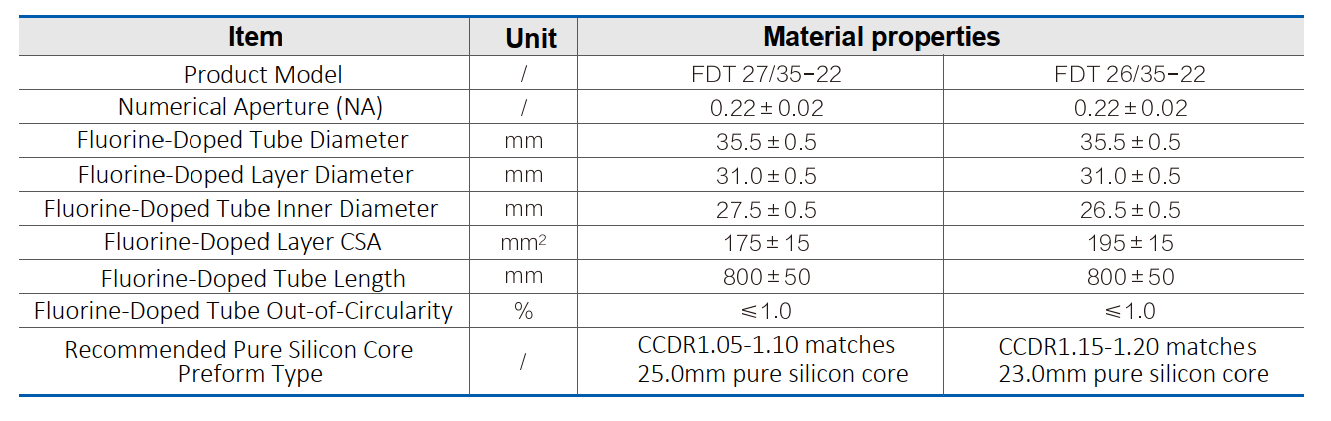

Product Specifications
| Item | Unit | Material properties |
| Product Model | / | FDT 27/35-22 | FDT 26/35-22 |
| Numerical Aperture(NA) | / | 0.22±0.02 | 0.22±0.02 |
| Fluorine-Doped Tube Diameter | mm | 35.5±0.5 | 35.5±0.5 |

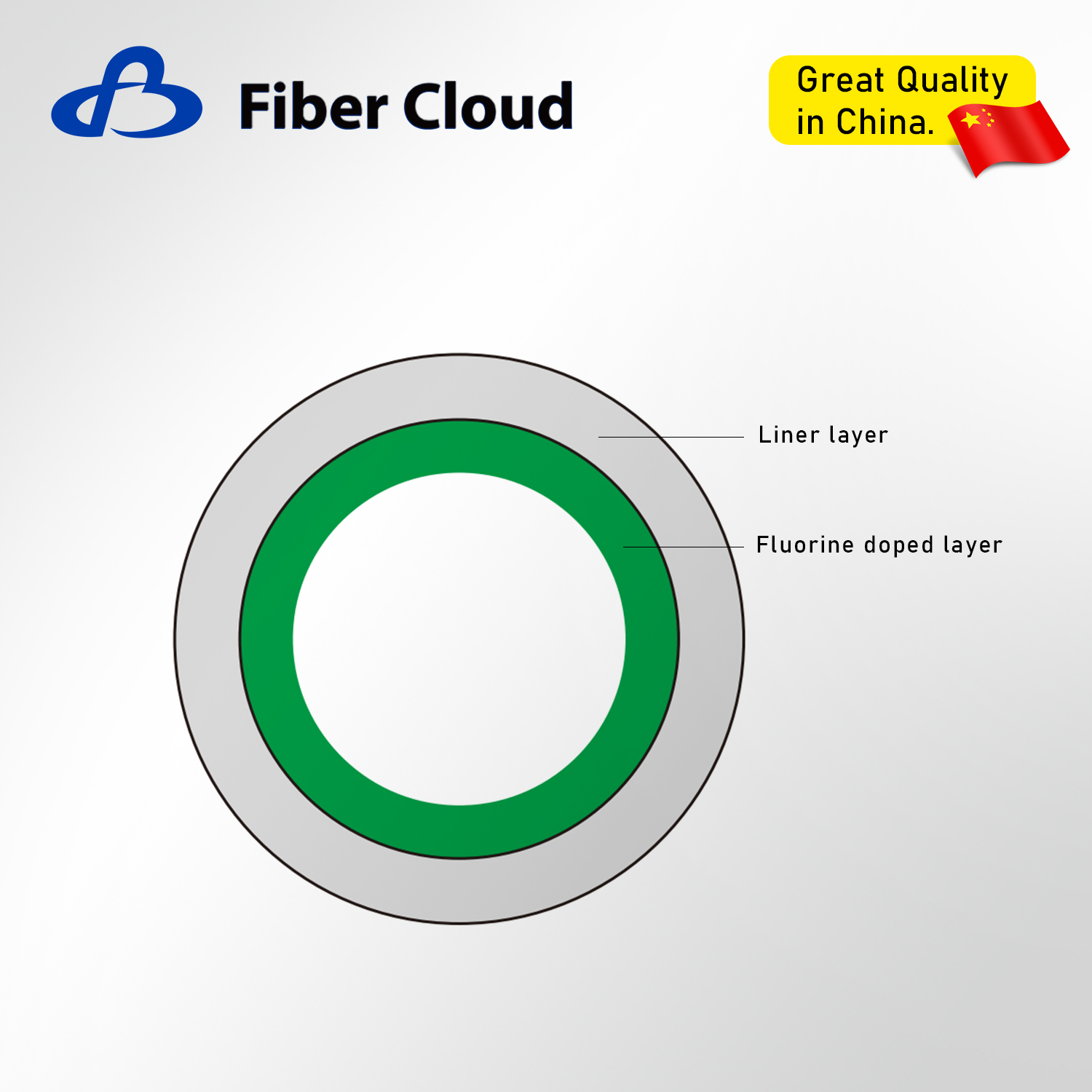

| Fluorine-Doped Layer Diameter | mm | 31.0±0.5 | 31.0±0.5 |
| Fluorine-Doped Tube Inner Diameter | mm | 27.5±0.5 | 26.5±0.5 |
| Fluorine-Doped Layer CSA | mm² | 175±15 | 195±15 |
| Fluorine-Doped Tube Length | mm | 800±50 | 800±50 |
| Fluorine-Doped Tube Out-of-Circularity | % | ≤1.0 | ≤1.0 |
| Recommended Pure Silicon Core Preform Type | / | CCDR1.05-1.10 matches 25.0mm pure silicon core | CCDR1.15-1.20 matches 23.0mm pure silicon core |
Customized Messages
Numerical aperture, fluorine-doped layer thickness and other indicators can be customized according to customer requirements.
