Product Application
Distributed grating
Structural safety monitoring
Smart healthcare
Other polarization sensing systems
Product Specifications
| Item | Unit | Index |
| Model | / | SMCF 3/15-125 |

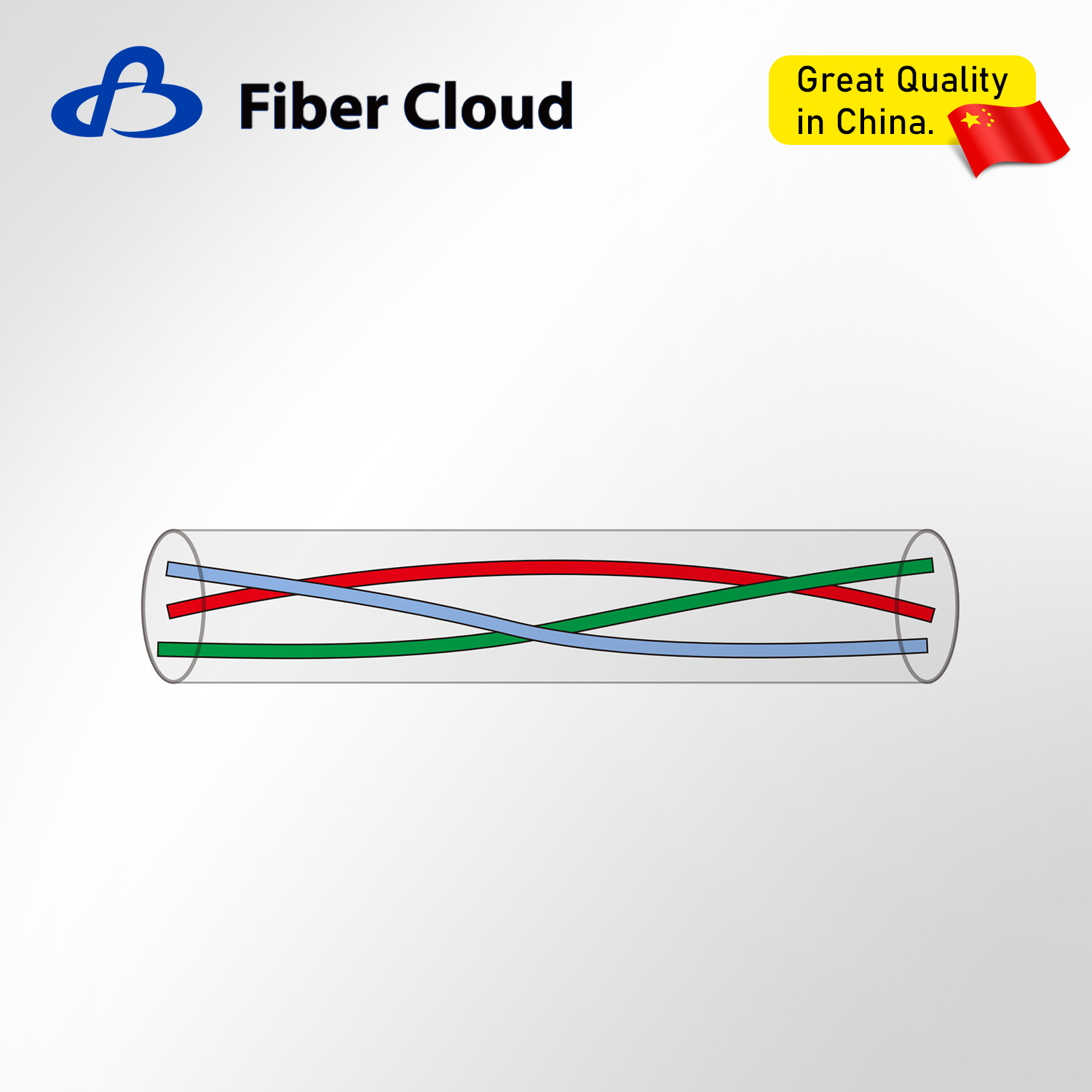

| Structure Type | / | Three-core |
| Optical characteristics |
| Operating Wavelength | nm | 1550 |
| Cut-off Wavelength | nm | ≤1510 |
| Mode Field Diameter | μm | 9.5±1.0 |
| Attenuation | dB/km | ≤10 |
| Helix Pitch | mm | Customizable upon request |
| Geometric characteristics |
| Cladding Diameter | μm | 125.0±1.0 |
| Coating Type | / | Double-layer UV-cured acrylic resin |
| Coating Diameter | μm | 245.0±5.0 |
| Environmental and mechanical characteristics |
| Operating Temperature | ℃ | -55～+85 |
| Screening Strength | kpsi | 100 |
Customized Messages

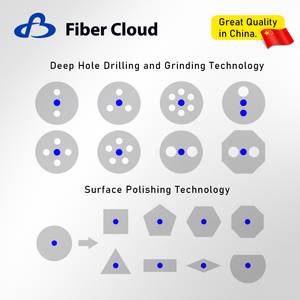

Fiber core structure can be customized according to customer requirements.

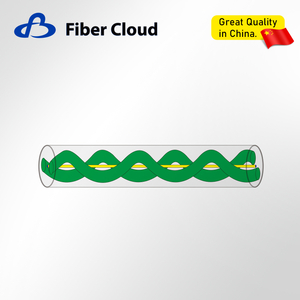

Fiber helix pitch can be customized according to customer requirements.
