Product Application
Fiber end caps to prevent laser damage
Fiber fusion taper
Fiber wrapping pads
Product Specifications

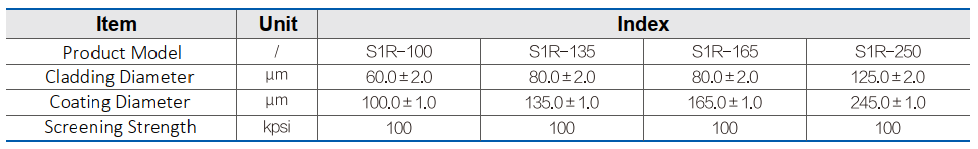

| Item | Unit | Index |
| Product Model | / | S1R-100 | S1R-135 | S1R-165 | S1R-250 |
| Cladding Diameter | μm | 60.0±2.0 | 80.0±2.0 | 80.0±2.0 | 125.0±2.0 |
| Coating Diameter | μm | 100.0±1.0 | 135.0±1.0 | 165.0±1.0 | 245.0±1.0 |
| Screening Strength | kpsi | 100 | 100 | 100 | 100 |
Customization Information
Coreless fiber products with other geometric dimensions can be provided according to customer requirements.
