The quartz glass preform processing technology platform primarily relies on four processing technologies, as follows:

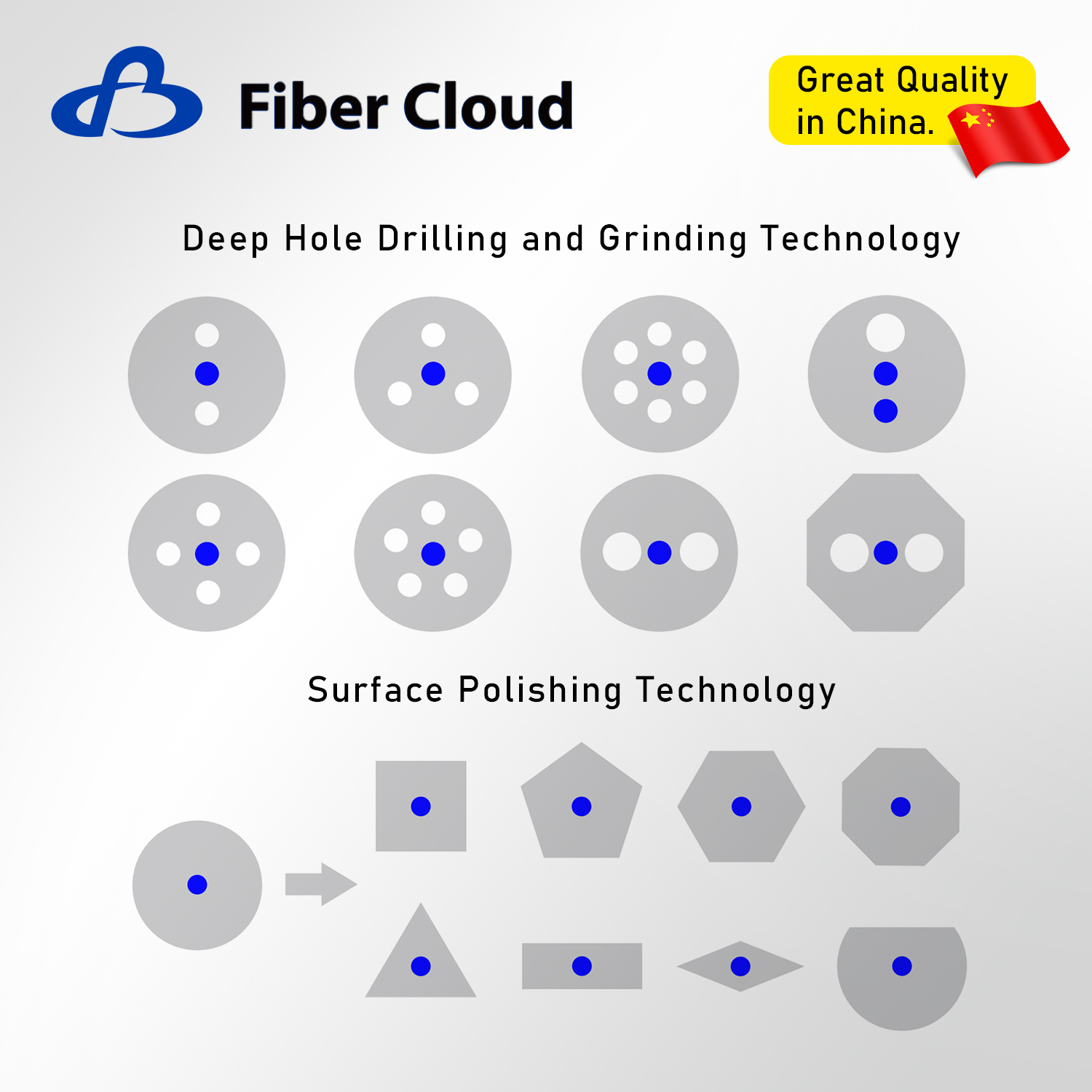

Deep Hole Drilling and Grinding Technology
Technical Specifications
Material Shape Requirements: Round, square, rectangular, regular polygonal, etc.
Drilling Diameter: 5-20 ± 0.05mm
Drilling Depth:≤ 0.01mm
Drilling Depth: 1-1000mm (Drilling depth varies depending on hole diameter)
Minimum Hole Spacing: 1mm
Product Application
Multi-core Fiber Preform
Photonic Crystal Fiber Preform
Microstructured Fiber Preform
Polarization-Maintaining Fiber Preform
External Cylindrical Grinding Technology
Technical Specifications
Material Shape Requirements: Round Bar
Processing Diameter: 10-120 ± 0.02mm
Processing Length: 100-1000mm (Processing Length Varies Depending on Diameter)Surface Roughness: Ra≤ 0.10µm
Applications
Optical Fiber Preform External Cylindrical Processing
Optical Fiber Preform External Cylindrical Repair
Surface Polishing Technology
Technical Specifications
Material Shape Requirements: Unlimited
Processing Diameter: 10-100 mm (0.01 mm)
Processing Length: 1-1000 mm
Number of Polygons: 1-1
Applications
OElliptical Core Fiber Preform
Actively Doped Preform
Special Structure Preform Processing Technology
Technical Specifications
Material Shape Requirements: Round Tube
Processing Diameter: 5-50 mm
Processing Length: 1-1000 mm
Applications
Photonic Crystal Fiber Preform
Microstructured Fiber Preform
