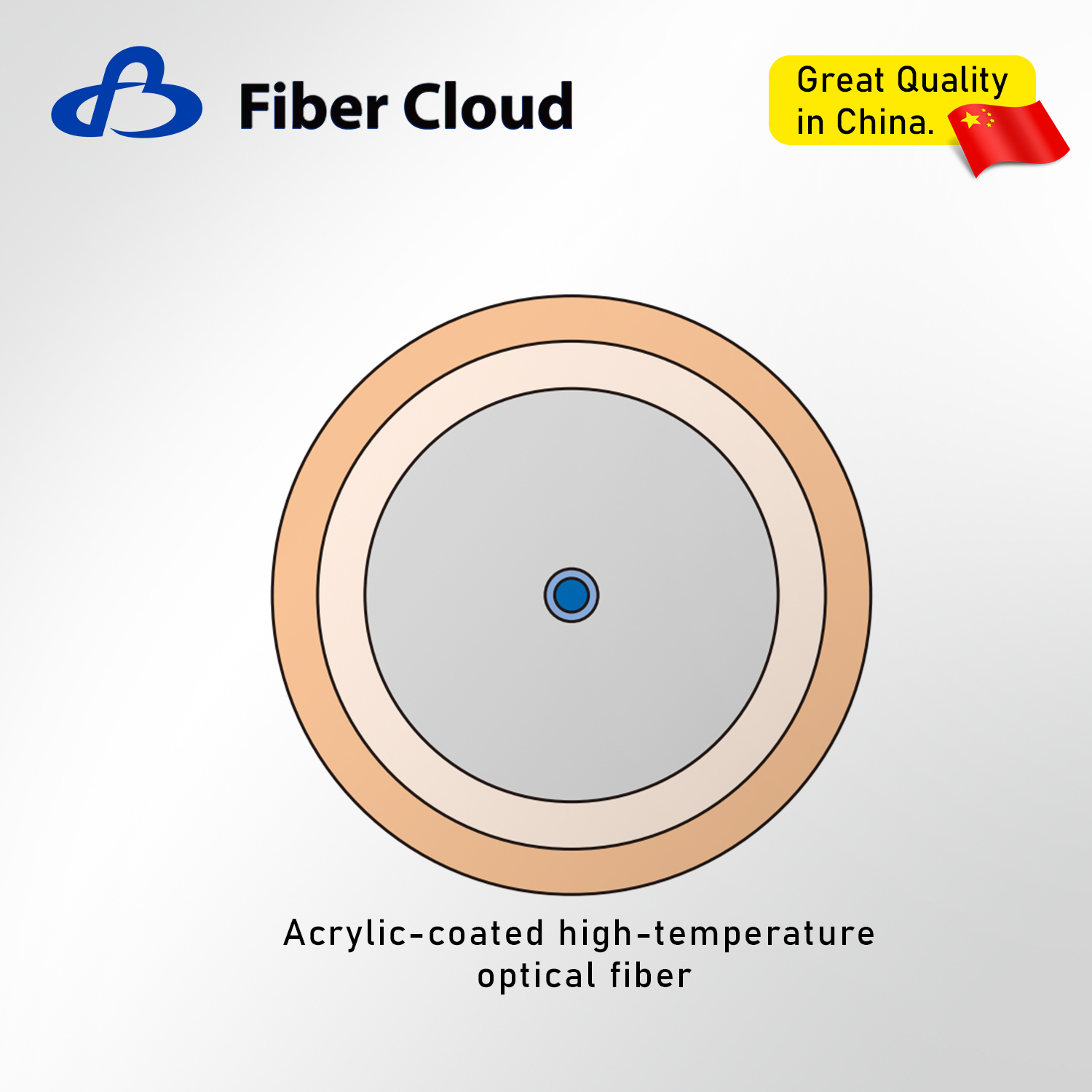

HT 9/125-14/250 HT 9/125-14/155
Product Application
Aerospace
Medical equipment
Petrochemical
Product Specifications

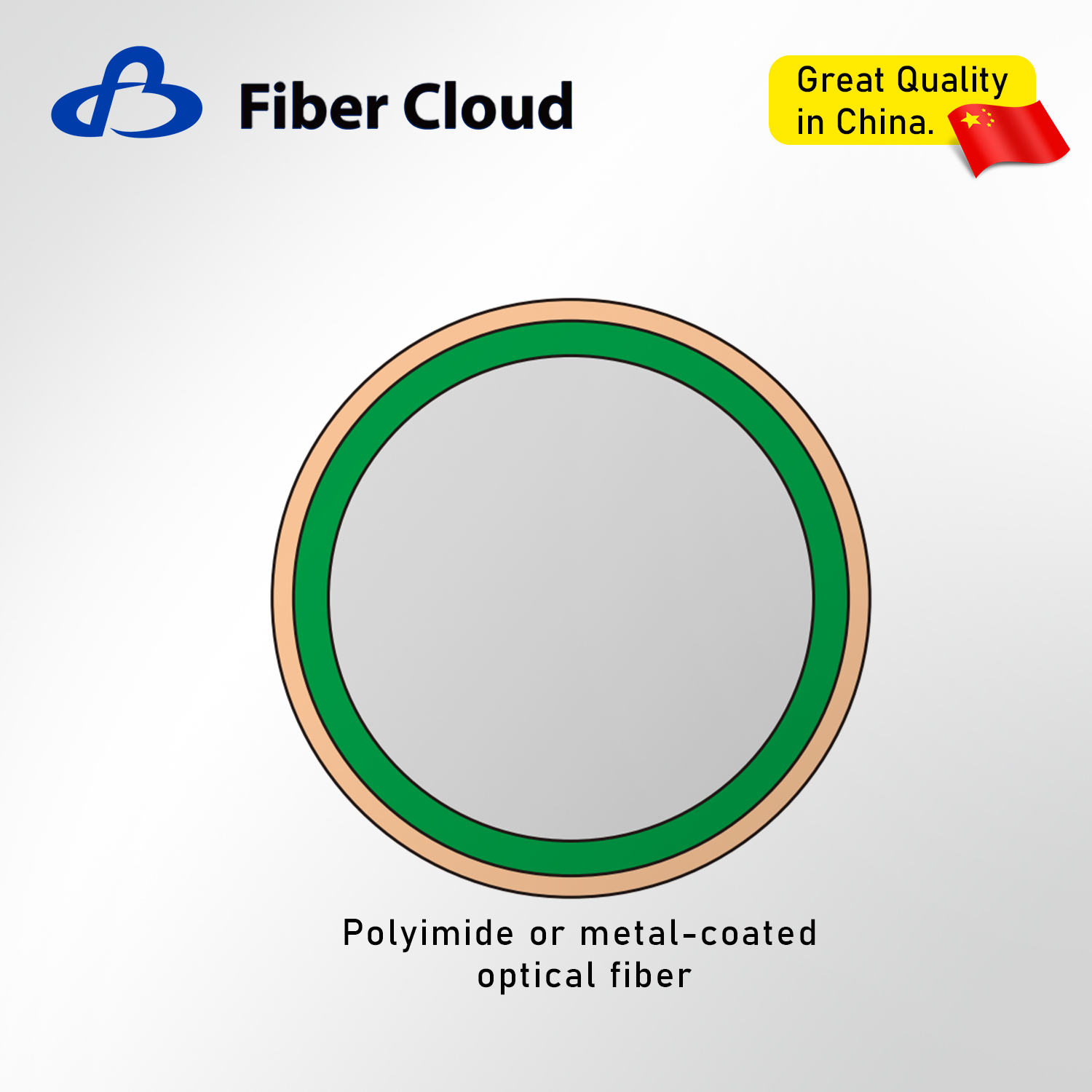

| Item | Unit | Index | |
| Product Model | / | HT 9/125-14/250 | HT 9/125-14/155 |
| Optical characteristics | |||
| Mode Field Diameter @1310nm | μm | 9.2±0.4 | 9.2±0.4 |
| Mode Field Diameter @1550nm | μm | 10.4±0.8 | 10.4±0.8 |
| Fiber Cutoff Wavelength | nm | ≤1290 | ≤1290 |
| Attenuation @1310nm | dB/km | ≤0.4 | ≤1.0 |
| Attenuation @1550nm | dB/km | ≤0.25 | ≤0.8 |
| Geometric characteristics | |||
| Cladding Diameter | μm | 125.0±1.0 | 125.0±2.0 |
| Coating Diameter | μm | 245.0±5.0 | 155.0±5.0 |
| Cladding Non-Circularity | % | ≤1.0 | ≤1.0 |
| Core/Clad Concentricity Error | μm | ≤0.8 | ≤0.8 |
| Coating/Clad Concentricity Deviation | μm | ≤6.0 | / |
| Environmental and mechanical characteristics | |||
| Screening Strength | kpsi | 100 100 | |
| Operating Temperature | ℃ | -65~+150 | -65~+300 |
| Coating Material | / | High-temperature resistant acrylic resin | Polyimide |
| Item | Unit | Index | |
| Product Model | / | HTG 50/125-20/250 | HTG50/125-20/155 |
| Optical characteristics | |||
| Attenuation @850nm | dB/km | ≤3.0 | ≤4.0 |
| Attenuation @1300nm | dB/km | ≤1.0 | ≤2.0 |
| Bandwidth @850nm | MHz ·km | ≥150 | ≥150 |
| Bandwidth @1300nm | MHz ·km | ≥300 | ≥300 |
| Numerical Aperture | / | 0.200±0.015 | 0.200±0.015 |
| Geometric characteristics | |||
| Core Diameter | μm | 50.0±2.5 | 50.0±3.0 |
| Cladding Diameter | μm | 125.0±1.0 | 125.0±2.0 |
| Coating Diameter | μm | 245.0±5.0 | 155.0±5.0 |
| Cladding Non-Circularity | % | ≤1.0 | ≤1.0 |
| Core/Cladding Concentricity Error | μm | ≤1.5 | ≤1.5 |
| Coating/Cladding Concentricity Deviation | μm | ≤6.0 | / |
| Environmental and mechanical characteristics | |||
| Screening Strength | kpsi | 100 | 100 |
| Operating Temperature Range | ℃ | -65~+150 | -65~+300 |
| Coating Material | / | High-temperature resistant acrylic resin | Polyimide |
| Item | Unit | Index | |||
| Product Model | / | HTSI 105/125-22/250-150 | HTSI 200/220-22/400-150 | HTSI 400/440-22650-150 | HTSI 105/125-22/155-300 |
| Optical characteristics | |||||
| Numerical Aperture | / | 0.22±0.02 | 0.22±0.02 | 0.22±0.02 | 0.22±0.02 |
| Geometric characteristics | |||||
| Core Diameter | μm | 105.0±2.0 | 200.0±5.0 | 400.0±8.0 | 105.0±2.0 |
| Cladding Diameter | μm | 125.0±1.0 | 220.0±5.0 | 440.0±8.0 | 125.0±2.0 |
| Coating Diameter | μm | 250.0±10.0 | 400.0±20.0 | 650.0±30.0 | 155.0±5.0 |
| Core-Clad Concentricity | μm | ≤1.0 | ≤3.0 | ≤3.0 | ≤1.0 |
| Core Non-Circularity | % | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 |
| Cladding Non-Circularity | % | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Environmental and mechanical characteristics | |||||
| Screening Strength | kpsi | 100 | 100 | 100 | 100 |
| Operating Temperature | ℃ | -65~+150 | -65~+150 | -65~+150 | -65~+300 |
| Material description | |||||
| Core Material | / | Pure quartz glass | |||
| Cladding Material | / | Fluorine-doped quartz glass | |||
| Coating Material | / | High-temperature resistant acrylic resin | Polyimide | ||
| Item | Unit | Index | |||
| Product Model | / | HTSI 200/220-22/250-300 | HTSI 400/440-22/480-300 | HTSI 105/125-22/175-A | HTSI 200220-22280-A |
| Optical characteristics | |||||
| Numerical Aperture | / | 0.22±0.02 | 0.22±0.02 | 0.22±0.02 | 0.22±0.02 |
| Geometric characteristics | |||||
| Core Diameter | μm | 200.0±5.0 | 400.0±8.0 | 105.0±2.0 | 200.0±5.0 |
| Cladding Diameter | μm | 220.0±5.0 | 440.0±8.0 | 125.0±1.0 | 220.0±5.0 |
| Coating Diameter | μm | 250.0±5.0 | 480.0±10.0 | 175.0±10.0 | 280.0±20.0 |
| Core-Clad Concentricity | μm | ≤3.0 | ≤3.0 | ≤1.0 | ≤3.0 |
| Core Non-Circularity | % | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 |
| Cladding Non-Circularity | % | ≤2.0 | ≤2.0 | ≤2.0 | ≤20 |
| Environmental and mechanical characteristics | |||||
| Screening Strength | kpsi | 100 | 100 | 100 | 100 |
| Operating Temperature | ℃ | -65~+300 | -65~+300 | -269~+400 | -269~+400 |
| Material description | |||||
| Core Material | / | Pure quartz glass | |||
| Cladding Material | / | Fluorine-doped quartz glass | |||
| Coating Material | / | Polyimide | Aluminum | ||
| Item | Unit | Index | |||
| Product Model | / | HTSI 400/440-22/510-A | HTSI 105/125-22/175-G | HTSI 200/220-22/280-G | HTSI400/440-22/510-G |
| Optical characteristics | |||||
| Numerical Aperture | / | 0.22±0.02 | 0.22±0.02 | 0.22±0.02 | 0.22±0.02 |
| Geometric characteristics | |||||
| Core Diameter | μm | 400.0±8.0 | 105.0±2.0 | 200.0±5.0 | 400.0±8.0 |
| Cladding Diameter | μm | 440.0±8.0 | 125.0±2.0 | 220.0±5.0 | 440.0±8.0 |
| Coating Diameter | μm | 510.0±30.0 | 175.0±10.0 | 280.0±20.0 | 510.0±30.0 |
| Core-Clad Concentricity | μm | ≤3.0 | ≤1.0 | ≤3.0 | ≤3.0 |
| Core Non-Circularity | % | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 |
| Cladding Non-Circularity | % | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Environmental and mechanical characteristics | |||||
| Screening Strength | kpsi | 100 | 100 | 100 | 100 |
| Operating Temperature | ℃ | -269~+400 | -269~+700 | -269~+700 | -269~+700 |
| Material description | |||||
| Core Material | / | Pure quartz glass | |||
| Cladding Material | / | Fluorine-doped quartz glass | |||
| Coating Material | / | Aluminum | Gold | ||
Customized Messages
Other types of high temperature resistant optical fiber products can be provided according to customer requirements.
