Product Application
Lasers
Medical Probes
Fiber Combiners
Analytical Chemistry

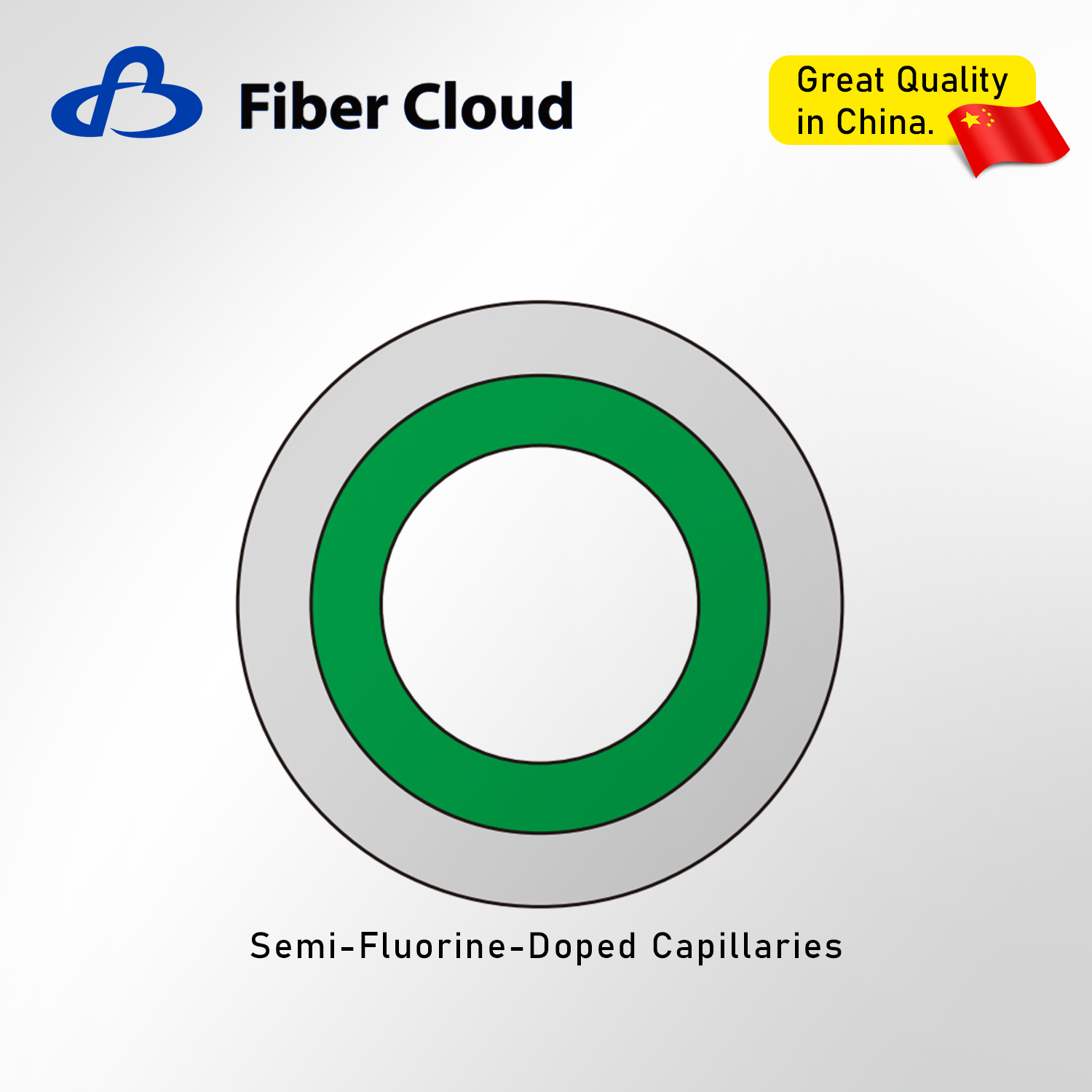

Semi-doped fluorine capillary product specifications
| Product Model | Inner Diameter(μm) | Outer Diameter (μm) | Fluorine-Doped Layer Diameter
/Inner Diameter Ratio | NA |
| FDT 300/900-22 | 300±20 | 900±30 | >1.1 | 0.22±0.02 |
| FDT 200/760-22 | 200±20 | 760±30 | >1.1 | 0.22±0.02 |
| FDT400/750-22 | 400±30 | 750±30 | >1.1 | 0.22±0.02 |
| FDT 850/1150-22 | 850±30 | 1150±30 | >1.1 | 0.22±0.02 |
| FDT 800/1500-22 | 800±30 | 1500±30 | >1.1 | 0.22±0.02 |
| FDT 500/1500-22 | 500±30 | 1500±30 | >1.1 | 0.22±0.02 |
| FDT 1000/1250-22 | 1000±30 | 1250±30 | >1.1 | 0.22±0.02 |

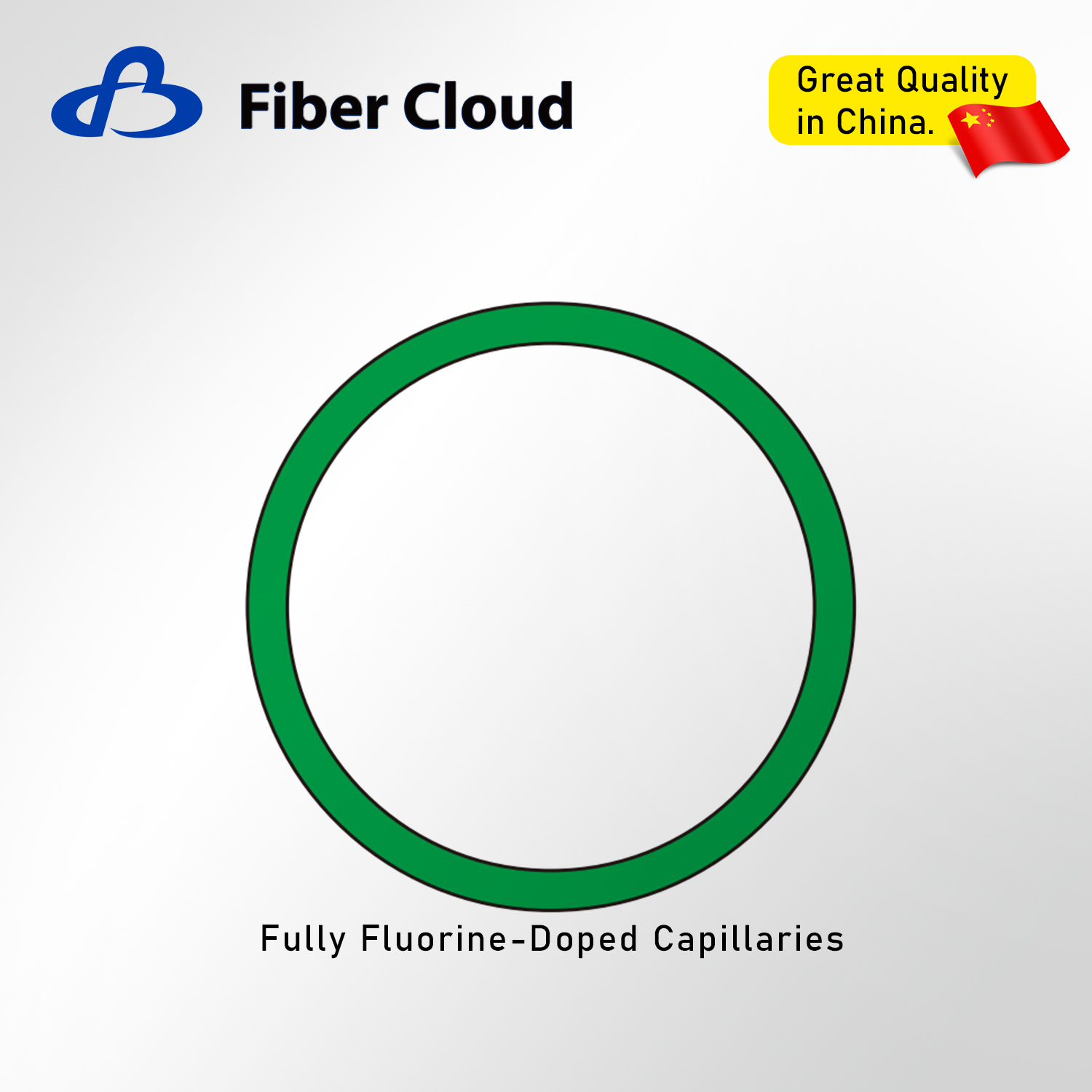

Fully fluorine-doped capillary product specifications
| Product Model | Inner Diameter(μm) | Outer Diameter(μm) | NA |
| FDTA 1000/1250-22 | 1000±50 | 1250±50 | 0.22±0.02 |
| FDTA950/1100-22 | 950±50 | 1100±50 | 0.22±0.02 |
| FDTA 800/1500-22 | 800±100 | 1500±100 | 0.22±0.02 |
| FDTA450/750-22 | 400+50/-0 | 750±50 | 0.22±0.02 |
Customized Messages
Fluorine-doped quartz capillary geometries and dimensions are available upon request.
