Product Application
Ultra-high-capacity optical fiber communication system
New high-capacity multi-service access network
Distributed optical fiber sensing
Medical equipment
Product Specifications
| Item | Unit | Index |
| Optical characteristics |
| Attenuation @1310nm | dB/km | ≤0.6 |
| Attenuation @1550nm | dB/km | ≤0.5 |
| Mode Field Diameter @1310nm | μm | 8.5±0.5 |
| Mode Field Diameter @1550nm | μm | 9.5±0.5 |
| Geometric characteristics |
| Cladding Diameter | μm | 124.5±1.0 |
| Coating Diameter | μm | 245.0±2.0 |
| Coating Type | / | Double-layer UV-cured acrylic resin |
| Environmental and mechanical characteristics |
| Operating Temperature | ℃ | -45～+85 |
| Screening Strength | kpsi | 100 |
| Short-Term Bend Radius | mm | ≥7.5 |
| Long-Term Bend Radius | mm | ≥15.0 |
Customized Messages

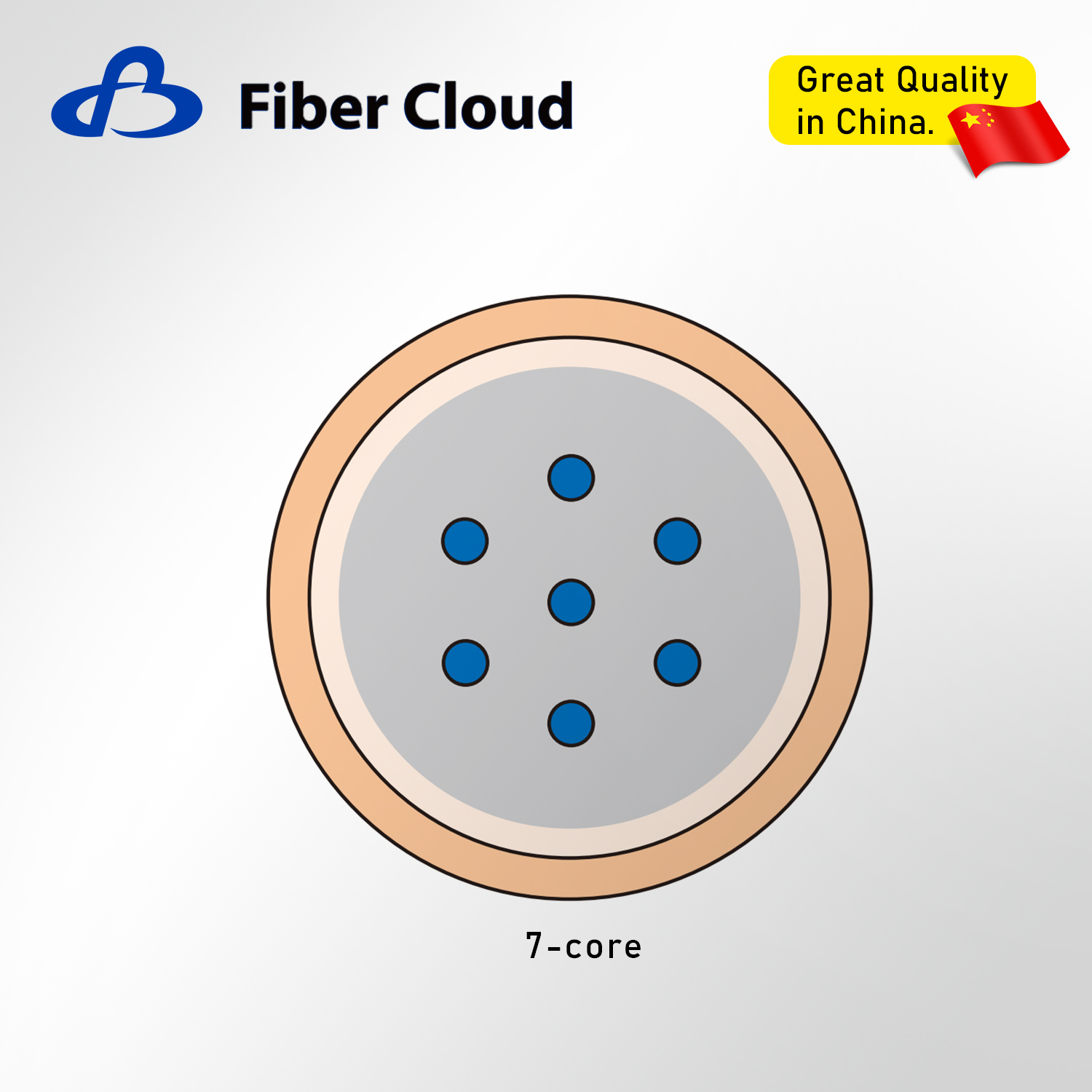

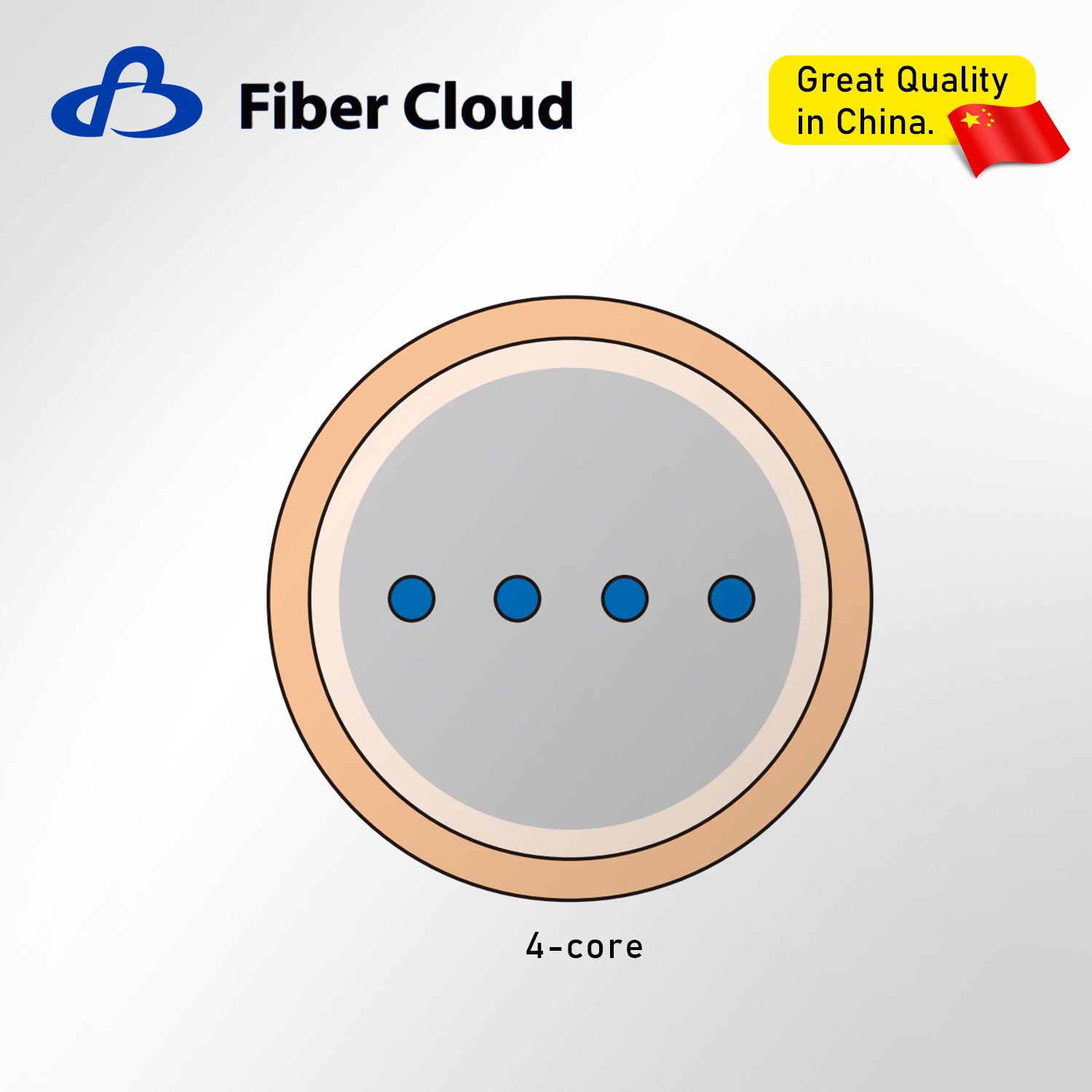

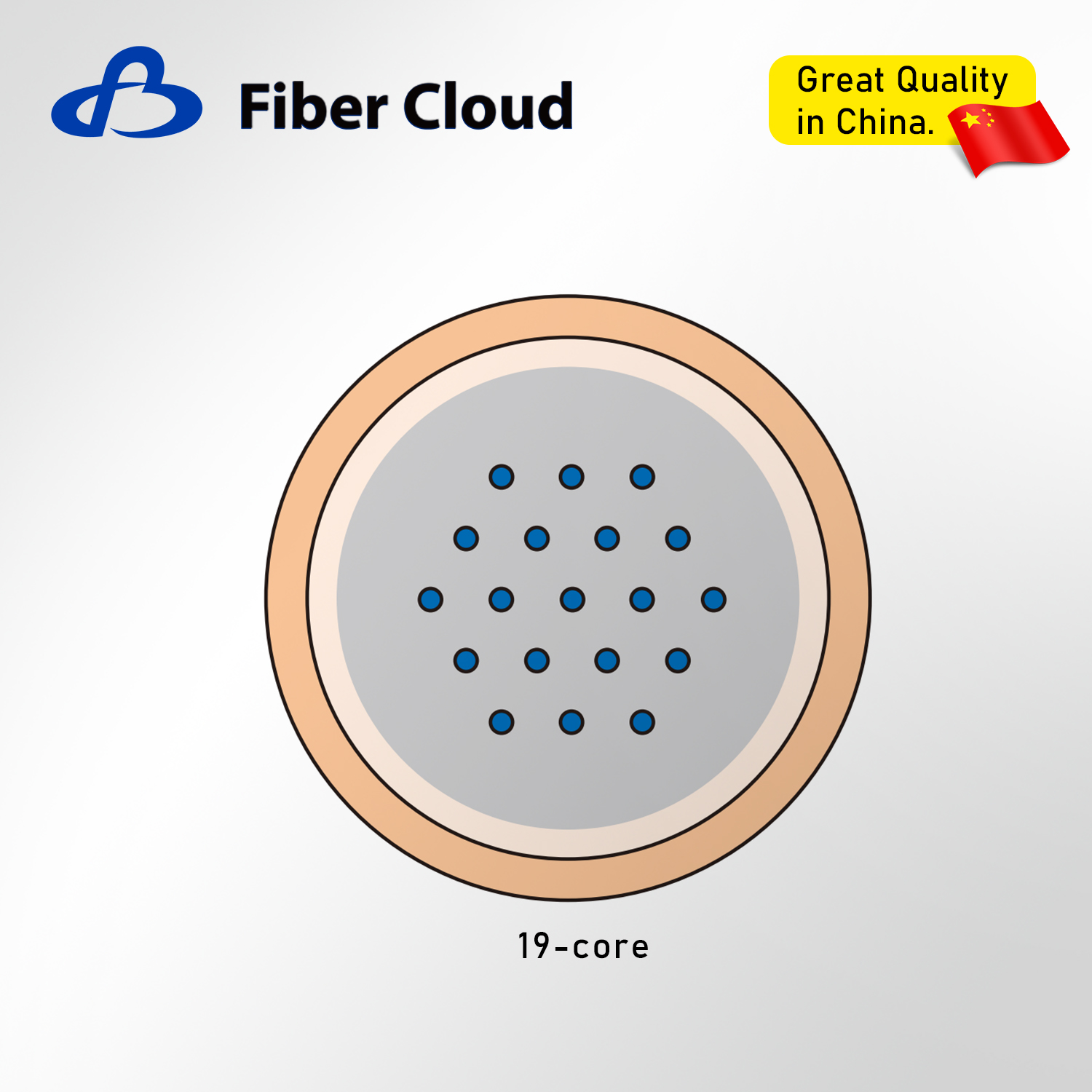

We can customize multi-core optical fibers with different core numbers and core distances according to customer needs and provide a full set of solutions.
