Product Application
Power signal transmission
High-energy laser transmission
Short- to medium-distance communications
Laser medical treatment
Fiber optic lighting
Product Specifications
| Item | Unit | Index |
| Product Model | / | HP 200/230-37/500 | HP 300/330-46/450 | HP400/440-46/550 | HP 1000/1100-46/1250 |
| Optical characteristics |
| Numerical Aperture | / | 0.37±0.02 | 0.46±0.02 | 0.46±0.02 | 0.46±0.02 |
| Attenuation @850nm | dB/km | ≤8.0 | ≤8.0 | ≤8.0 | ≤8.0 |
| Fiber Refractive Index Structure | / | Step type | Step type | Step type | Step type |
| Geometric characteristics |
| Core Diameter | μm | 200.0±3.0 | 300.0±6.0 | 400.0±8.0 | 1000.0±20.0 |
| Cladding Diameter | μm | 230.0+0/-8.0 | 330.0+5.0/-10.0 | 440.0+5.0/-10.0 | 1100.0+10.0/-30.0 |
| Thin-Bushing Diameter | μm | 500.0±30.0 | 450.0±30.0 | 550.0±50.0 | 1250.0±50.0 |
| Core-Clad Concentricity | μm | ≤5.0 | ≤6.0 | ≤8.0 | ≤10.0 |
| Mechanical properties |
| Short-Term Bend Radius | mm | ≥10.0 | ≥16.0 | ≥29.0 | ≥73.0 |
| Long-Term Bend Radius | mm | ≥16.0 | ≥24.0 | ≥47.0 | ≥118.0 |
| Operating Temperature | ℃ | -65～+85 | -65~+85 | -65～+85 | -65～+85 |
| Screening Strength | kpsi | 100 | 100 | 100 | 75 |

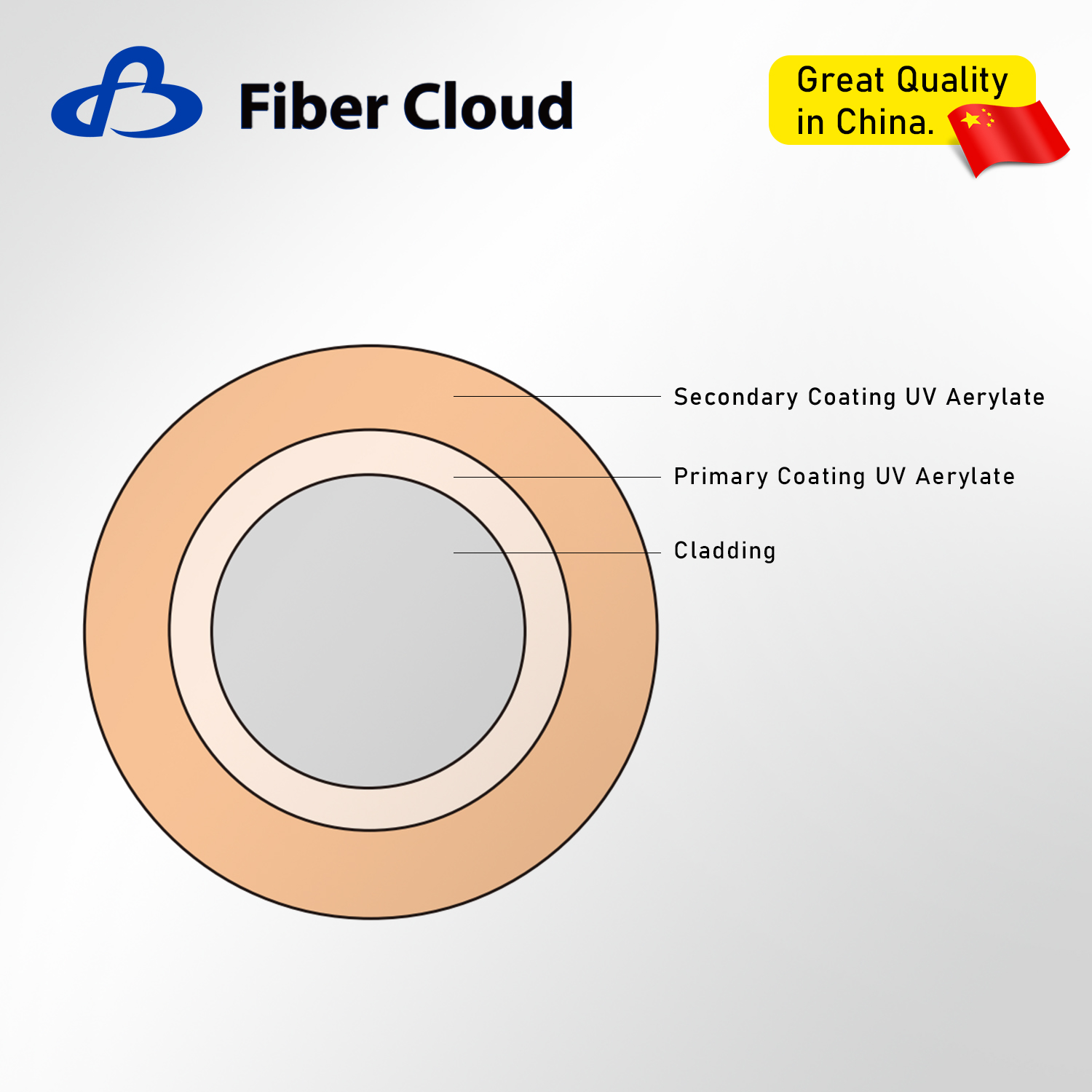

| Material description |
| Core Material | / | Pure quartz glass |
| Cladding Material | / | Acrylic resin |
| Thin-Bushing Material | / | ETFE or acrylic resin |
Customized Information
The operating wavelength, mode field diameter, beat length, geometric dimensions, coating material,screening intensity and other indicators can be customized according to customer requirements.
