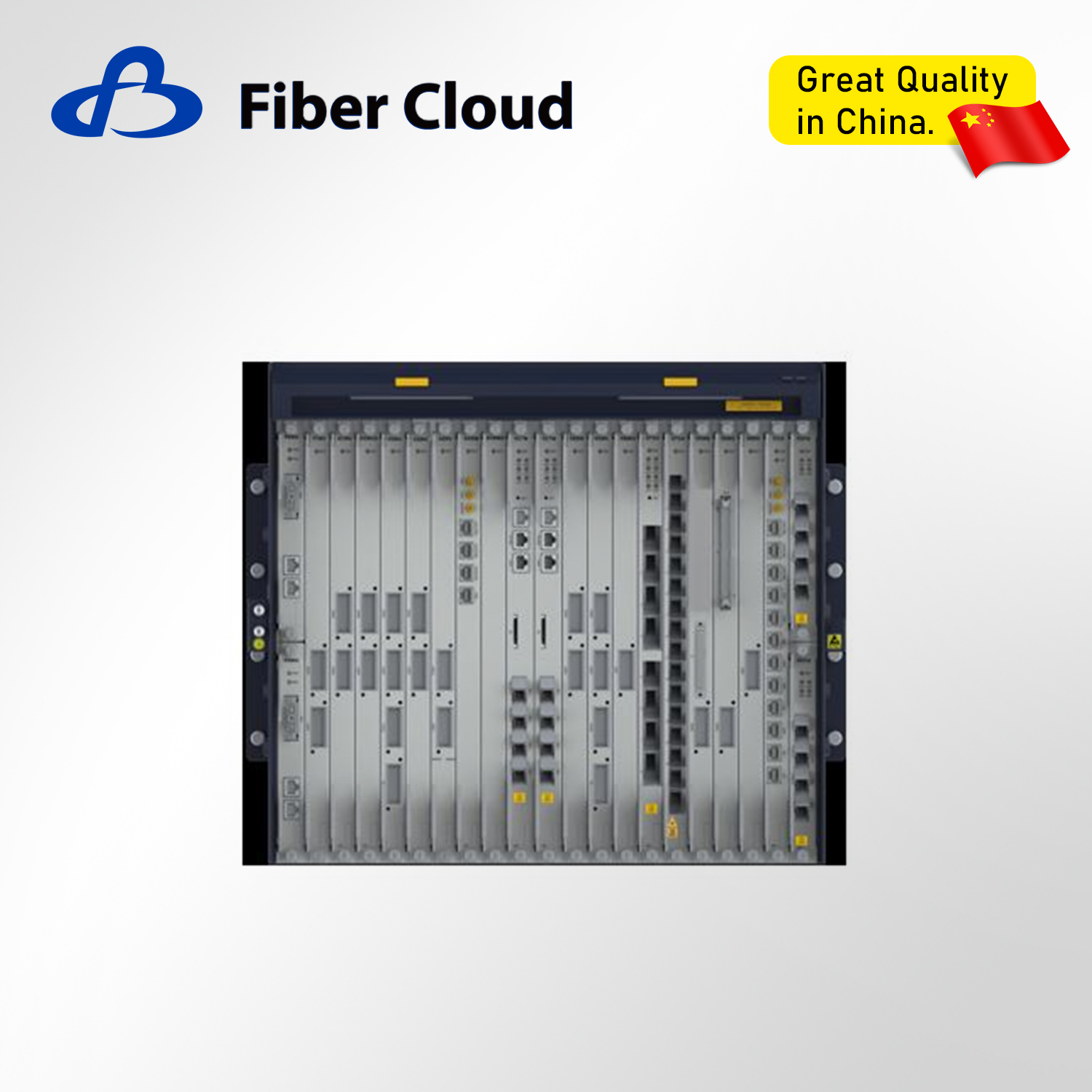

1/10GE GPON XG-PON ZXA10 C300M hybrid fiber & copper platform

The ZXA10 C300M is a large-capacity hybrid fiber & copper platform that provides the most comprehensive broadband access technologies including copper accesses, fiber accesses, and legacy narrow-band accesses. Industry's exclusive hybrid fiber & copper platform fully Supporting broadband & narrowband services.

Characteristics

Traditional VolP service such as POTS ISDN BRAPRI. E1. V5. DDN
Copper broadband access such as ADSL2+, VDSL2, VDSL2 17a/35b Vectoring
Fiber broadband access such as GPON.XG-PON. XGS-PON P2P
One Platform, Two-gen Technologies, Double Life-cycle
One platform, fiber and copper dual-access with broadband and narrowband dual-service
Support of XG(S)-PON and Combo PON
Seamless shift among full copper acess, hybrid fiber & copper access, and full fiber access platform justby changing line cards

Availability:



Inquire Add to Basket

Model:
ZXA10 C300M
Brand:
ZTE

Product Description

Product Specifications

Model	Parameter
SNI	GE, 10GE, GPON, XG-PON, E1
UNI	POTS, ISDN BRI/PRI, E1, V.35, 2/4 wire audio ADSL2/2+, SHDSL, VDSL2, VDSL2 17a/35b Vectoring, ADSL2+&POTS Combo, VDSL2&POTS Combo GPON, XG(S)-PON, Combo PON, GE/FE P2P
Dimensions	21" chassis: 449.2 mm535 mm270 mm; 19" chassis: 443.7 mm482.6 mm270 mm (HWD)
Weight	21" empty chassis: 5 kg; 19" empty chassis: 3.75 kg; Full configuration 21" chassis: 32 kg; Full configuration 19" chassis: 29 kg
Work voltage	DC: -48V(+/-20%), -60V(+/-20%); -38.4V～-72V
Work current	DC: 40A
Work Temperature	-35°C ~ +65°C, min. start-up temperature is -25°C
Work Humidity	5%-95%

Product Description
