Product Application
Security surveillance
Smart Cities
All-opticalcampus network
Smart streetlights
Product Specifications
| Specification | Details |
| Operating Wavelength | 1310nm (RX) / 1490nm (TX) |
| Optical Power | +2.5 to +7dBm |
| Receiver Sensitivity | -27dBm |
| Maximum Transmission Distance | 20km |
| Maximum Split Ratio | 1:64 |
| System Capacity | Supports 4 PON systems, 256 ONUs |
| MAC Address Table | 8K entries (system-wide) |

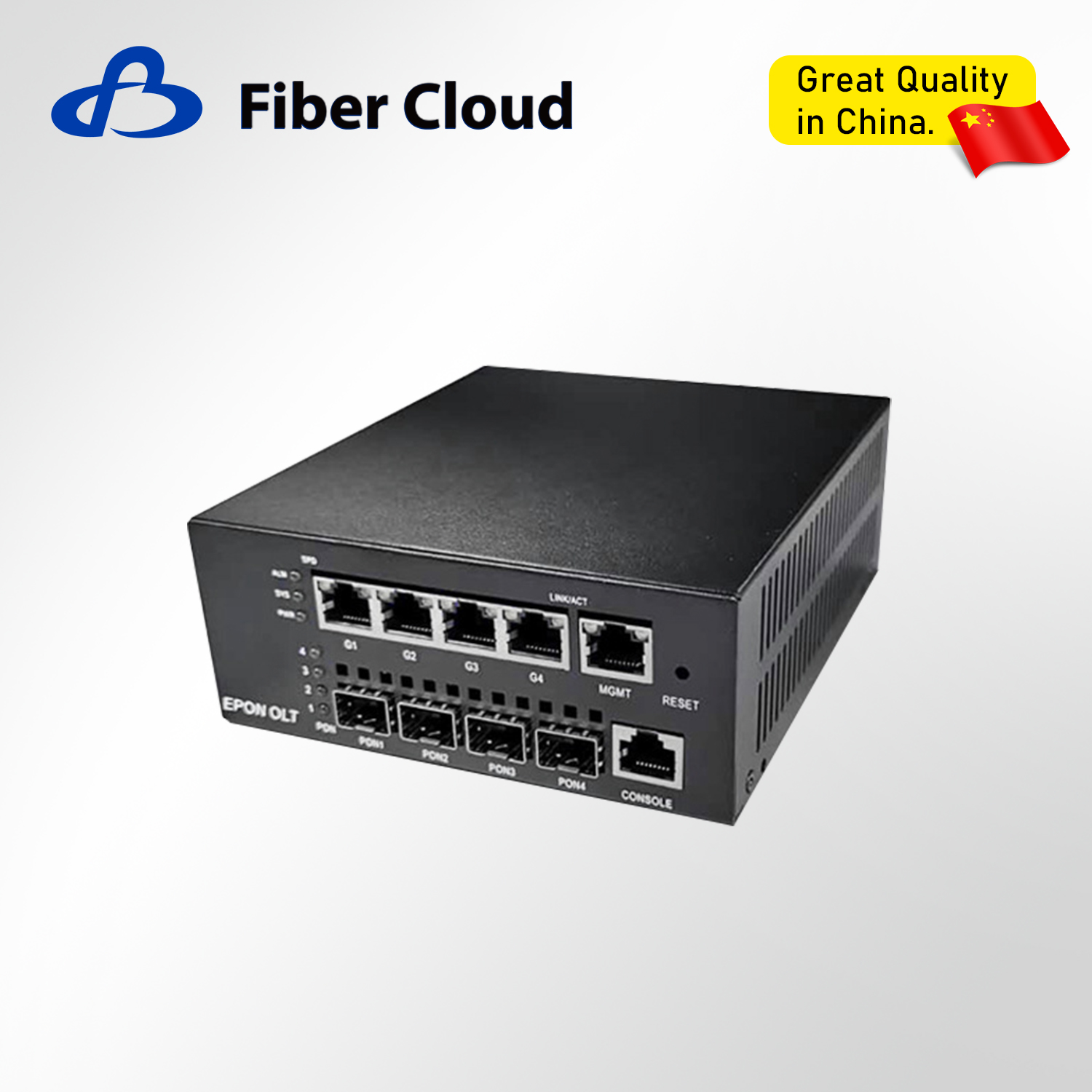

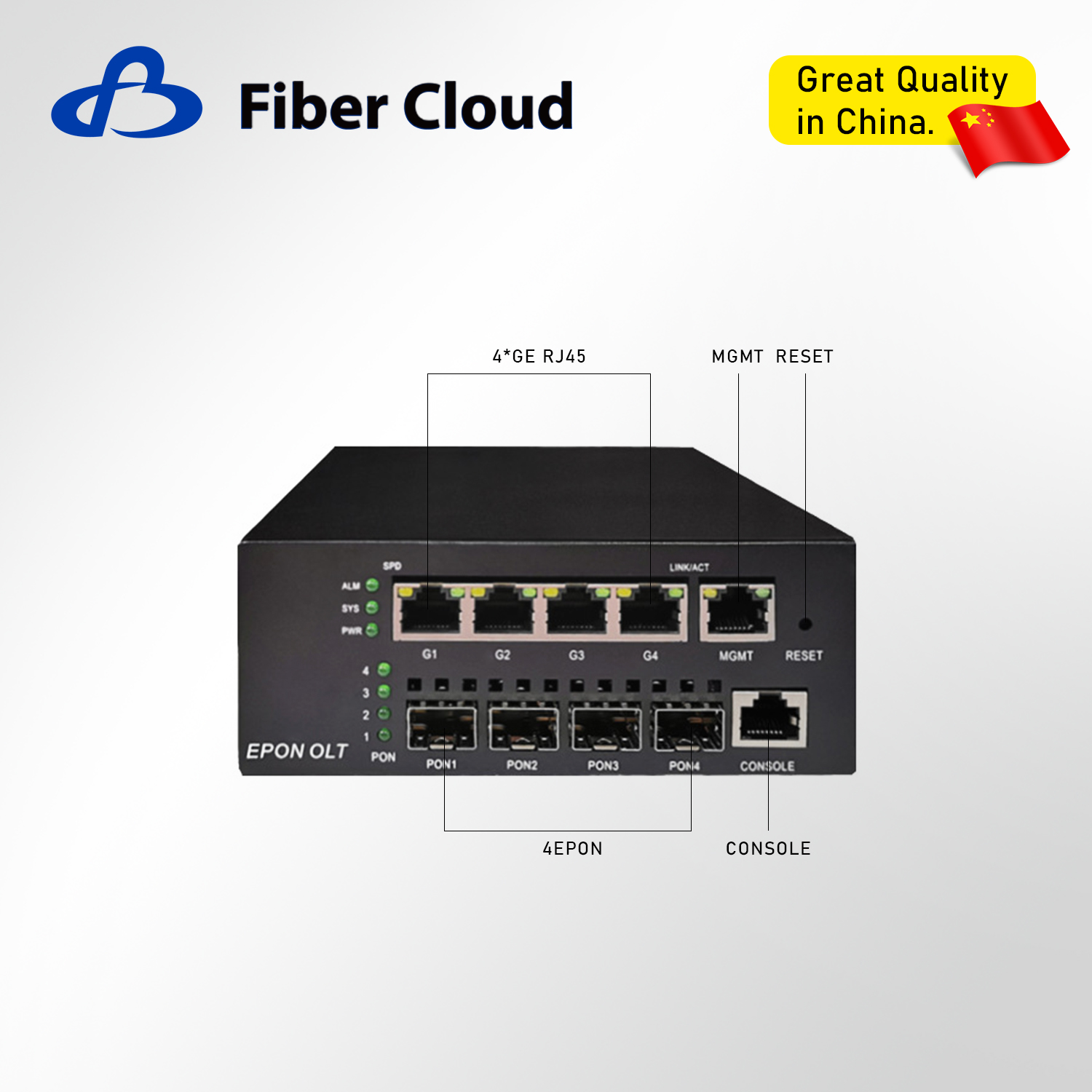

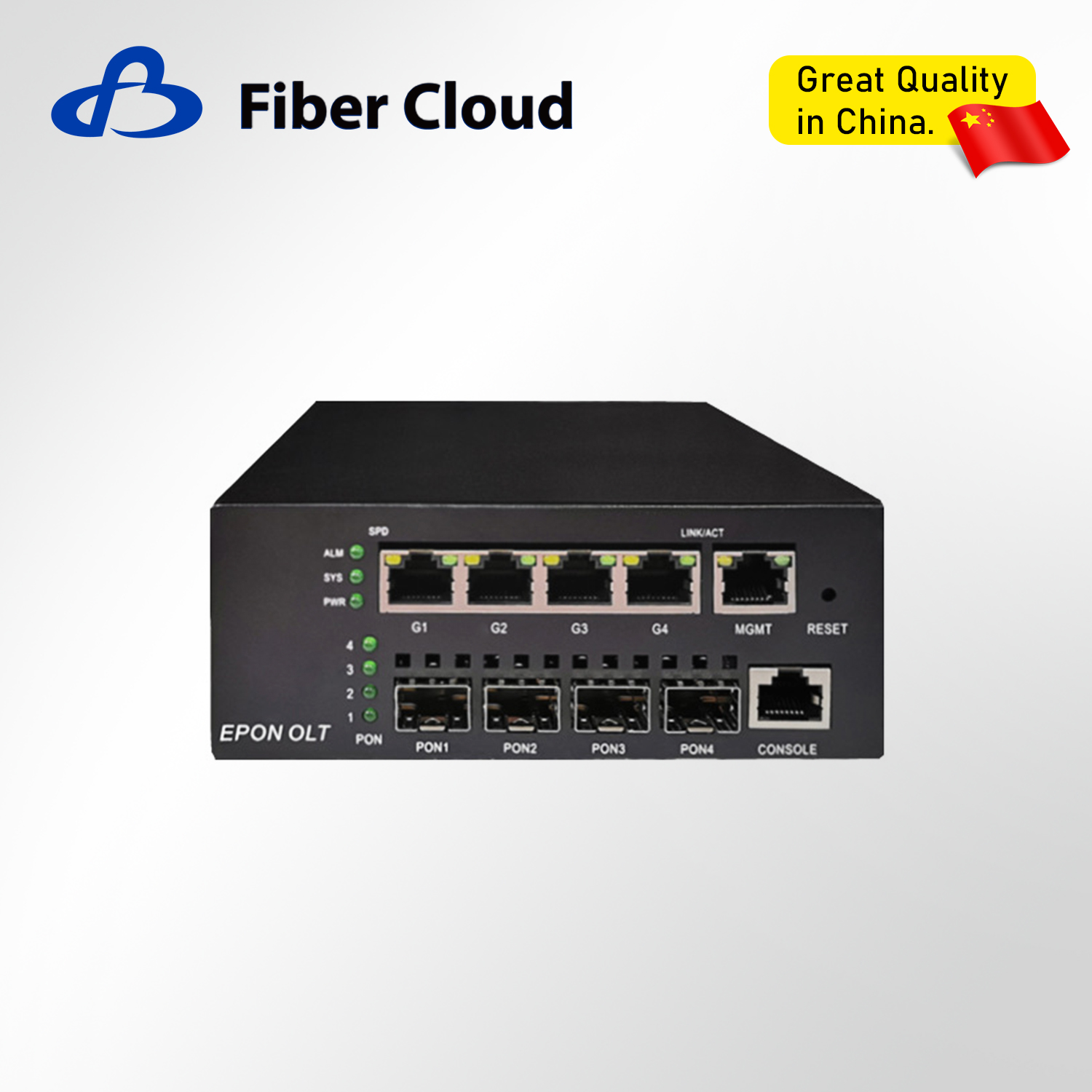

| Uplink Interfaces | 4 Gigabit Ethernet ports |
| PON Interfaces | 4 SFP G-EPON ports |
| Management Interface | 1 FE port for network access |
| MTBF | 100,000 hours |
| EPON Features | Fully compliant with IEEE 802.3ah
Supports Dynamic Bandwidth Allocation (IDBA), minimum adjustment granularity 1Kbps
1Gbps symmetric bandwidth (up/down)
AES-128 encryption per logical link
Comprehensive OAM for remote ONU management/maintenance/upgrades
Automatic ONU discovery and registration (plug-and-play) |
| Supported Protocols | IEEE 802.3, 802.3u, 802.3ab
IEEE 802.1Q VLAN
IEEE 802.1P QoS |
| Management | CLI via local serial port + remote GUI management |
| Additional Features | IGMPv1/v2, IGMP Snooping & Proxy
Batch ONU configuration & remote upgrades
Real-time alarm monitoring & precise fault location
Email/SMS alarm notifications |

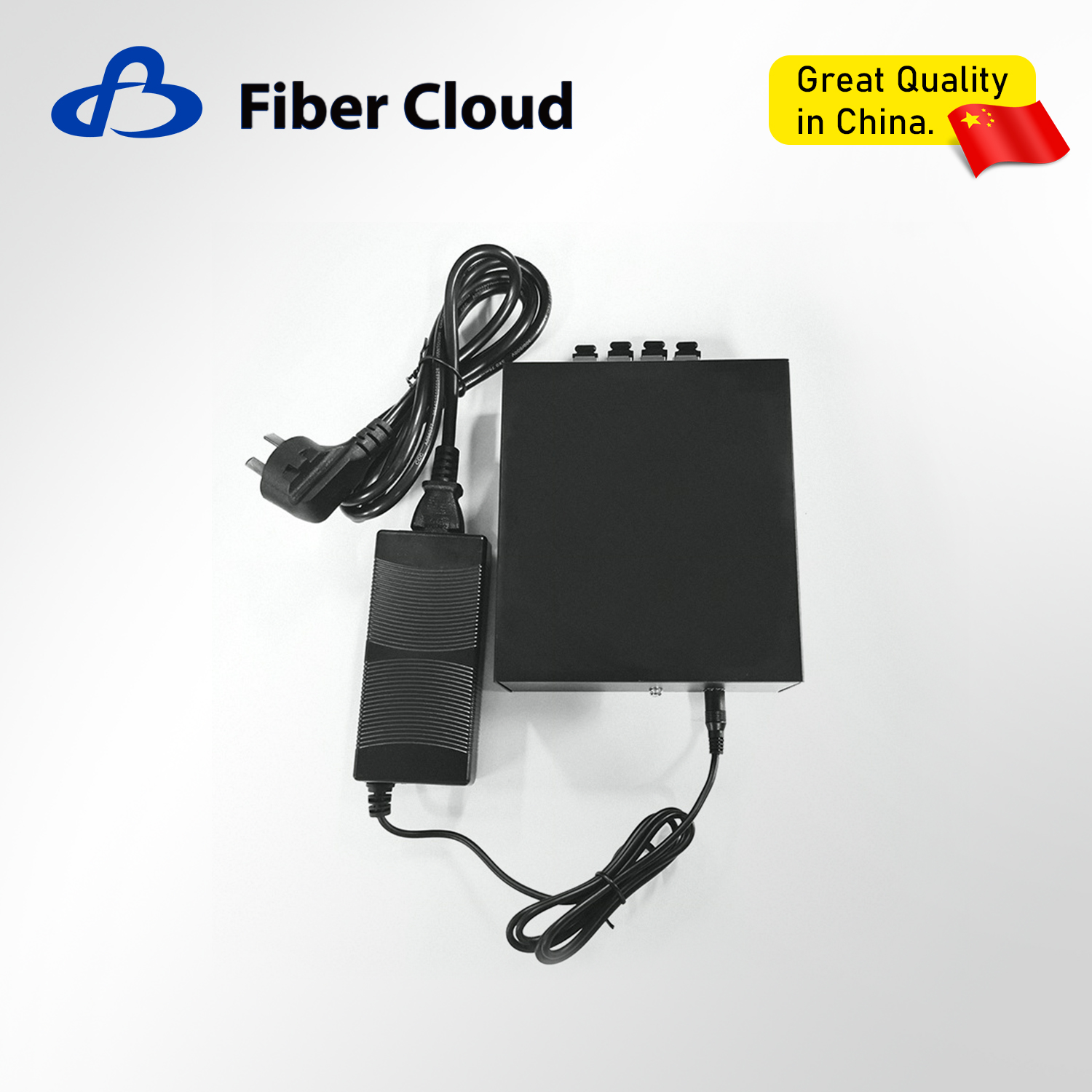

| Power Supply | DC 12V/5A (external) |
| Power Consumption | 20W |
| Operating Temperature | -10 to 55°C |
| Storage Temperature | -40 to 80°C |
| Humidity | 5% to 90% (non-condensing) |

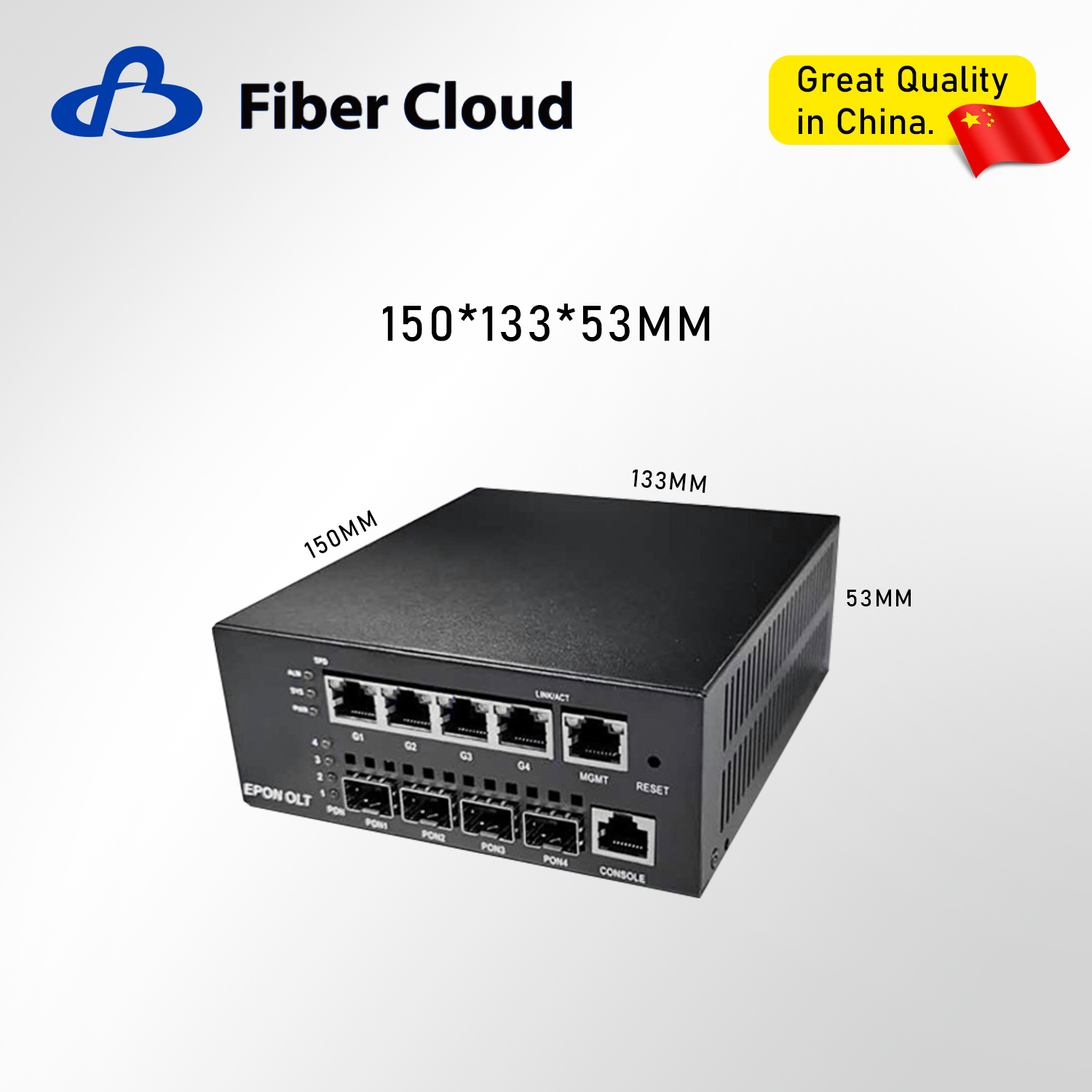

| Chassis Dimensions | 15×13.3×5.3cm |
| Notes | Compatible with 98% of market ONU modems (modules not included) |
