Product Application
Securitysurveillance
Smart streetlights
Smart Cities
All-opticalcampus network
Product Specifications
| Parameter | Specifications |
| Installation | Desktop type |
| Backplane Bandwidth | 16 Gbps |
| Wavelength | TX 1490nm, RX 1310nm |
| Transmission Distance | 20KM |
| Operating Temperature | 0℃ to +55℃ |
| Storage Temperature | -40℃ to +85℃ |
| Maximum Split Ratio | 1:128 |
| Transmission Rate | Up: 1.244Gbps, Down: 2.488Gbps |
| Throughput | 23.808 Mpps |
| Management Port | 1×USB Type-C |
| Management Methods | Console/WEB/Telnet/CLI |
| VLAN | VLAN tag/untag, VLAN transparent transmission |

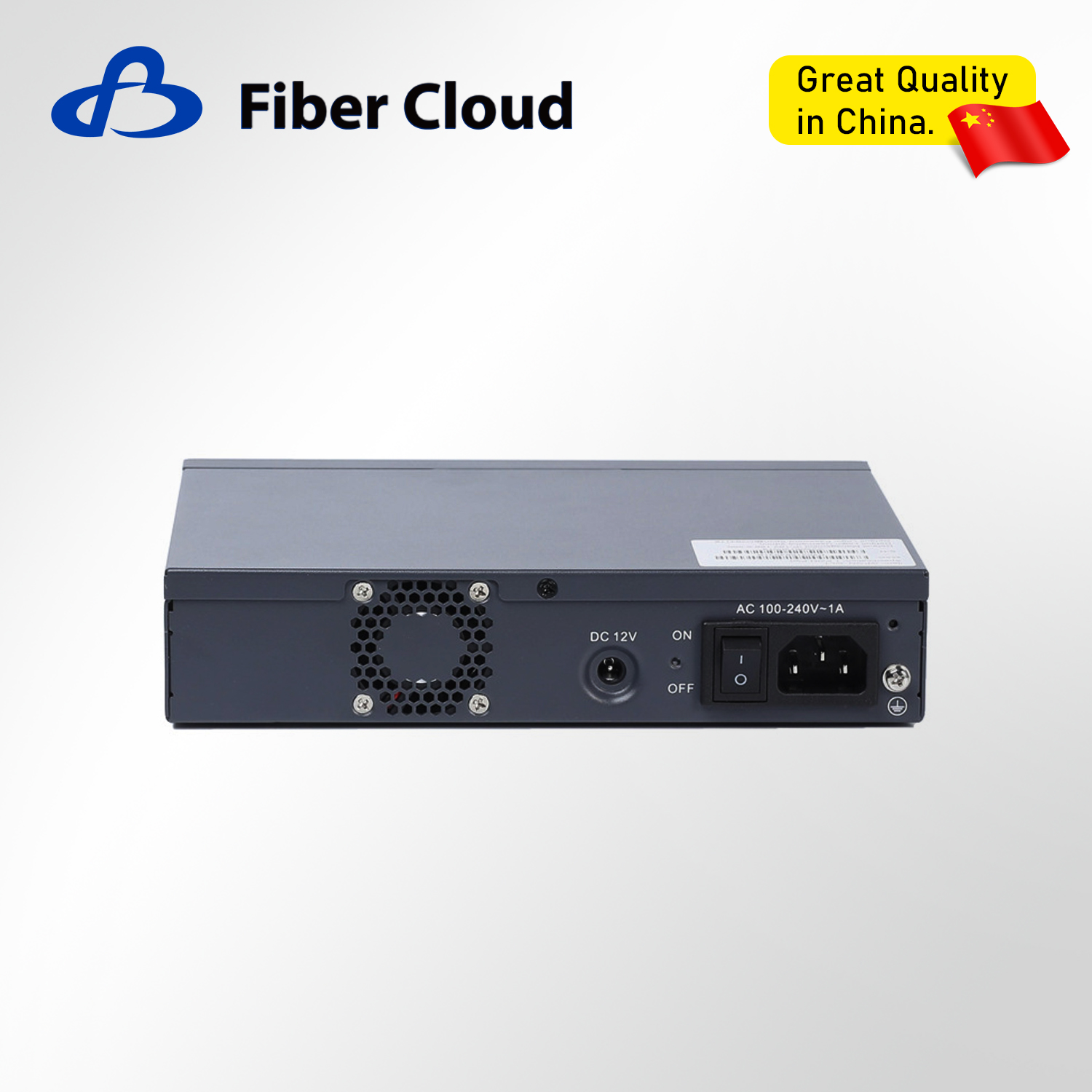

| Power Supply | DC 12V 2.5A |

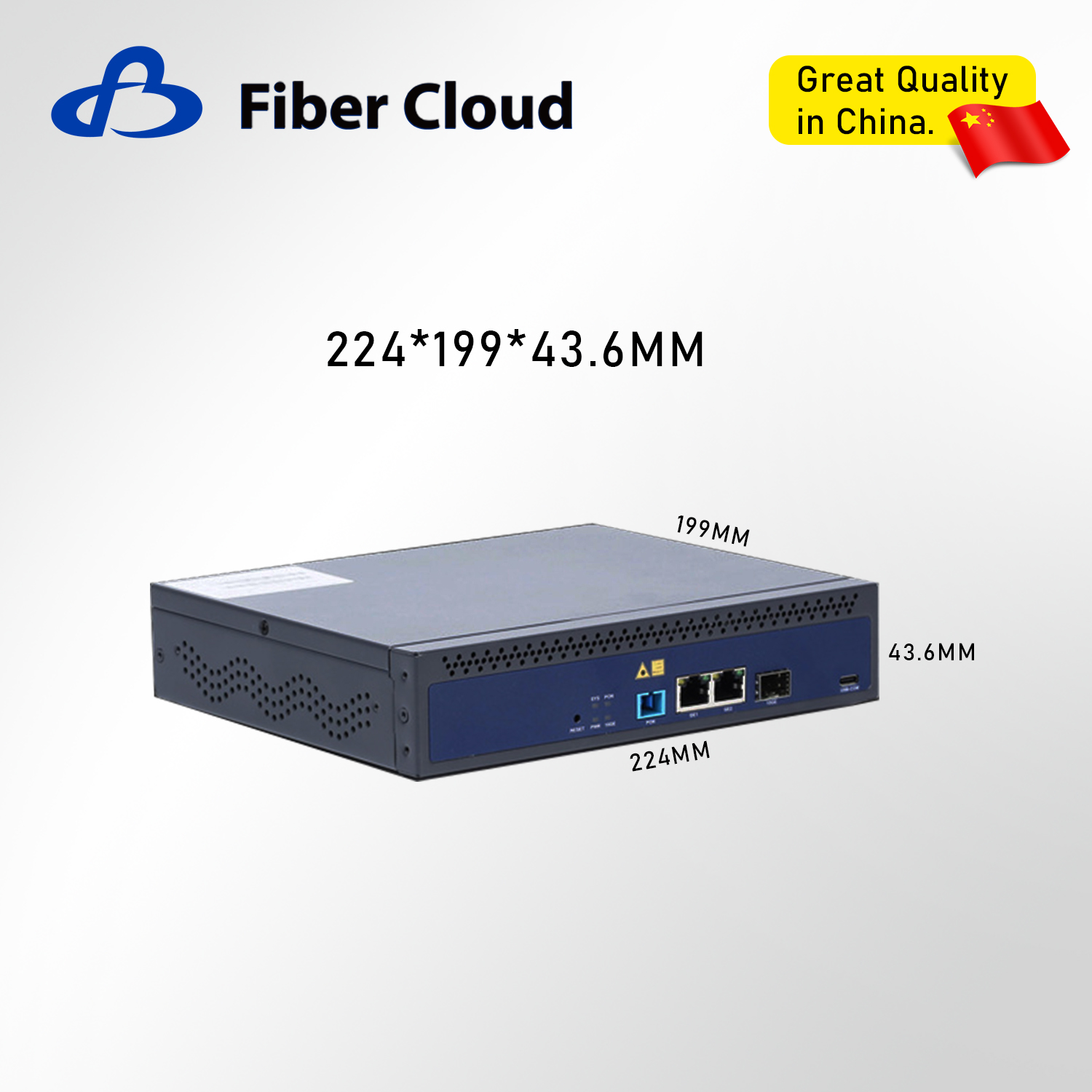

| Dimensions | 224mm(L) × 199mm(W) × 43.6mm(H) |
