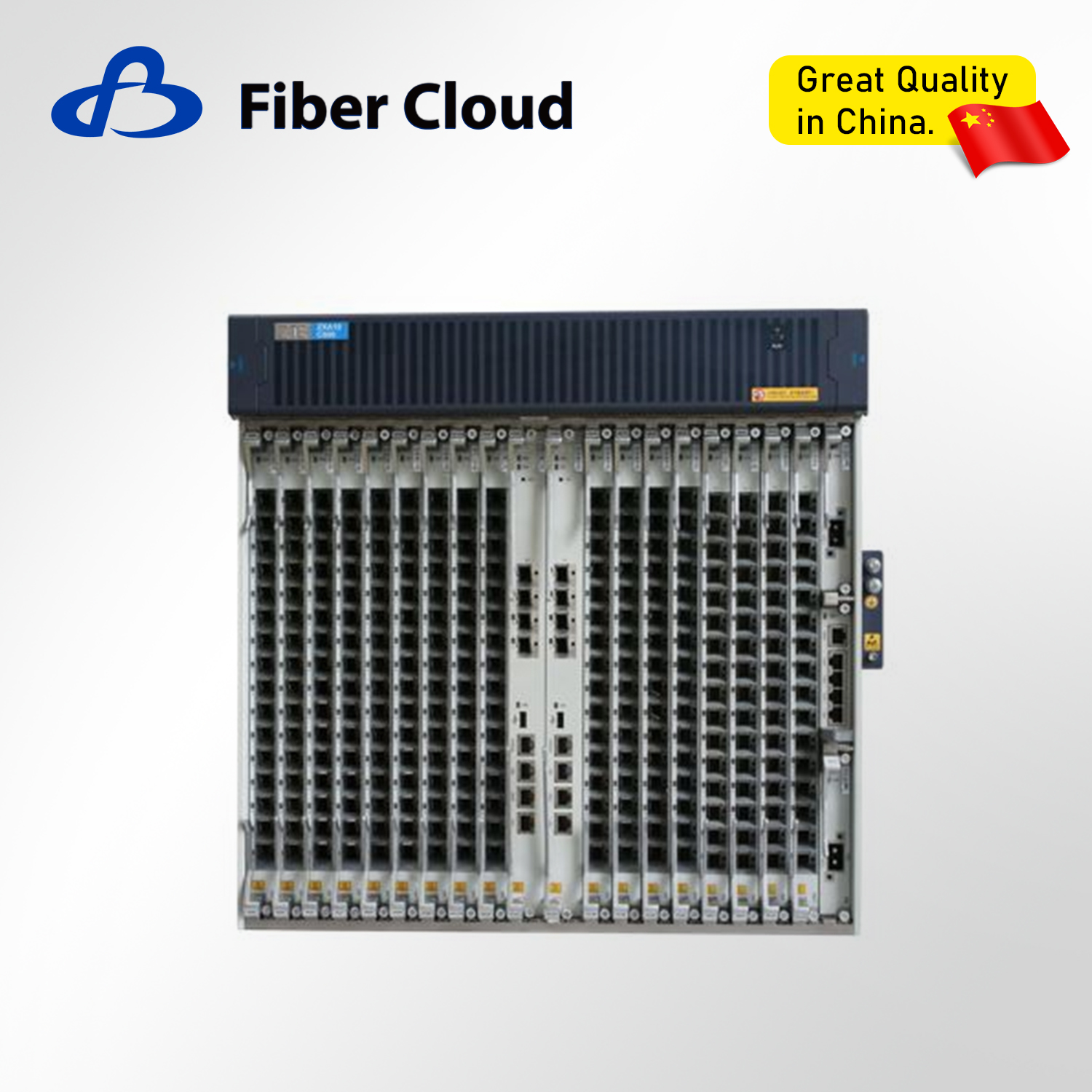

10GE 100GE 11U GPON XG-PON ZXA10 C600 OLT

ZXA10 C600 is a large-capacity optical access OLT device based on the TITAN platform. It can meet the needs of ultra-high bandwidth access, 4k/8K big video and VR, fixed mobile convergence, network reconstruction, and carrier-grade QoS and security guarantees.

Characteristics

11U-height optical access device with 17/15 line card slots and can support272/240 GPON/10G PON ports
Distributed architecture, router platform
Highly integrated, 10G-50G PON cross-generational platformFull series of 16-port GPON/XG Combo/XGS Combo/10GE boards
Support the smooth evolution to 50G PON, save the investment of the customer
Built-in blade server, lightweight NFVl platformProvide a CEM service perception analysis system based on the intelligent board

Availability:



Inquire Add to Basket

Model:
ZXA10 C600
Brand:
ZTE

Product Description

Product Specifications

Model	Parameter
SNI	10GE, 100GE
UNI	PON: GPON, XG-PON, XGS-PON, XG-PON &GPON Combo PON, XGS-PON & GPON Combo PON, Any-PON; P2P: GE/FE, 10GE
Dimensions	21" chassis: 486.1 mm535 mm288.5 mm; 19" chassis: 486.1 mm482.6 mm288.5 mm (HWD)
Weight	21" empty chassis: 21 kg; 19" empty chassis: 18 kg; Full configuration 21" chassis: < 58 kg; Full configuration 19" chassis: < 52 kg
Work voltage	DC: -48V(+/-20%), -60V(+/-20%); -38.4V～-72V
Work current	DC: 60A
Work Temperature	-40°C ~ +65°C, min. start-up temperature is -25°C
Work Humidity	5%-95%

Product Description
