FTTH FTTB FTTX Zte Z300 Epon/Gpon Olt for Network CATV Solution

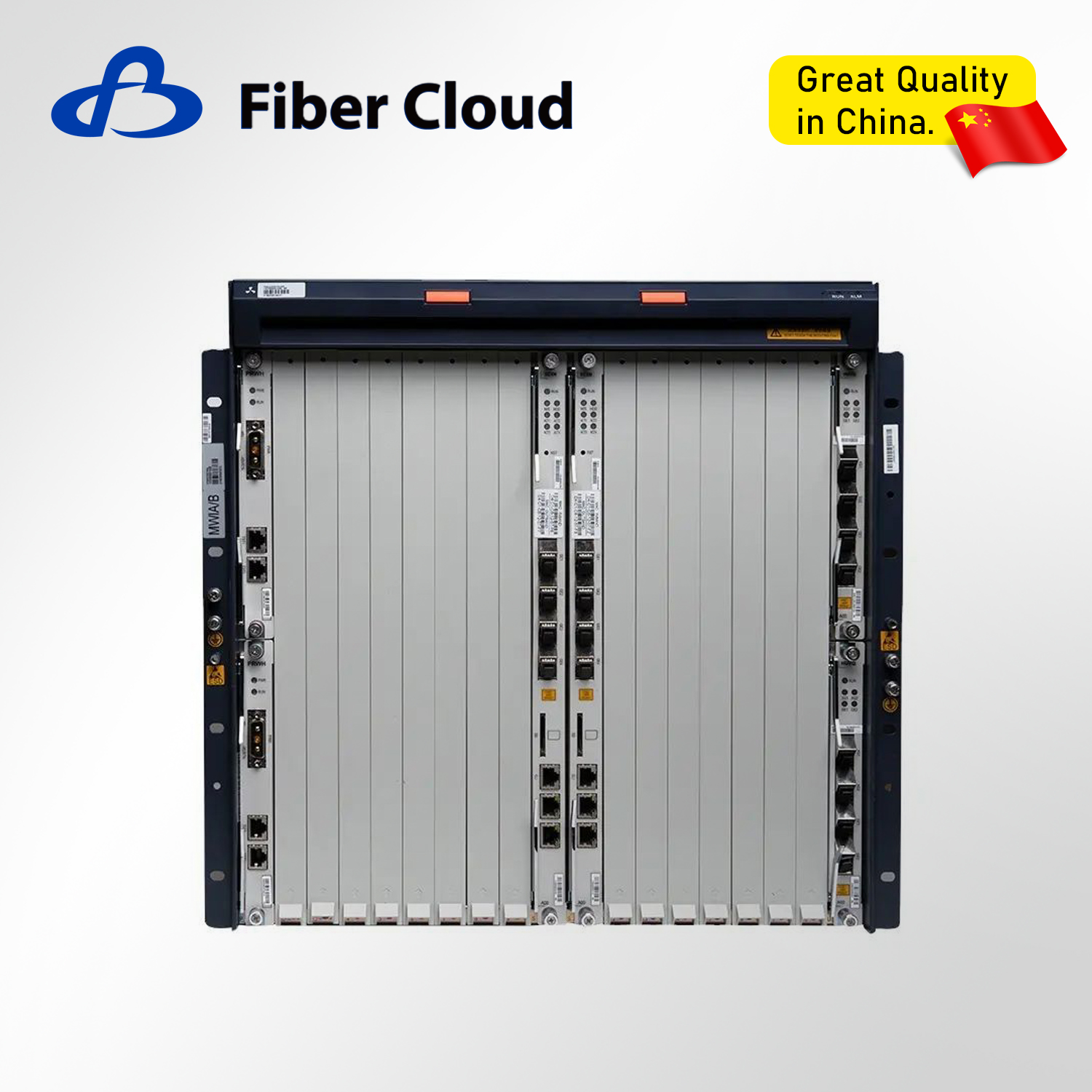

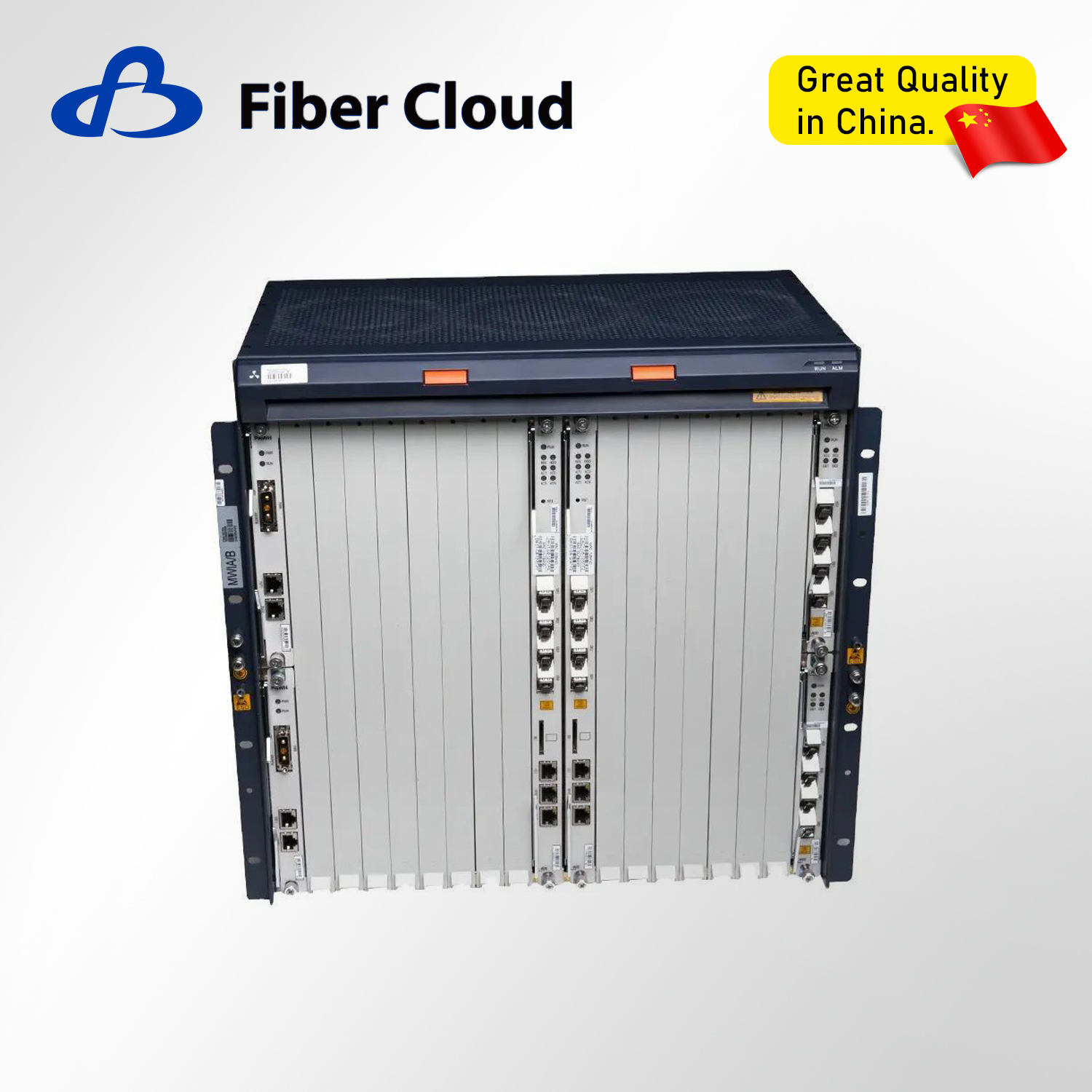

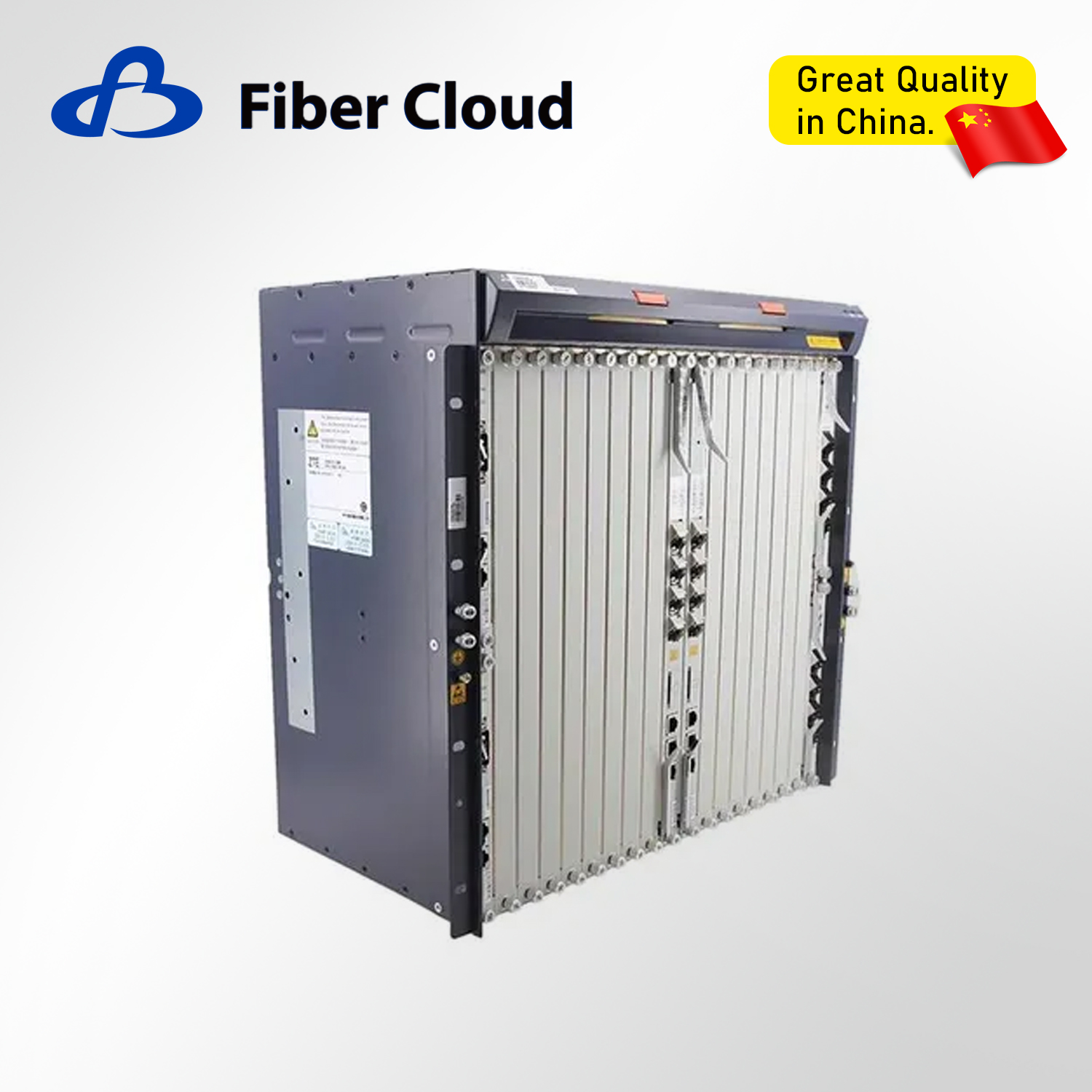

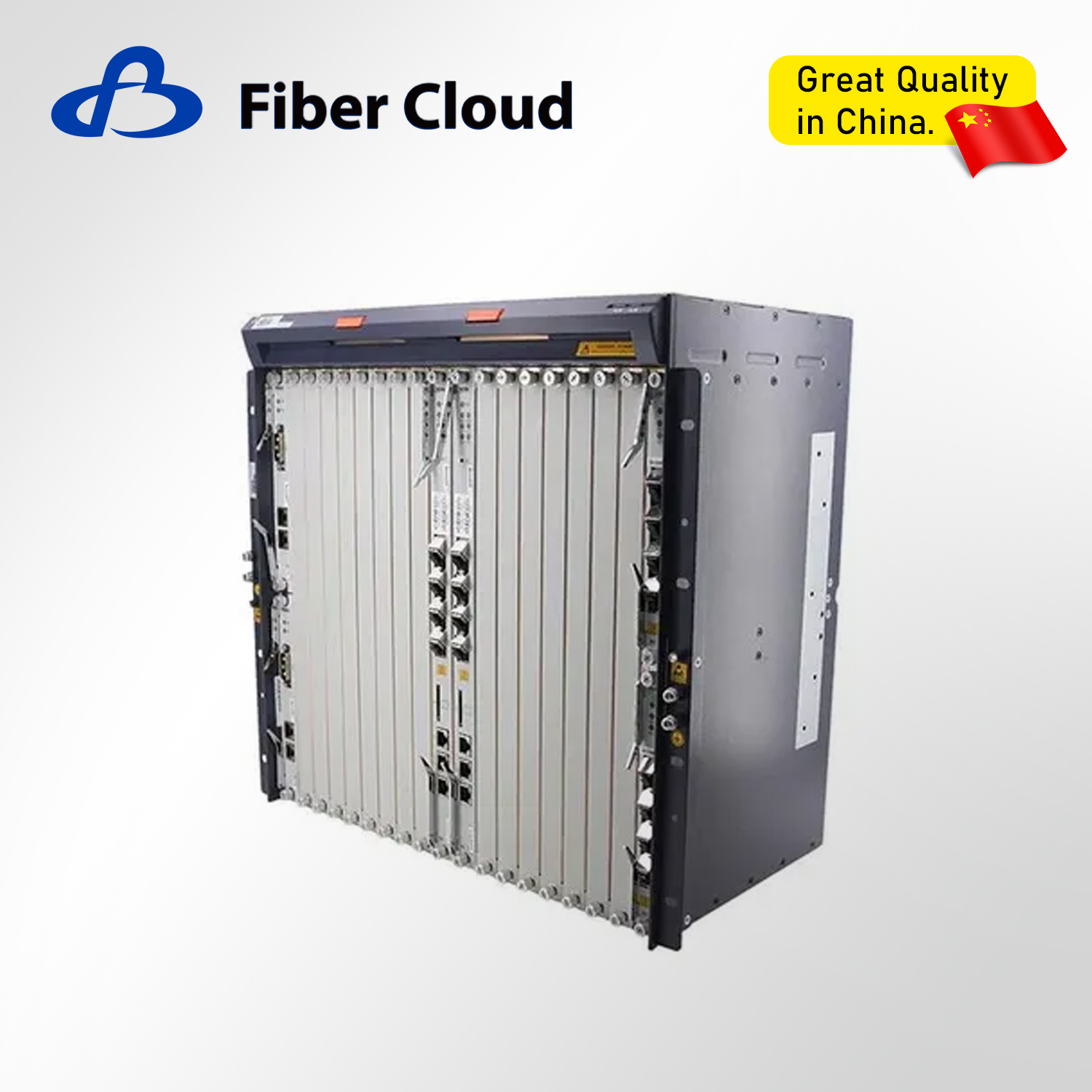

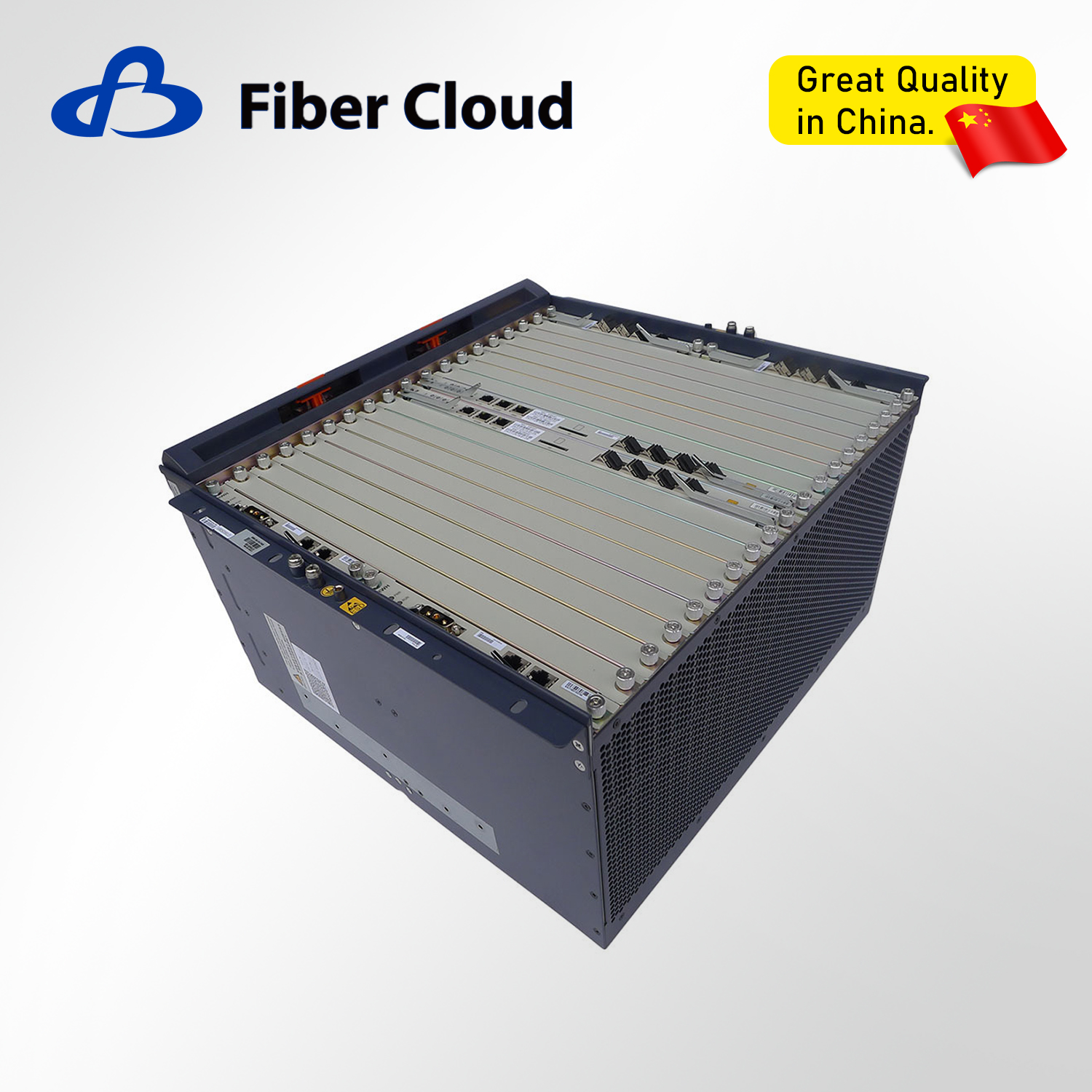

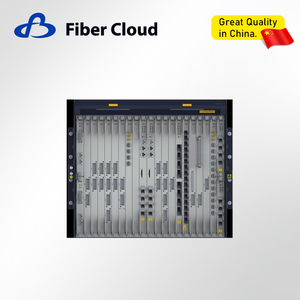

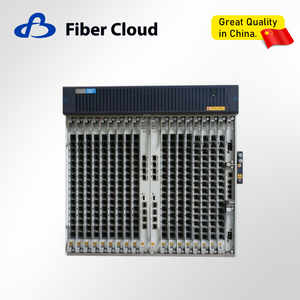

The ZTE ZXA10 C300 OLT is a high-performance optical line terminal designed for next-generation fiber access networks. It supports GPON, XGSPON, and 10G EPON technologies, enabling ultra-broadband services. With high density and scalability, it meets the demands of residential, business, and mobile backhaul scenarios. The platform features advanced QoS, security, and easy maintenance, ensuring reliable operation. It is a future-proof solution for modern multi-service access networks.

Availability:



Inquire Add to Basket

Model:
ZTE Z300

Product Description

Advantages:

Multi-technology support – Integrates GPON, XGSPON, and 10G EPON in a single platform for flexible deployment.
High capacity and density – Supports up to 16 PON ports per slot and 1,024 ONUs per system for large-scale access.
Carrier-class reliability – Offers 1+1 redundancy, Type B protection, and 99.999% availability for uninterrupted service.
Intelligent management – Equipped with ZTE's unified NetNumen N31 system for simplified O&M and automation.
Energy efficiency – Adopts advanced power-saving algorithms and hardware design to reduce operational costs.

Key Features:

Modular design for seamless capacity expansion.
Comprehensive QoS and DBA mechanisms for SLA assurance.
Enhanced security with AES-128 encryption and anti-DoS protection.
SDN/NFV-ready for smooth evolution to virtualized networks.
Standardized interfaces (e.g., XGS-PON, 10GE) for multi-service convergence.

Parameter	Specifications
Backplane capacity:	5,76 Tbit/s
Switching capacity	800 Gbit/s
Number of service cards	14 (GPON/P2P/XG-PON1)
Number of control cards	2
Number of power supply cards	2
Number of uplink cards	2 (10GE/GE/FE/E1/T1)
Maximum number of GPON subscribers	16384
Management Interfaces	CLI, SSH, SNMP, telnet
Dimensions	10U (443,7 x 482,6 x 270 mm)
Power	-48 V (DC)
Working temperature and humidity	-25°C - +55°C, 5% - 95%
Split Ratio	up to 1:256
Range	20-60 km
Maximum attenuation	SFP B+ 28 dB, SFP C+ 32 dB
Dynamic Bandwidth Allocation	NSR-DBA, SR-DBA
Support	FEC, AES128, SCB, OLS
Routing	Static IPV4 a IPV6
Multicast	IGMP Snooping/Proxy/SPR a MLD Snooping/Proxy, 256 multicast VLAN, CAC, PRV, CDR
QoS	8 queues/port, SP, DWRR, DSPC (re)mark, CIR, PIR, EIR
Security features	L2-L4 ACL, IP a MAC source guard, DOS protection, MAC/IP anti-spoofing, Anti-flooding, DHCP 82
Features	VLAN, SVLAN, QinQ, VLAN Stacking, STP/RSTP/MSTP, DHCP Server, DHCP Relay, DHCP Proxy, IPv4/IPv6 dual stack

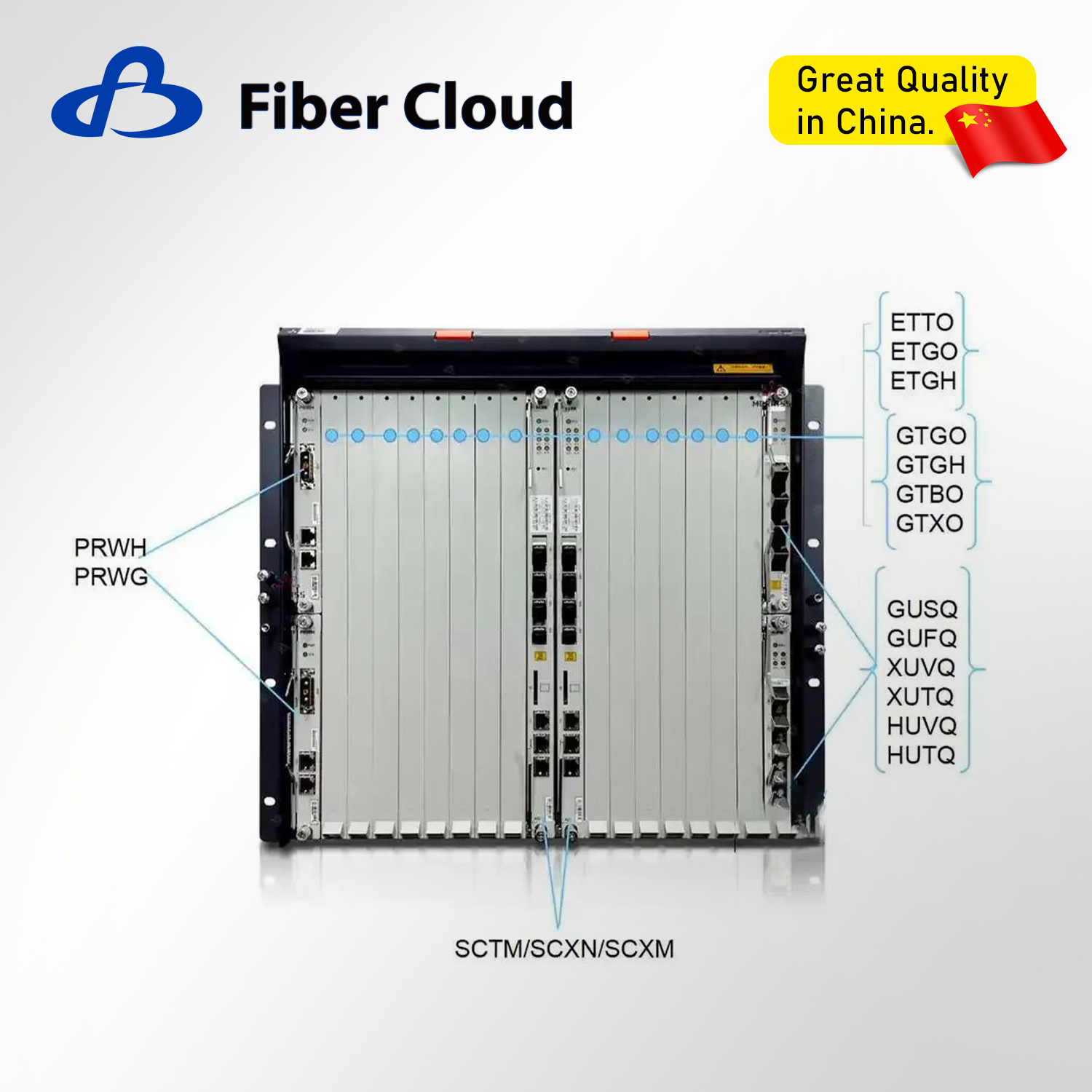

Control and switching cards	SCTM - Suitable for XGPON1, supports 16 port GPON cards,higher switching power, 4x 10GE uplink interface, 2x management interface
	SCXN - Supports 16 port GPON cards, 4x GE uplink interface, 2x management interface
	SCXL - No uplink interfaces, 2x management interface
GPON cards	GTXO - 4/8 XGPON1 ports, split ratio up to 1:256
	GTGO - 8 GPON ports, split ratio up to 1:256
	GTGH - 16 GPON ports, split ratio up to 1:128
	FTGK - 48 P2P ports (WDM) or 24 GE ports (separated fibers for uplink / downlink)
Uplink cards	GUFQ - 4x SFP (GE)
	GUSQ - 2x SFP (GE), 2x RJ45 (GE)
	XUTQ - 4x SFP (10GE)
	HUTQ - 4x SFP (2x10GE, 2xGE)
	HUVQ - 4x SFP (2x10GE/GE, 2xGE/FE)

FTTH FTTB FTTX Network Epon/Gpon Zte Z300 Olt ONU CATV Solution
