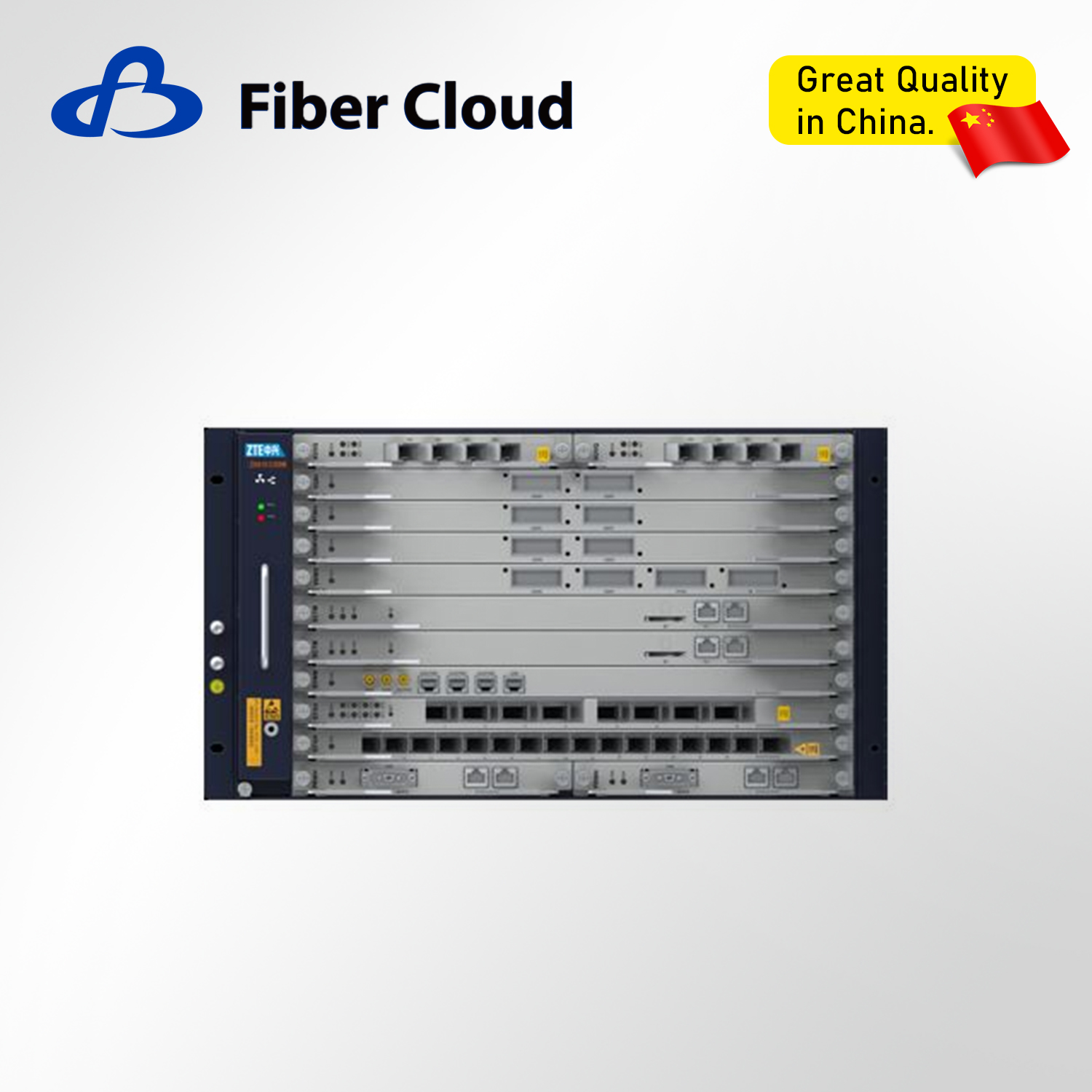

1/10GE GPON XG-PON ZXA10 C350M hybrid fiber & copper platform solution

The ZXA10 C350M is a medium-capacity hybrid fiber & copper platform that provides the most comprehensive broadband access technologies including copper accesses, fiber accesses, and legacy narrow-band accesses. Industry's exclusive hybrid fiber & copper platform fully Supporting broadband & narrowband services.

Characteristics

Traditional VolP service such as POTS,ISDN BRAPRI, E1. V5, DDN
Copper broadband access such as ADSL2+,VDSL2.VDSL2 17a/35b Vectoring
Fiber broadband access such as GPON,XG-PON,XGS-PON,P2P
One platform, fiber and copper dual-access with broadband and narrowband dual-service
Two generations of PON technologies GPON and XG($)-PON which double life-cycle
Industry's exclusive hybrid & copper platform in support of XG(S)-PON and Combo PON
Seamless shift among full copper acess, hybrid fiber & copper access, and full filber access platform justby changing line cards

Availability:



Inquire Add to Basket

Model:
ZXA10 C350M
Brand:
ZTE

Product Description

Product Specifications

Model	Parameter
SNI	GE, 10GE, GPON, XG-PON, E1
UNI	POTS, ISDN BRI/PRI, E1, V.35, 2/4 wire audio ADSL2/2+, SHDSL, VDSL2, VDSL2 17a/35b Vectoring, ADSL2+&POTS Combo, VDSL2&POTS Combo; GPON, XG(S)-PON, Combo PON, GE/FE P2P
Dimensions	263.9 mm482.6 mm240 mm（HWD)
Weight	Empty chassis: 3 kg; Full configuration: 20 kg
Work voltage	DC: -48V(+/-20%), -60V(+/-20%); -38.4V～-72V
Work current	DC: 20A
Work Temperature	-40°C ~ +65°C, min. start-up temperature is -25°C
Work Humidity	5%-95%
