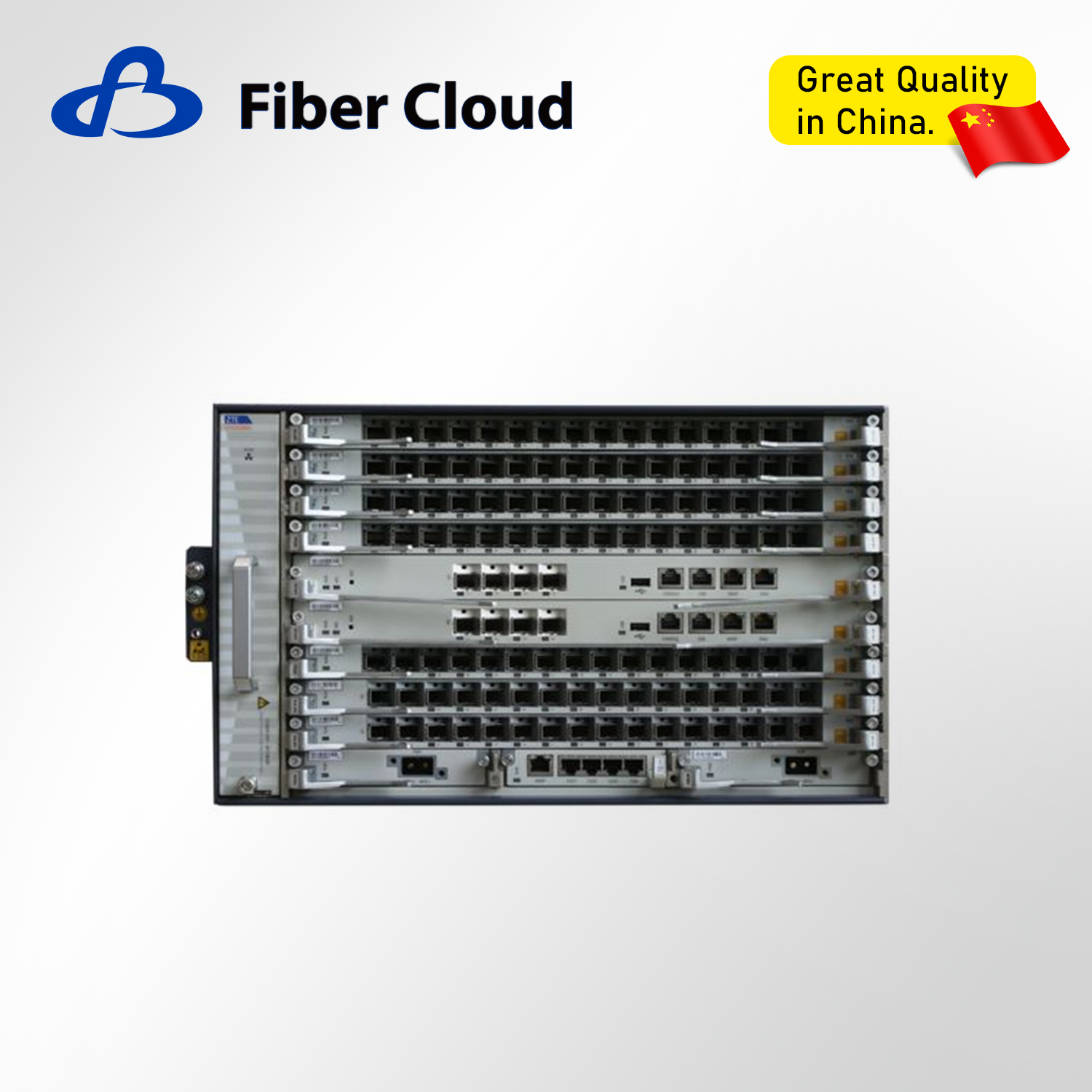

10GE 100GE 6U GPON XG-PON ZXA10 C650 OLT

ZXA10 C650 is a medium-capacity optical access OLT device of the TITAN series, which has the characteristics of distributed, ultra-broadband, fixed mobile convergence, and virtualization. Support the long-term smooth evolution of access network 10G~50G PON, and meet the development needs of big video, massive connections and network reconstruction.

Characteristics

6U-height optical access device with 7 line card slots and can support 112GPON/10G PON ports
10G-50G PON cross-generational platformFul series of 16-port GPON/XG Combo/XGS Combo/10GE boards
FTTH+government and enterprise/industry/5G, etc. share FTTx resources
Built-in blade server, lightweight NFV platform

Availability:



Inquire Add to Basket

Model:
ZXA10 C650
Brand:
ZTE

Product Description

Product Specifications

Model	Parameter
SNI	10GE, 100GE
UNI	PON: GPON, XG-PON, XGS-PON, XG-PON &GPON Combo PON, XGS-PON & GPON Combo PON, Any-PON; P2P: GE/FE, 10GE
Dimensions	263.9 mm482.6 mm285.3 mm (HWD)
Weight	Empty chassis: 12 kg; Full configuration: < 30 kg
Work voltage	DC: -48V(+/-20%), -60V(+/-20%); -38.4V～-72V
Work current	DC: 30A
Work Temperature	-40°C ~ +65°C, min. start-up temperature is -25°C
Work Humidity	5%-95%

Product Description
