| Parameter | Specifications |
| Working Wavelength | 1310nm (RX) / 1490nm (TX) |
| Optical Power | +3 ~ +7dBm |
| Receiving Sensitivity | -27dBm |
| Transmission Distance (MAX) | 20km |
| Split Ratio (MAX) | 1:64 |
| Machine Capacity | Supports 256 ONUs |
| Backplane Bandwidth | 52G |
| MAC Address Table | 16K |
| Uplink Interface | 2×1GE Ethernet uplink + 4×1GE SFP uplink |
| PON Interface | 4×SC PON interface |
| Management Interface | WEB, CLI |
| MTBF | 100,000 hours |
| EPON Features | - Fully compliant with IEEE 802.3ah
- Supports Dynamic Bandwidth Allocation (DBA), minimum granularity 1Kbps
- Supports link bandwidth monitoring and loop detection
- Supports symmetrical 1.25Gbps bandwidth
- Supports AES-128 encryption per logical link
- Powerful OAM for remote ONU management, maintenance, and upgrade
- Supports ONU auto-discovery and registration (plug-and-play)
- Supports PON port TX/RX optical power detection |
| Supported Protocols | - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- IEEE 802.1Q VLAN |
| Network Management | - WEB-based GUI (Chinese/English)
- Supports 4K VLANs, port-based VLAN
- Supports loop detection
- CLI, CONSOLE, and TELNET configuration |
| Other Functions | - Supports IGMP v1/v2 and IGMP Snooping
- Supports ONU batch configuration |

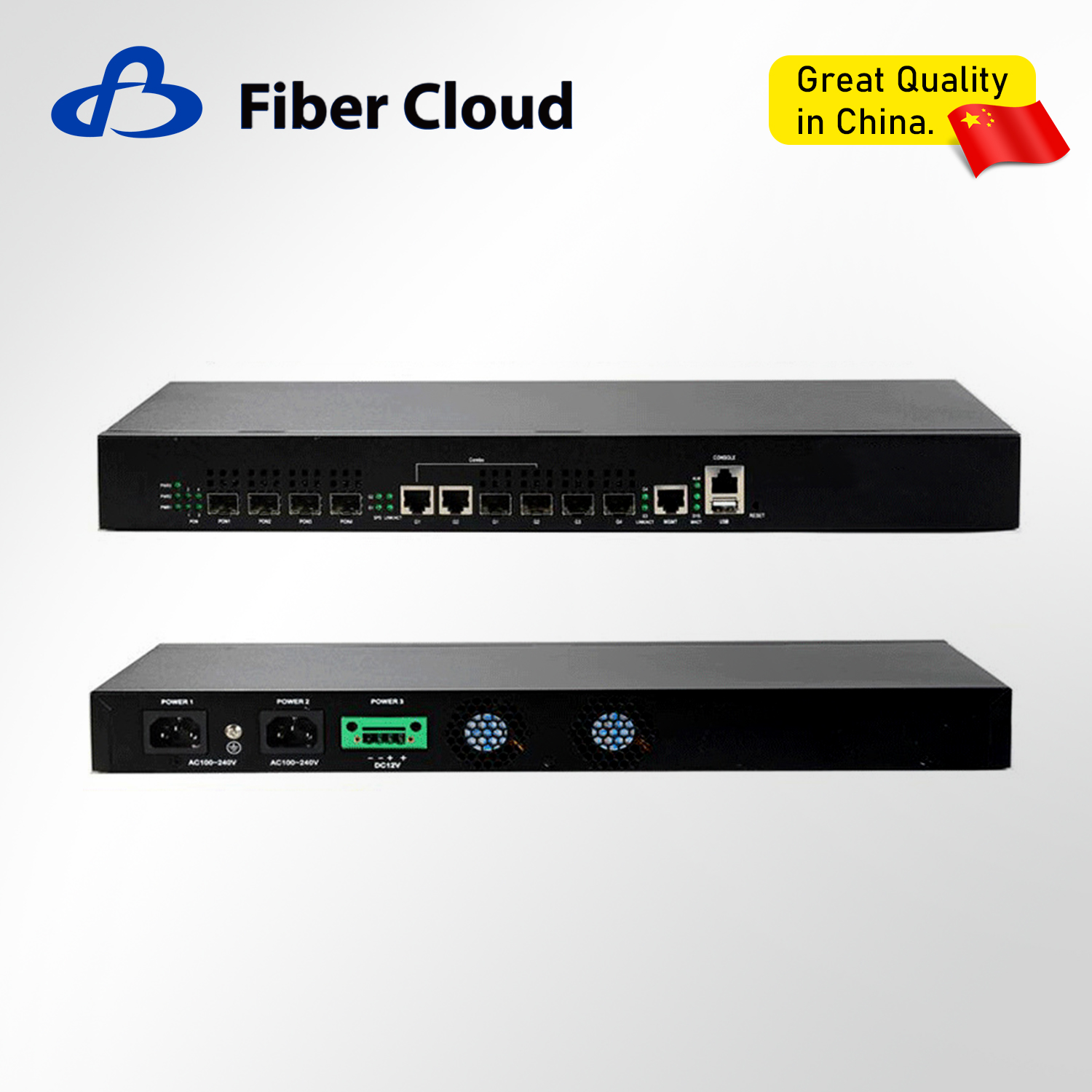

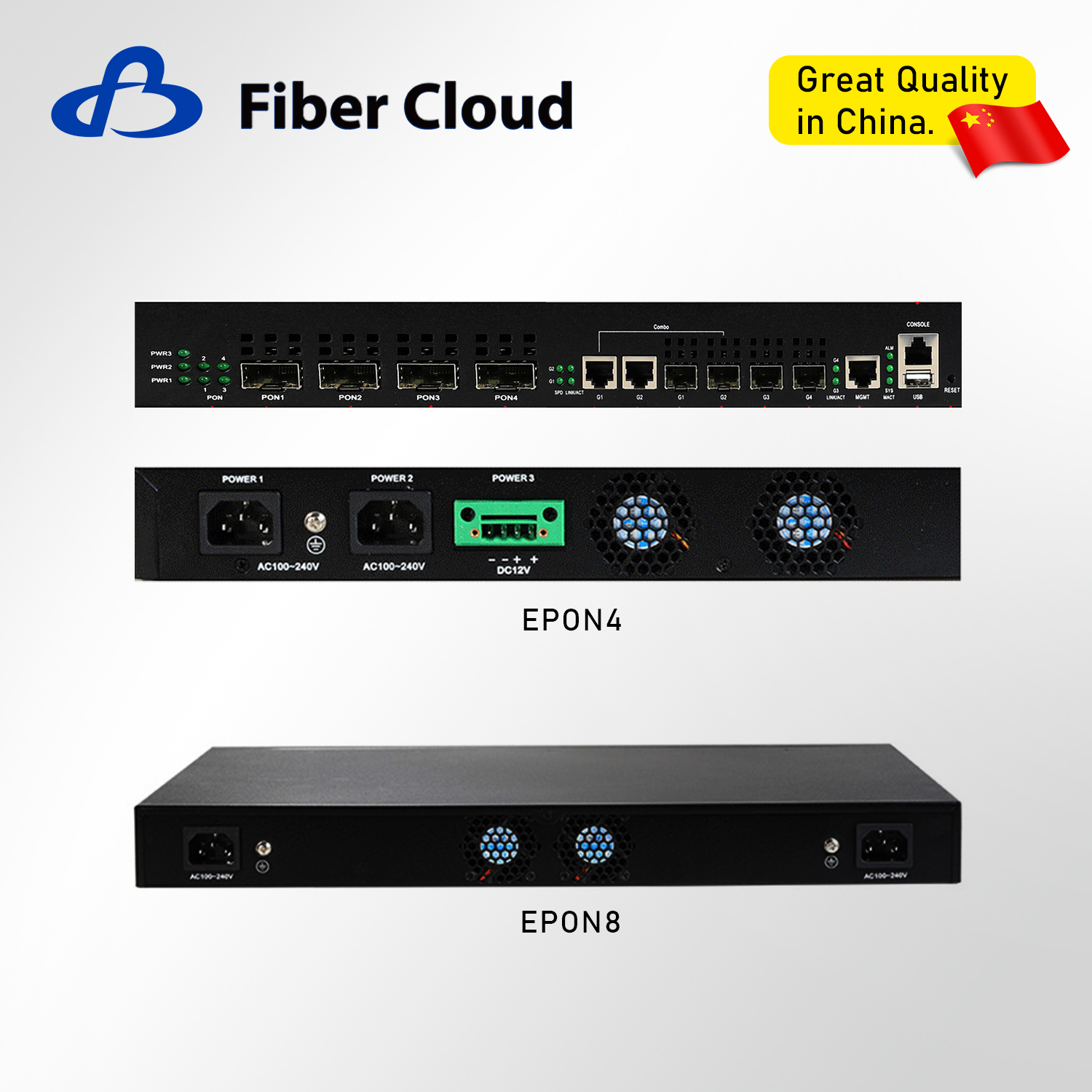

| Power Supply | AC 100-240V dual power supply
DC 12V external interface |
| Power Consumption | 25W |
| Operating Temperature | -10°C ~ 55°C |
| Storage Temperature | -40°C ~ 70°C |

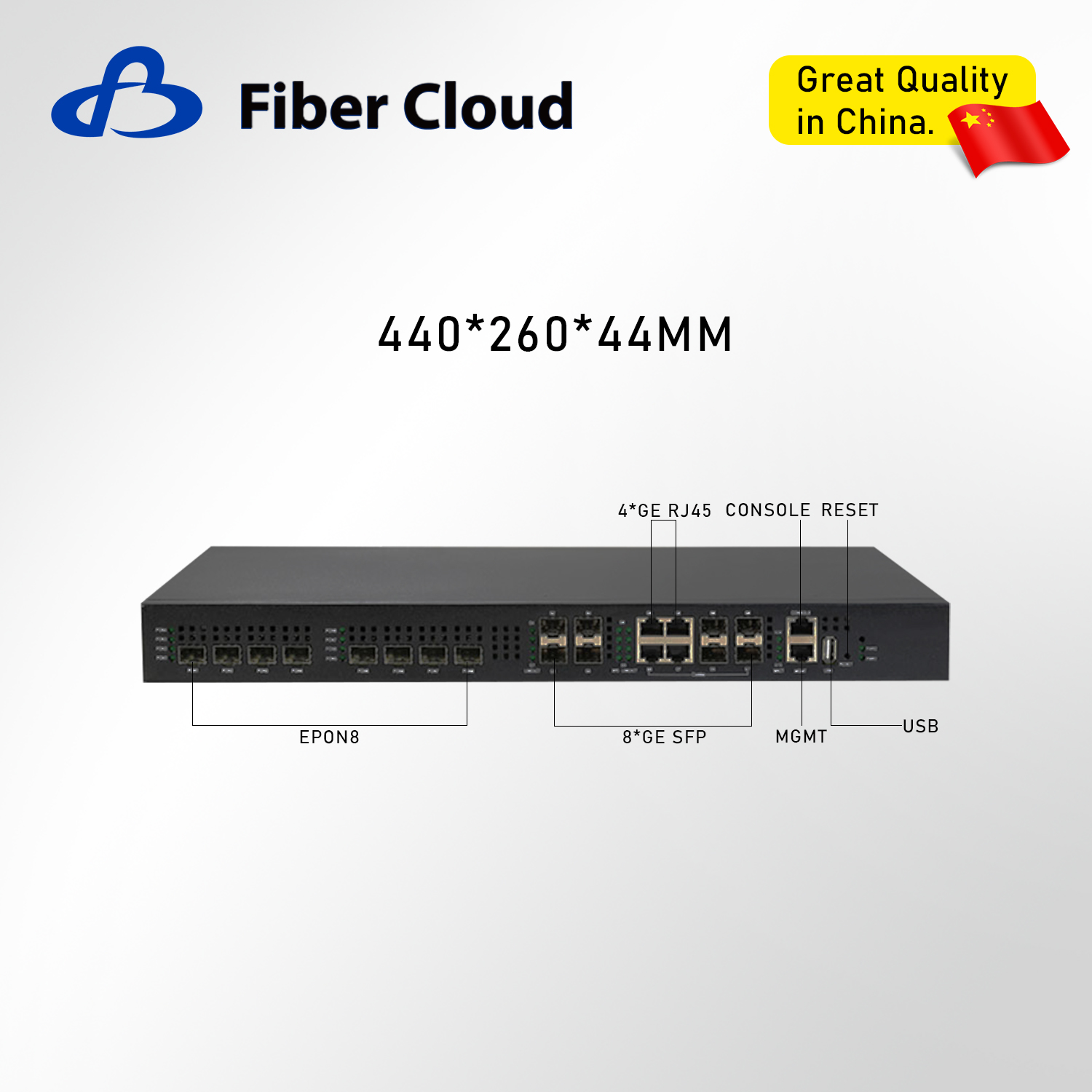

| Equipment Size | 44cm (L) × 21cm (W) × 4.4cm (H)
(With ears, fits 19-inch rack) |
