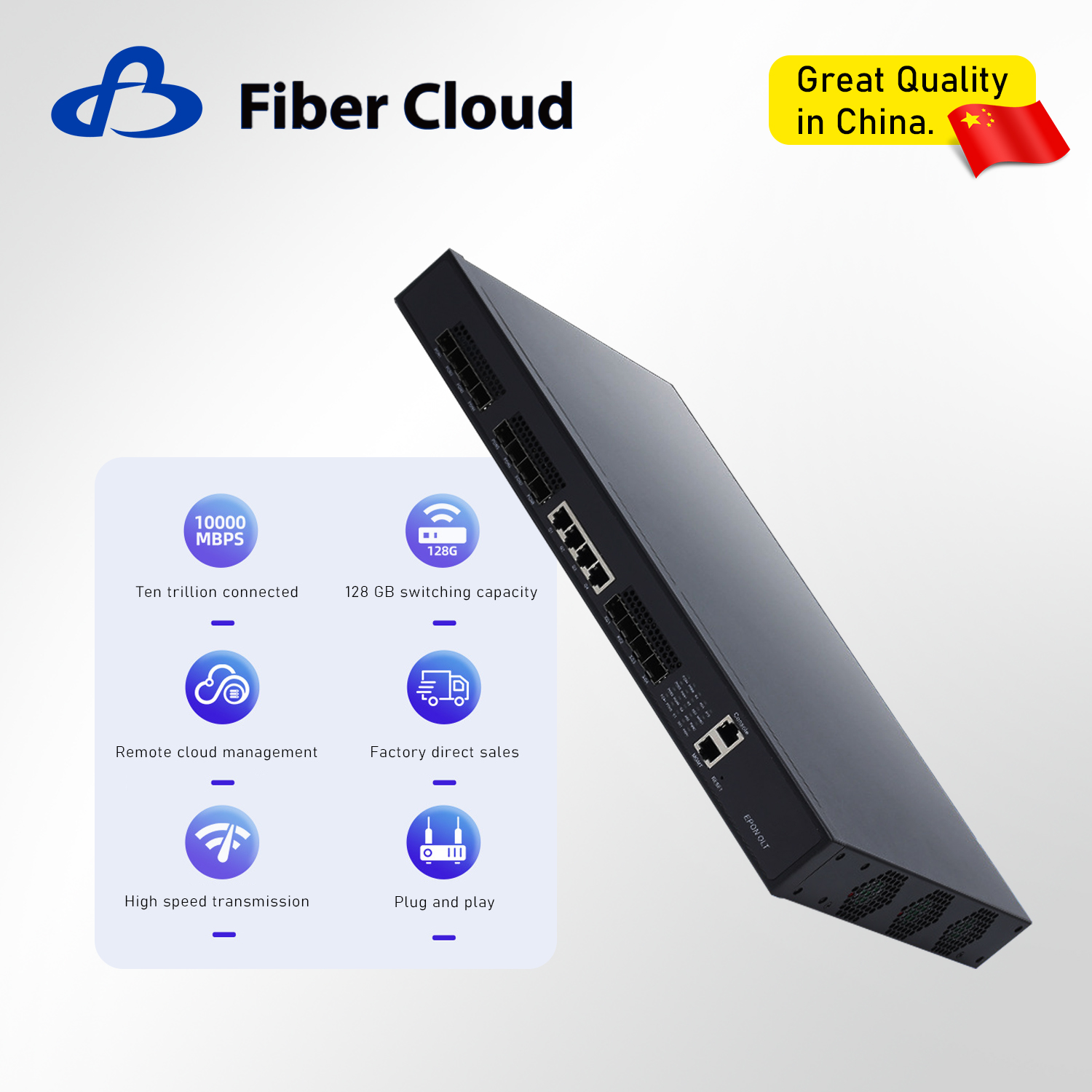

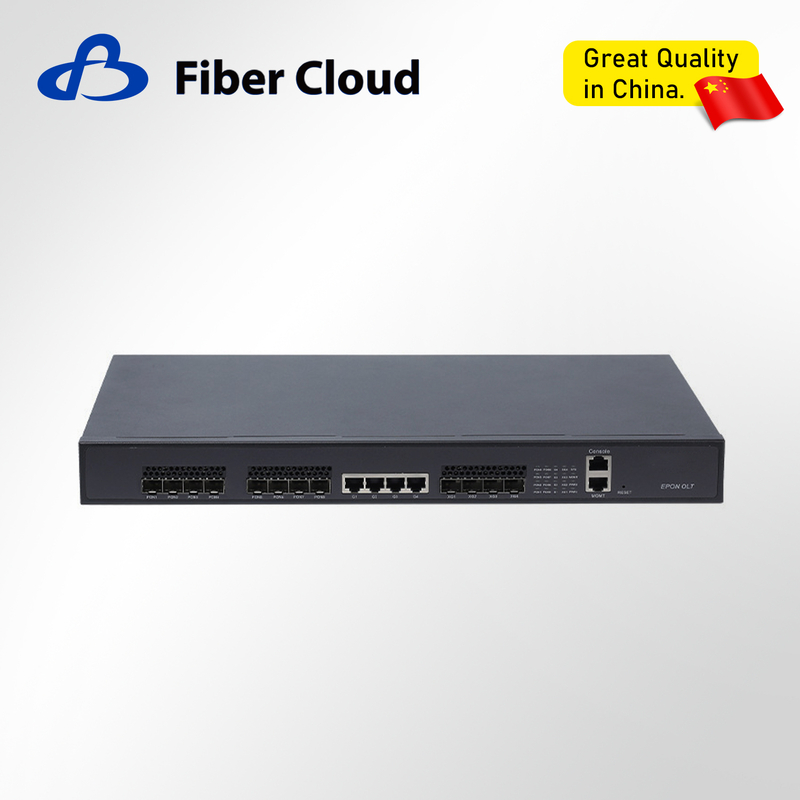

FTTH Epon ONU 8 Ports SFP Fiber Optical Terminal Network Products Mini Olt

FTTH EPON ONU 8-Port SFP Fiber Optical Terminal is a customer-premises equipment (CPE) in a passive optical network (PON) architecture. It serves as an optical network terminal that converts fiber-optic signals from the OLT into electrical signals and delivers high-bandwidth data, voice, and video services via its eight SFP ports for flexible fiber uplink connections.Key advantages include high scalability and density due to its multi-port design, hot-swappable SFP interfaces for adaptable fiber connectivity, and carrier-class reliability with advanced QoS and DBA features. It is designed for ease of deployment, management, and maintenance in demanding access scenarios.This device is typically used in fiber-to-the-home (FTTH) and fiber-to-the-building (FTTB) deployments, providing high-speed Internet, VoIP, and IPTV services for residential and business subscribers. It can also function as a mini OLT in small-scale or cascaded PON systems to extend optical network coverage.

Characteristics

IEEE 802.3ah EPON
1.25Gbps uplink/downlink per port
ONU auto-discovery, remote configuration (OMCI)
Firmware upgrades via WEB/CLI/Telnet
DBA, VLAN tagging/transparent transmission, and ACL for traffic prioritization
AES-128 encryption, port isolation, and broadcast storm suppression
Operates in -10°C to +55°C environments
1:32 split ratio for flexible FTTH/FTTB deployments

Availability:



Inquire Add to Basket

Model:
NF5808VX

Product Description

Product Application

Road monitoring

Cell broadband

Factory park

Hotels, guest houses

Product Specifications

Parameter	Specifications
Brand & Model	Aoyuan NF5808VX
Installation	Standard 1U Rack
Optical Power	+2.5~+7dBm
Input Voltage	220VAC AC: 100V~240V (Single or Dual Power Supply)
Operating Temperature	-10~55°C
Dimensions (WHD)	440mm44mm260mm
EPON Standards	Compliant with IEEE 802.3ah, YD/T 1475-2006, and CTC 2.0/2.1/3.0 standards

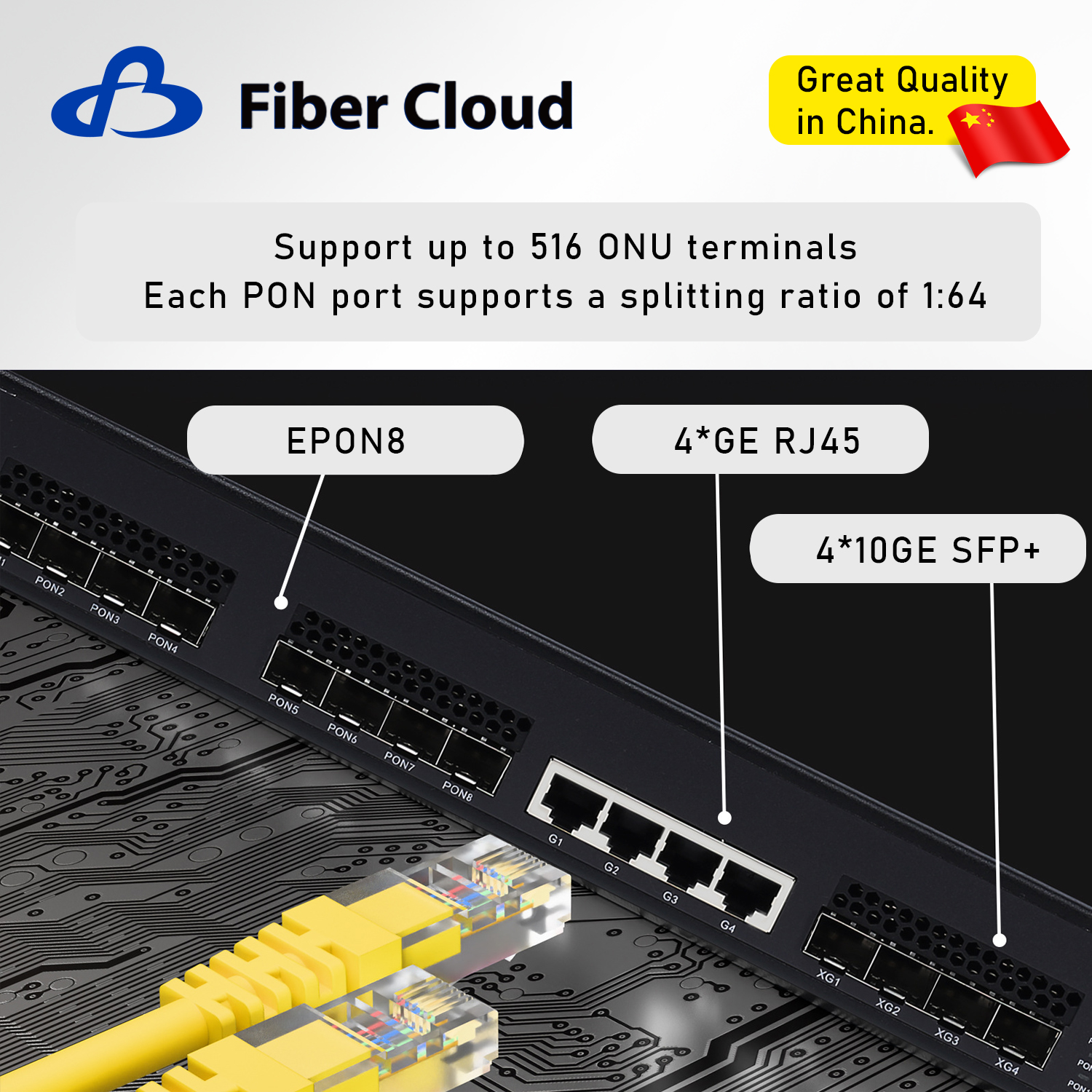

Interfaces	EPON ports × 8 10G SFP+ uplink ports × 4 GE RJ45 uplink ports × 4 MGMT port × 1 Console port × 1
Network Management	Supports local/remote CLI configuration Supports in-band and out-of-band management Supports WEB-based configuration
VLAN	Supports 4096 VLANs (add, transparent transmission, conversion, deletion) Supports VLAN stacking (QinQ)
LED Indicators	PW1, PW2:Power supply status PON1–PON8:Link/Active status of 8 PON ports XG1–XG4:Link/Active status and speed of 4 SFP+ uplink ports G1–G4:Link/Active status of 4 RJ45 uplink ports
Security Features	Supports AES and Triple Churning encryption for PON ports Supports ONU MAC address binding and filtering
Management & Maintenance	Supports OLT configuration backup and factory reset Supports OLT online firmware upgrade Supports offline service configuration and auto-provisioning for ONUs
Other Functions	Supports Dynamic Bandwidth Allocation (DBA) Supports automatic ONU MAC binding and filtering, offline service configuration, and auto-provisioning Supports 32K MAC addresses; hardware-based wire-speed MAC address learning Supports priority queue scheduling (SP, WRR, or SP+WRR algorithms) Supports port mirroring and port trunking Provides logs, alarms, and performance statistics Supports IGMP v1/v2 snooping and proxy, CTC-controlled multicast
