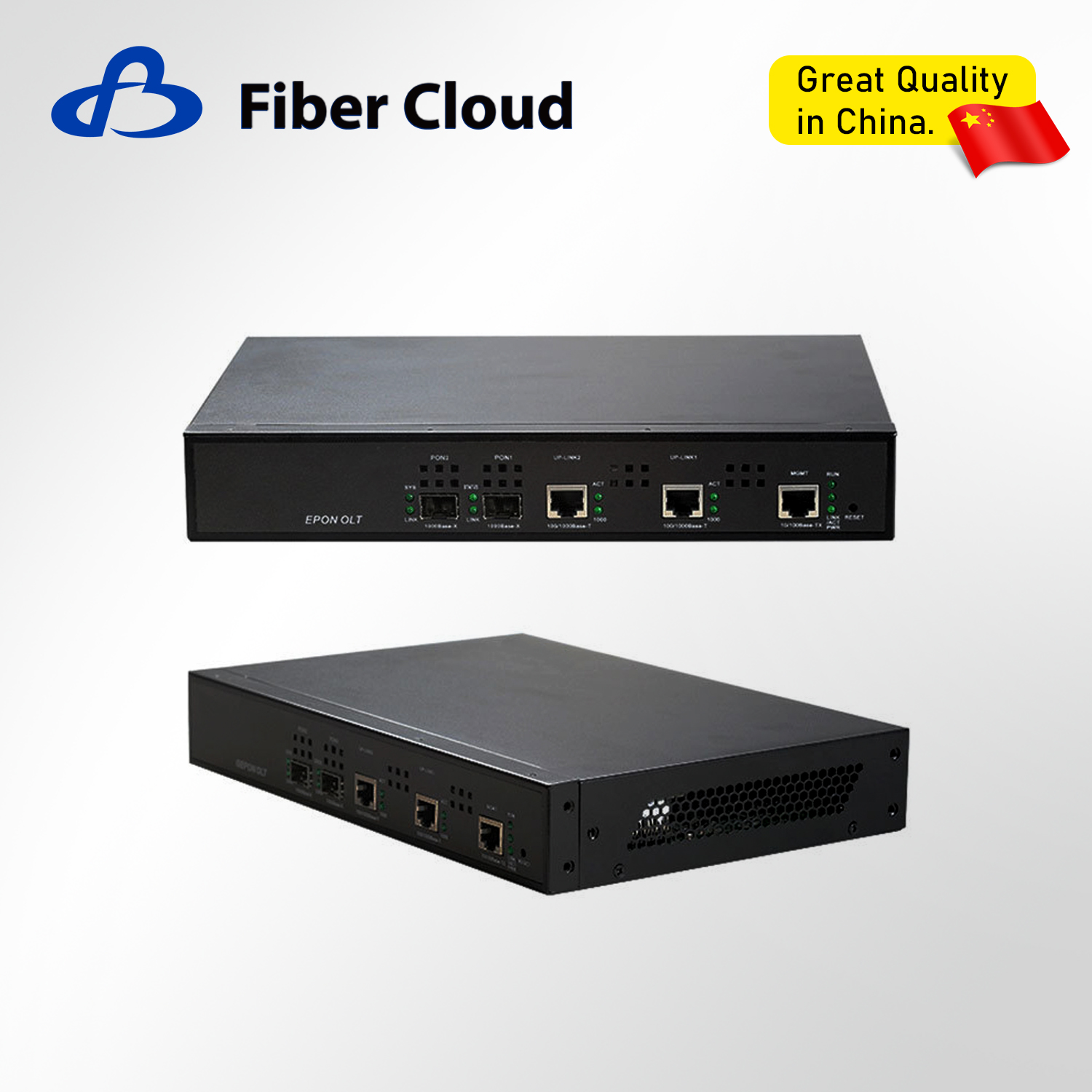

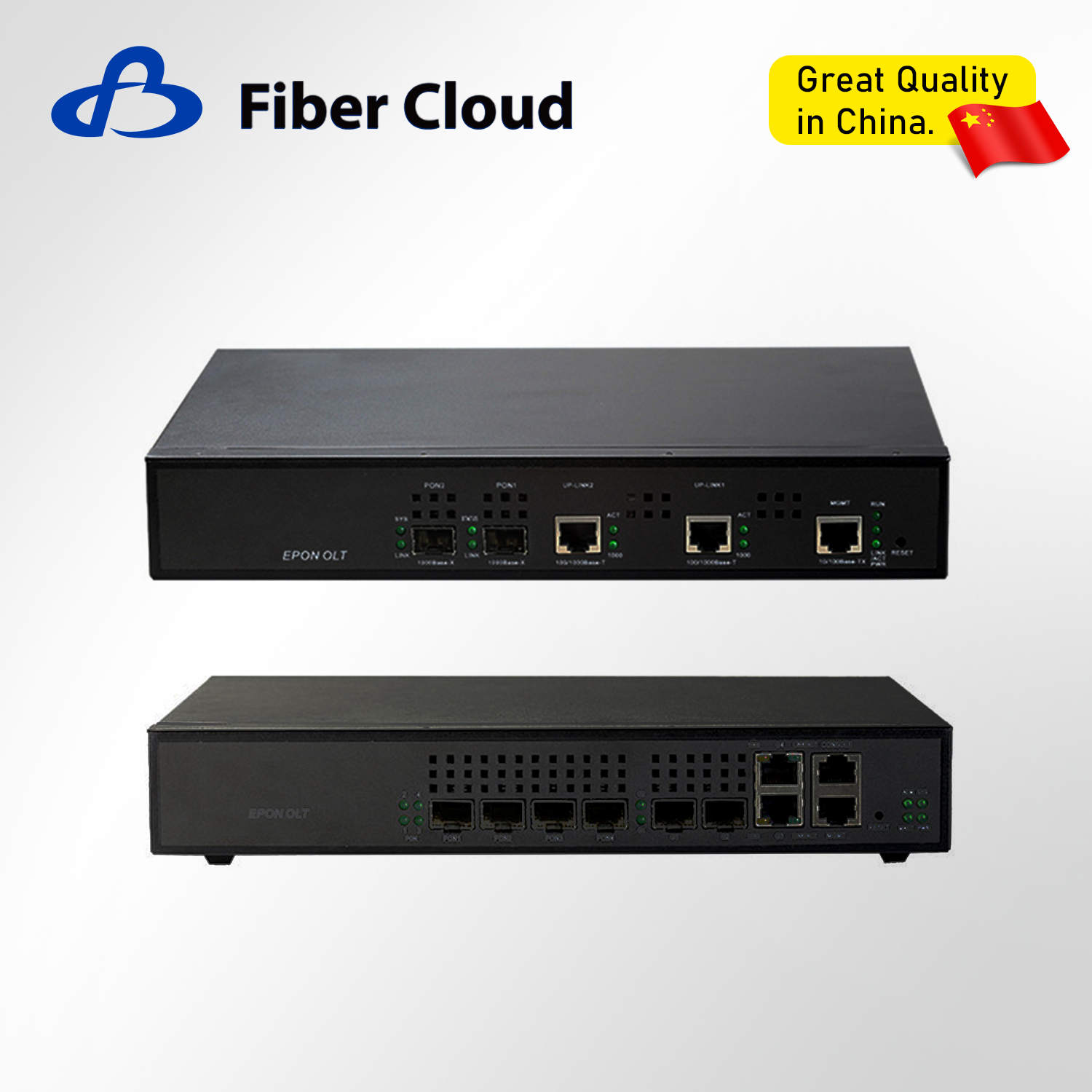

FTTH 2/4 1u Ports Fiber Optic Terminal Equipment Epon Olt with SFP Module

The 2 and 4-port EPON OLTs are high-performance optical line terminals designed for efficient fiber access networks, supporting up to 1:64 split ratios and 20km transmission distances. These OLTs comply with IEEE 802.3ah standards, offering symmetric 1Gbps bandwidth, dynamic allocation (DBA), and AES-128 encryption for secure data transmission. They feature dual Gigabit uplinks (SFP + electrical) and support remote ONU management, including auto-discovery, power monitoring, and batch configuration. With 48G backplane capacity and 256 ONU support, they ensure scalable and stable. deployments in FTTH/FTTx applications.
Characteristics

100,000-hour MTBF and robust OAM
Web GUI, CLI, SNMP, and TELNET
Low 20W power consumption
wide-temperature operation (-10°C to 55°C)
Supports 4K VLANs, IGMP snooping, and high-density ONU scaling

Availability:



Inquire Add to Basket

Model:
NF5802/NF5804

Product Description

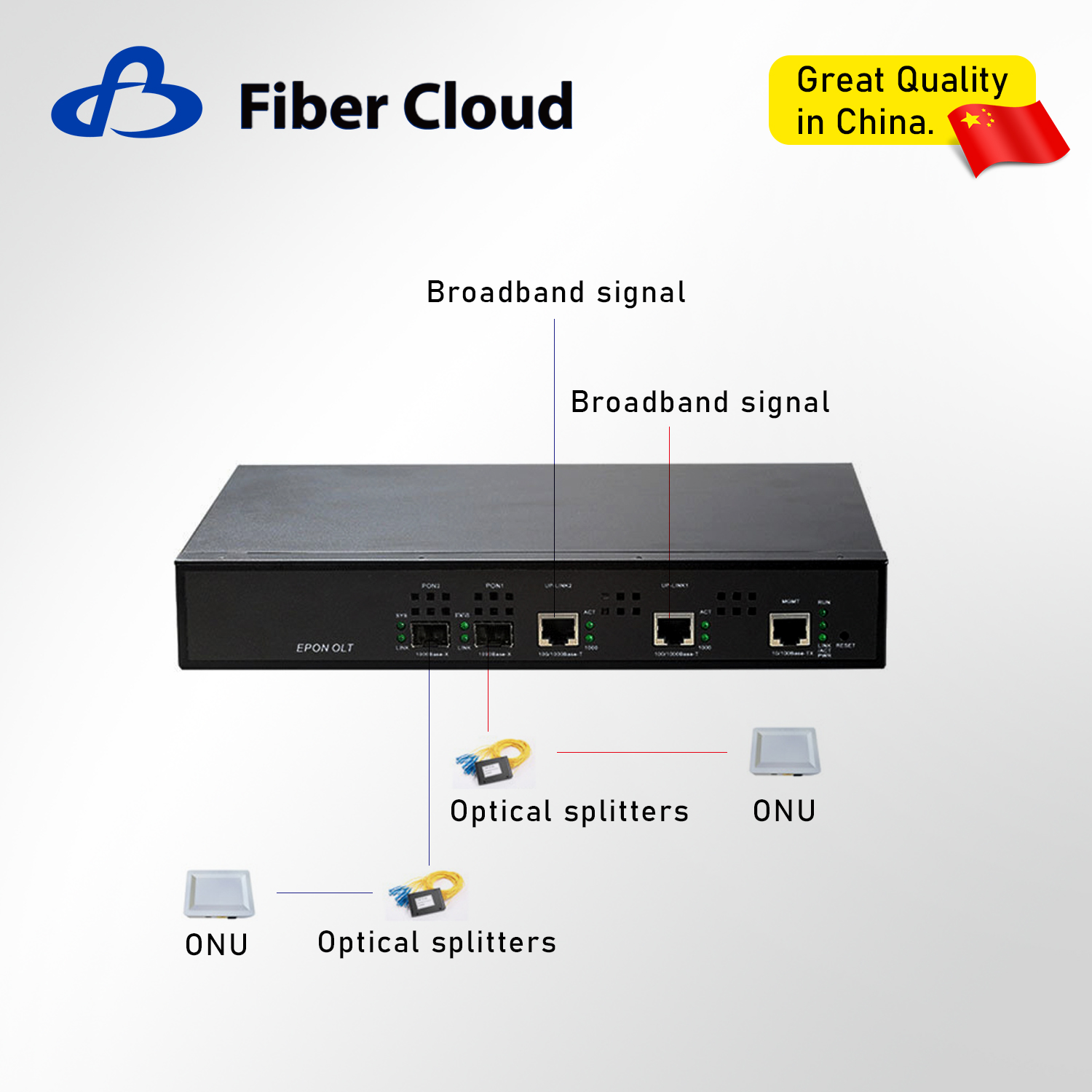

Product Application

Road monitoring

Factory park

Cell broadband

Hotels, guesthouses

Product Specifications

Parameter	Specification
Model	NF5804
Operating Wavelength	1310nm (RX) / 1490nm (TX)
Optical Power	+3 to +7dBm
Receiver Sensitivity	-27dBm
Maximum Transmission Distance	20km
Maximum Split Ratio	1:64
Maximum ONU Capacity	256 ONUs
Backplane Bandwidth	48G
MAC Address Table	16K
Uplink Interfaces	2 Gigabit SFP optical ports + 2 Gigabit electrical ports
PON Interfaces	4 SC PON ports
Management Interfaces	WEB, SNMP, TELNET, CLI
MTBF	100,000 hours
EPON Features
Supported Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN
Dynamic Bandwidth Allocation (DBA)	Minimum adjustment granularity: 1Kbps
Symmetric Bandwidth	1Gbps uplink/downlink
Encryption	AES-128 encryption per logical link
OAM Functionality	Remote ONU management, maintenance, and upgrade
ONU Auto-Discovery	Plug-and-play support
PON Power Monitoring	Supports optical power detection for TX/RX
Network Management
Management Interface	WEB-based Chinese GUI, user-friendly
VLAN Support	Up to 4K VLANs
ONU Monitoring	View ONU status, optical power, etc.
ONU Control	Restart, factory reset, etc.
Configuration Methods	CLI, CONSOLE port, TELNET, SNMP
Other Features
Multicast Support	IGMPv1/v2, IGMP Snooping
Batch Configuration	Supports ONU batch configuration
Power Specifications
Power Supply	AC 100-240V built-in power supply
Power Consumption	20W
Environmental Specifications
Operating Temperature	-10 to 55°C
Storage Temperature	-40 to 70°C

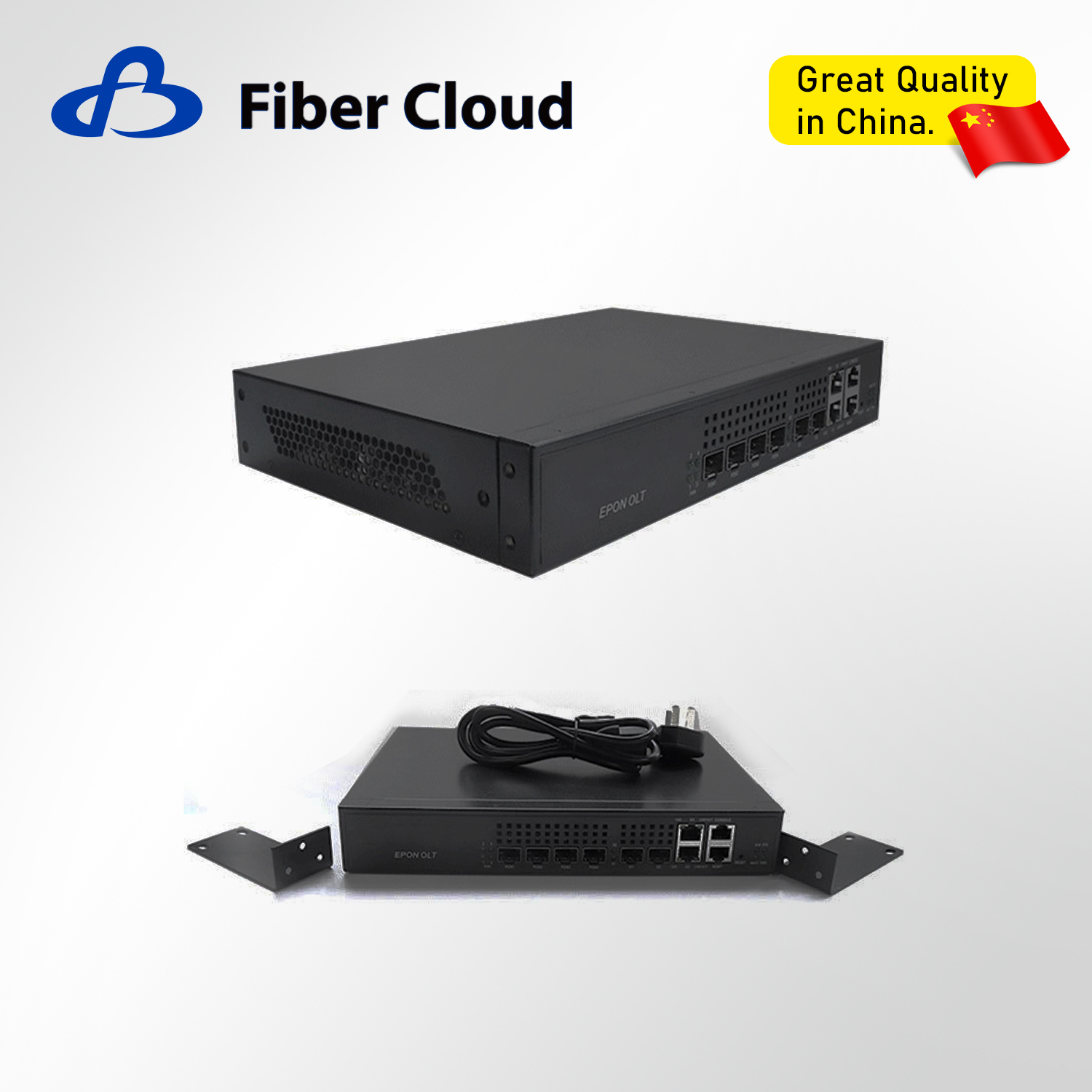

Dimensions	27.6cm (L) × 19cm (W) × 4.4cm (H), rack-mountable (19-inch standard)
