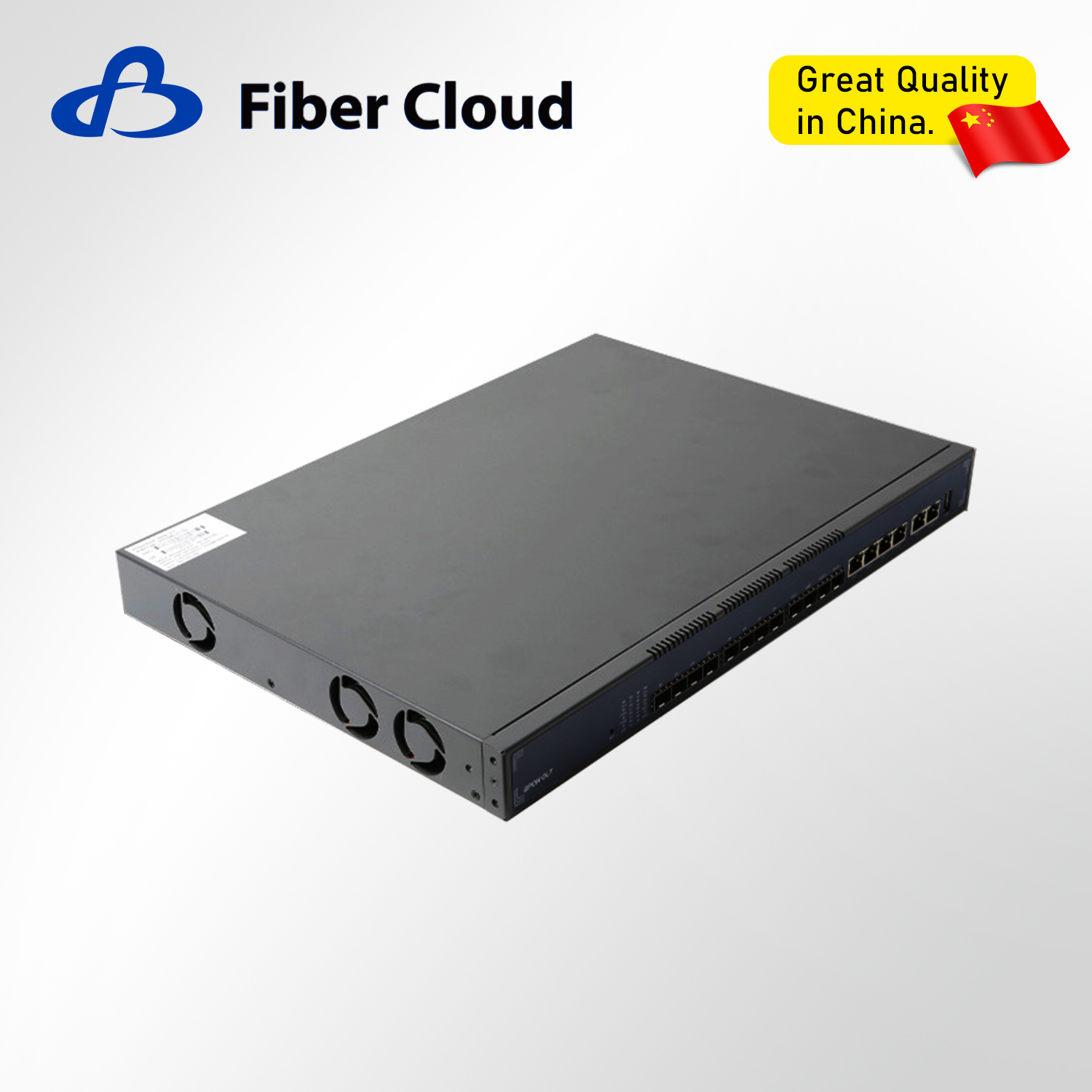

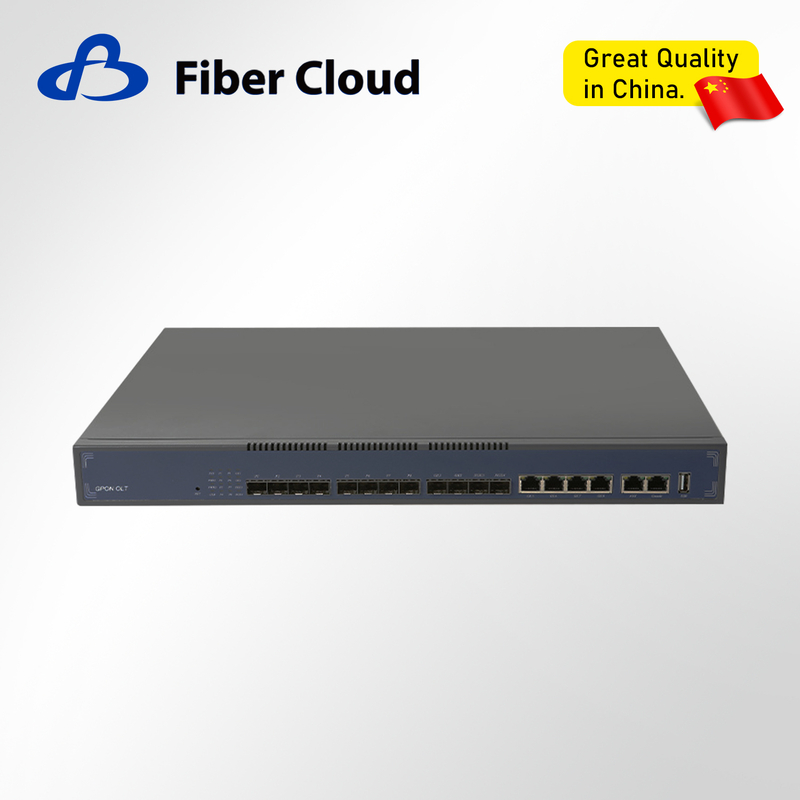

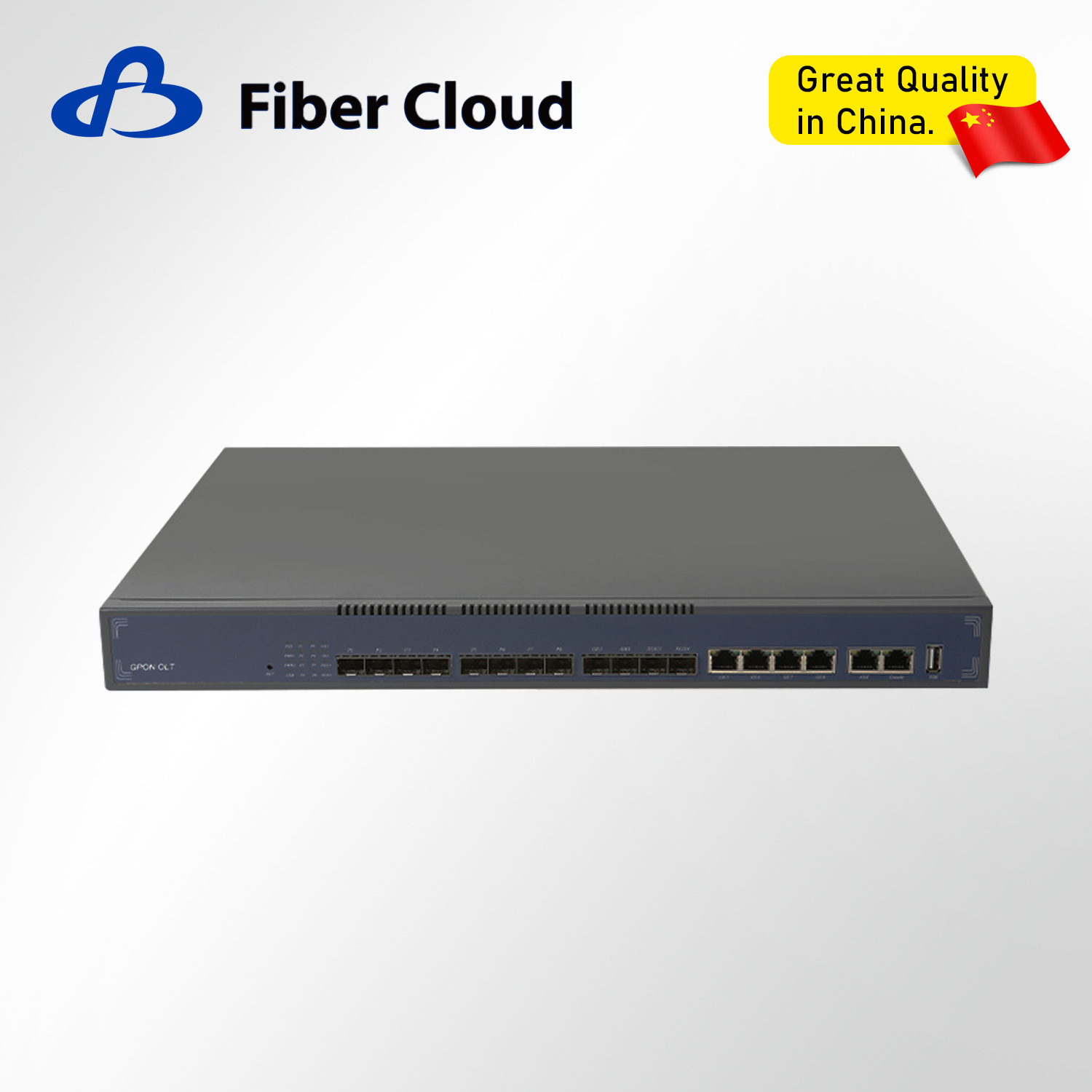

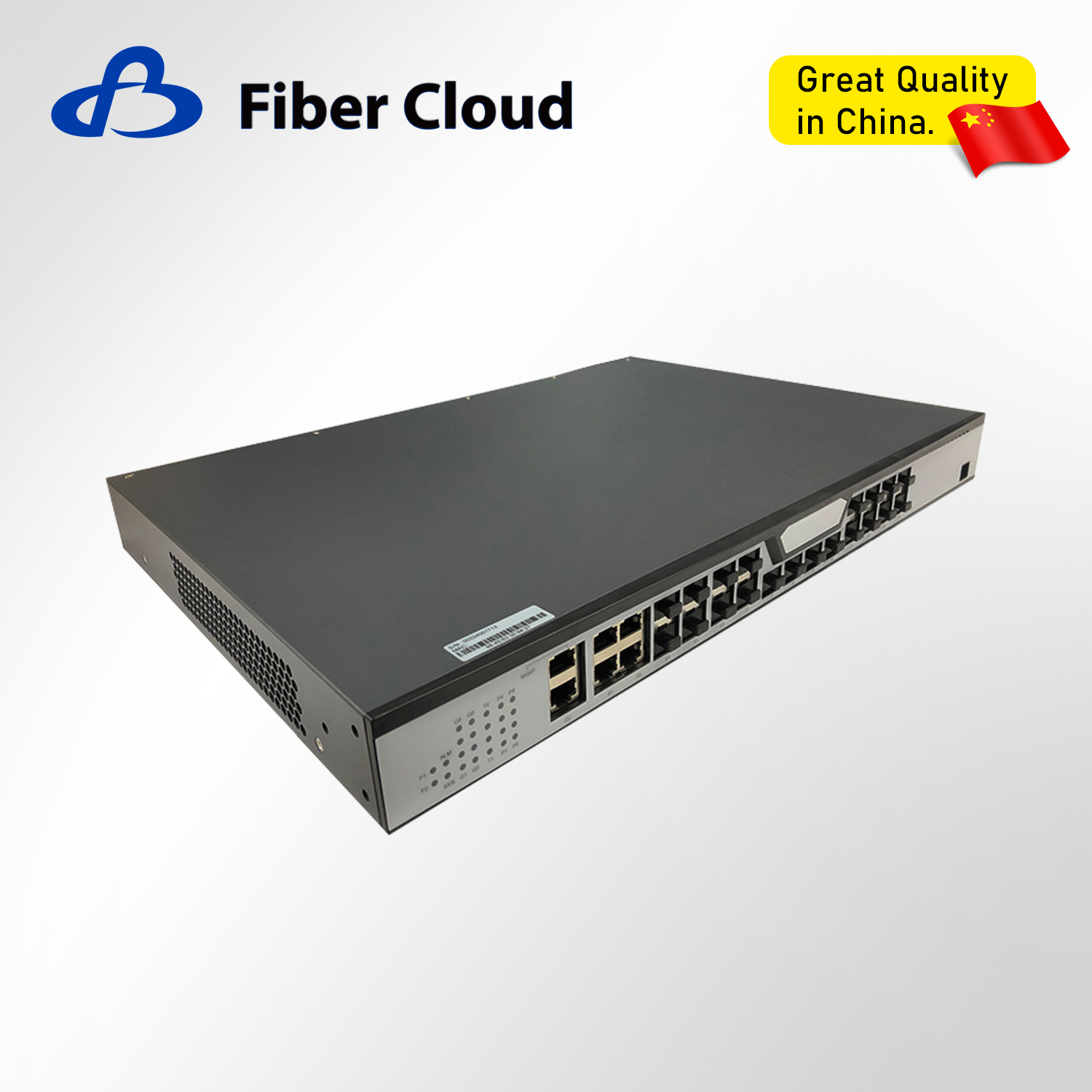

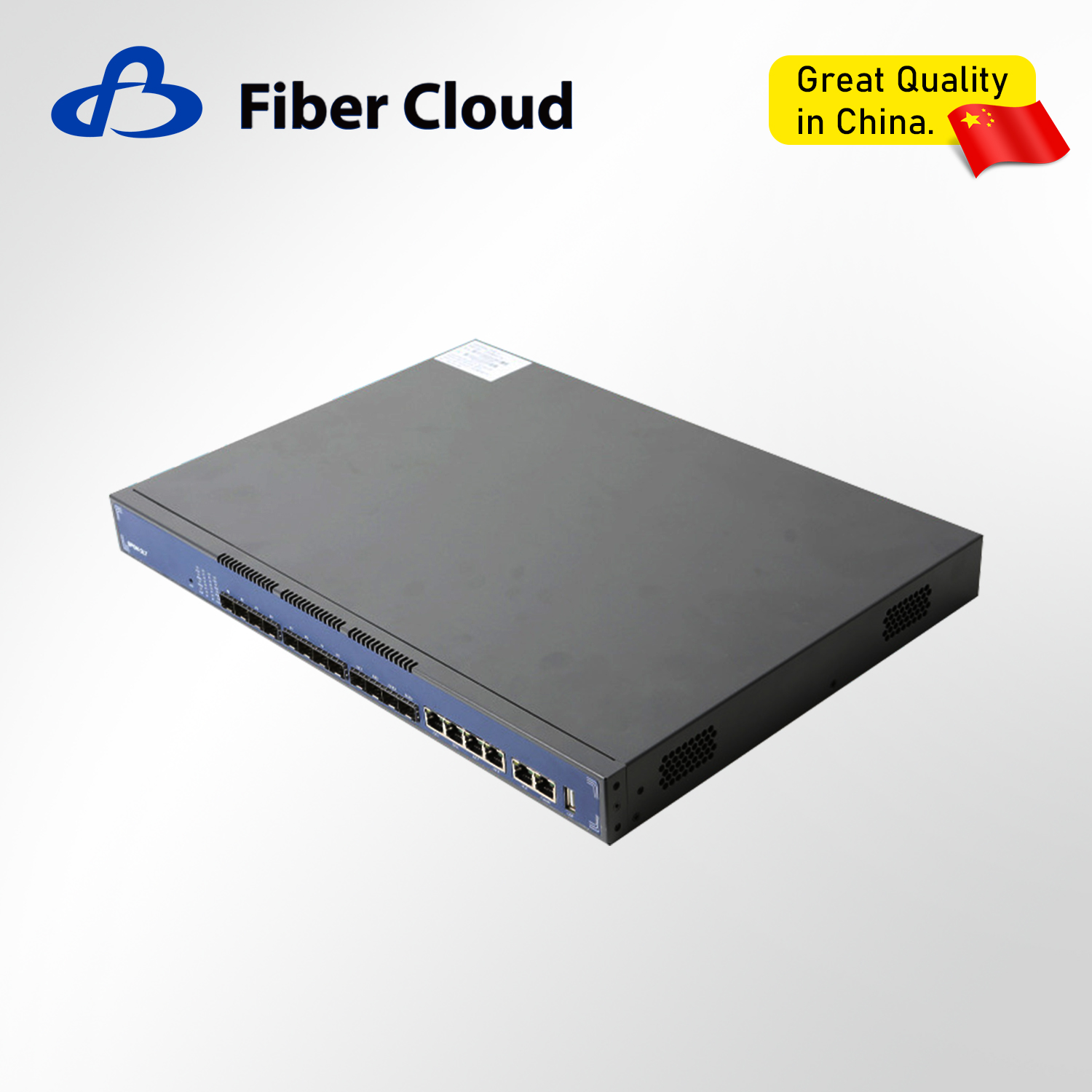

FTTH Gpon 8 LAN Port ONU SFP 10ge Fiber Optic Equipment Olt

Share to:

FTTH Gpon 8 LAN Port ONU SFP 10ge Fiber Optic Equipment Olt

The GPON OLT (8-port) is a high-performance optical line terminal designed for carrier-grade fiber access networks. It supports GPON standards (ITU-T G.984) with 2.488 Gbps downstream and 1.244 Gbps upstream per port, enabling efficient triple-play service delivery. Key features include DBA (Dynamic Bandwidth Allocation), advanced QoS, OMCI-based ONT management, and robust security (AES-128 encryption). Its compact 8-port design ensures high-density FTTH/FTTB deployments with remote provisioning, SNMP monitoring, and seamless software upgrades.
· Supports static LACP and dynamic LACP;
· QoS based on port, VID, TOS, and MAC address;
· Access control lists;
· IEEE 802.x flow control;
· Port stability statistics and monitoring;
· Supports IGMP Snooping, 256 IP multicast groups;
· DHCP server, DHCP relay, DHCP Snooping, DHCP options 2;
· Supports data encryption, multicast, port VLAN, isolation, RSTP, etc.;
· Supports ONT auto-discovery, auto-configuration/link detection/remote software upgrade;
· Supports power-off alarm function for easy link issue detection;
· Supports broadcast storm suppression;
· Supports flexible ACL and SNMP configuration for packet filtering;
· Professional system fault prevention design to maintain system stability;
· Supports RSTP, IGMP proxy;
· Supports Dynamic Bandwidth Allocation (DBA);
· Supports remote software upgrade, downloading firmware to OLT via web/TFTP/FTP.

Availability:



Inquire Add to Basket

Model:
NF5808G

Product Description

Parameter	Specifications
Installation	Standard 19″ rack
Backplane bandwidth	128G
Transmit optical power	+3 ~ +7dBm
Transmission distance	20KM
Operating temperature	-5 ~ +55°C
Storage temperature	-40 ~ +85°C
Maximum split ratio	1:128
Transmission rate	Upstream: 1.244G, Downstream: 2.488G
Layer 3 functionality	Supports static routing, dynamic routing (RIPv1/v2, OSPFv2), ARP proxy
Management ports	1 out-of-band management port (10/100BASE-T), 1 control port
Management methods	SNMP, Telnet, CLI (Command Line Interface), WEB, SSH v1/v2
VLAN	Tag/Untag, VLAN conversion, double-layer VLAN (QinQ)
Power supply	100 ~ 240V, 47/63Hz (DC: -48V optional)
