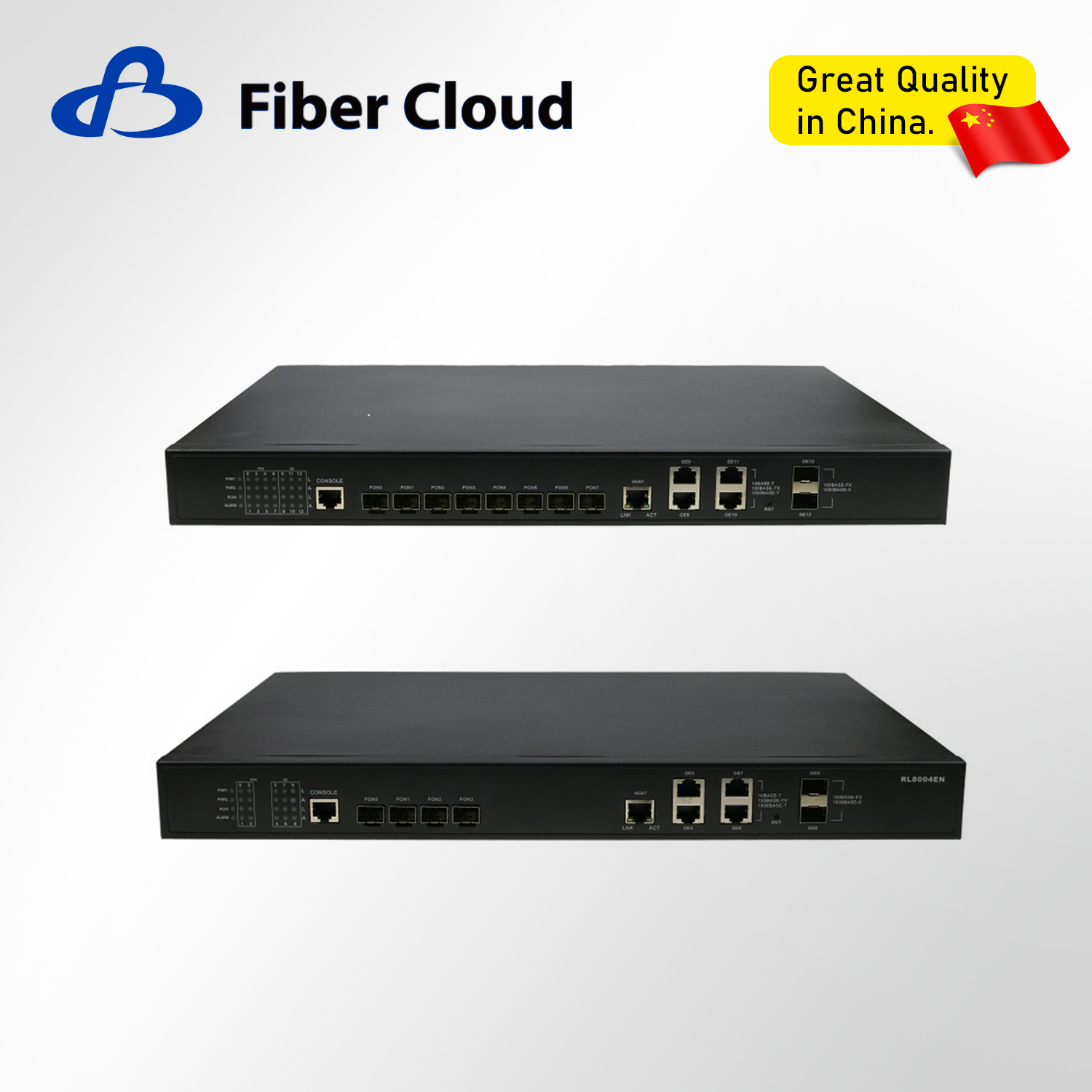

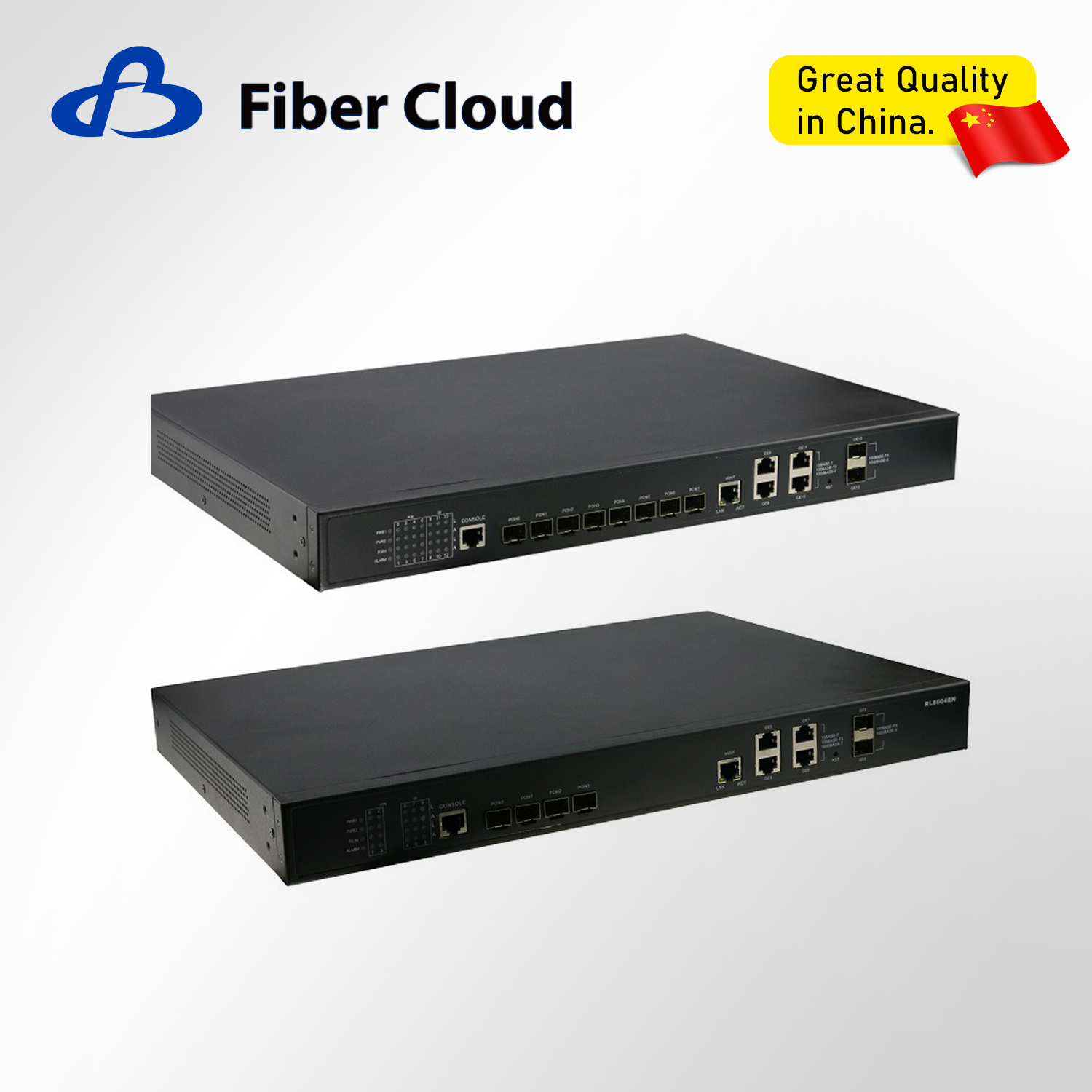

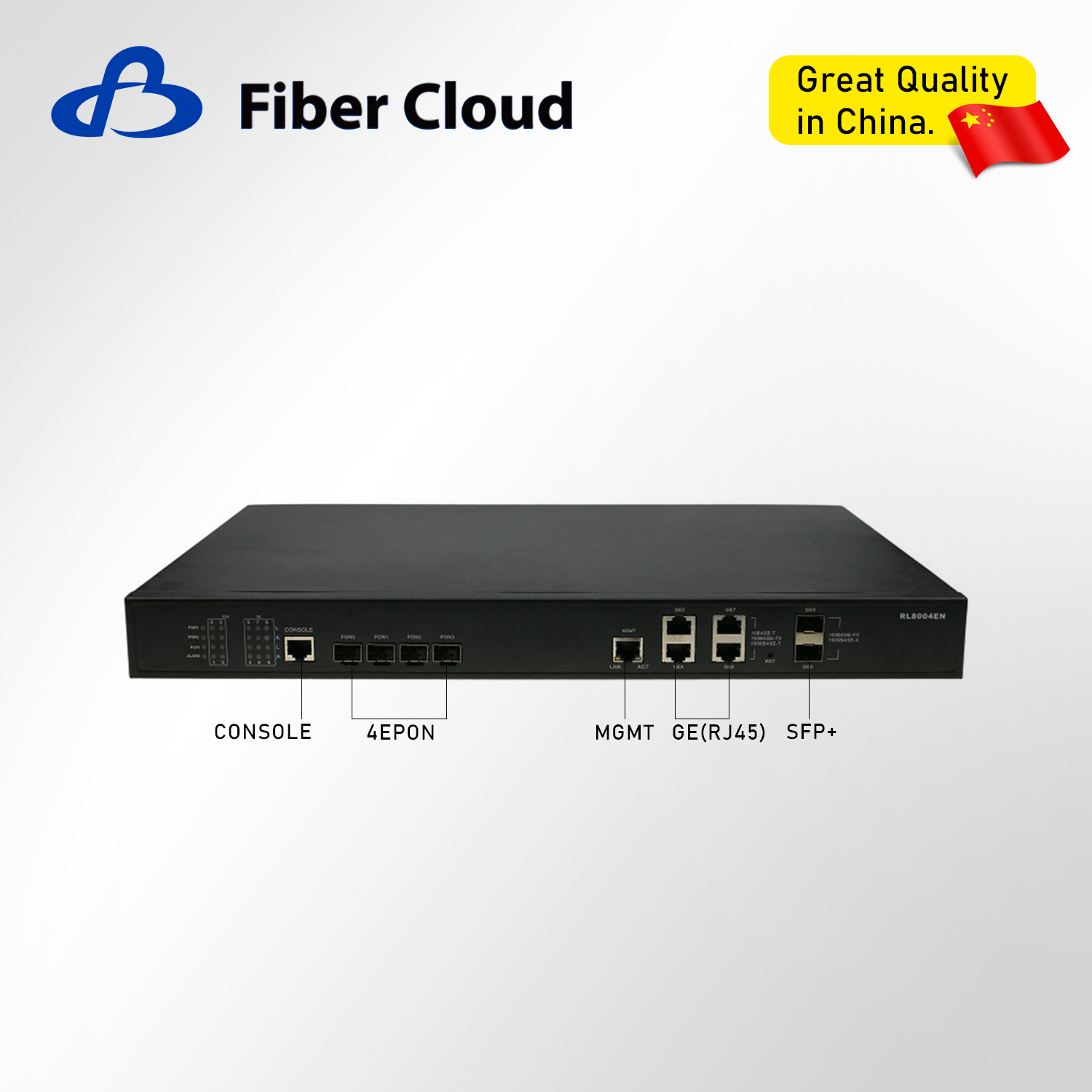

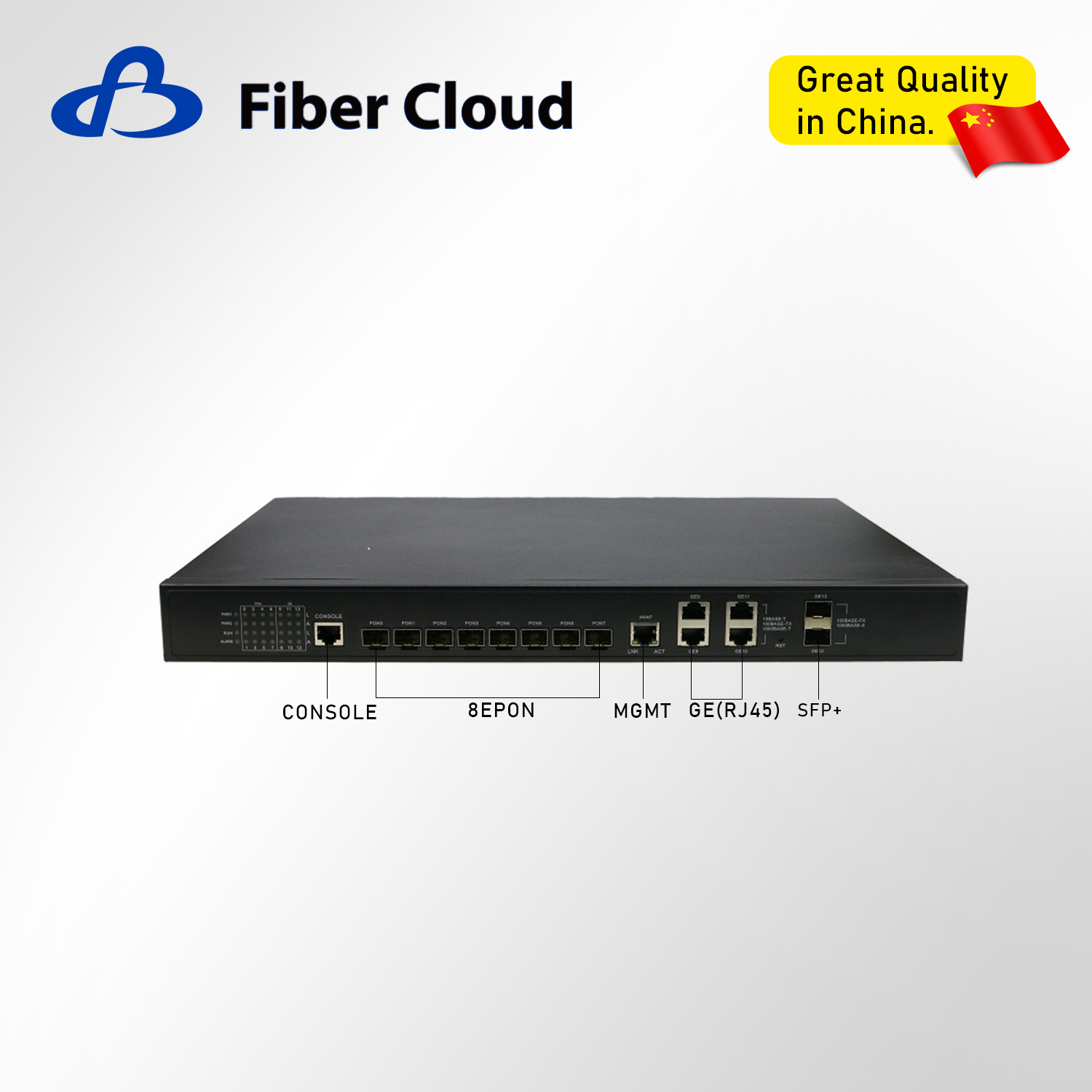

FTTH Epon ONU 4/8 Ports Fiber Optical Line Terminals Equipment Mini Olt

Share to:

FTTH Epon ONU 4/8 Ports Fiber Optical Line Terminals Equipment Mini Olt

Standards Compliance: IEEE 802.3ah EPON, supporting symmetric 1.25Gbps uplink/downlink per port.
Efficient Management: Supports ONU auto-discovery, remote configuration (OMCI), and firmware upgrades via WEB/CLI/Telnet.
Advanced QoS: DBA (Dynamic Bandwidth Allocation), VLAN tagging/transparent transmission, and ACL for traffic prioritization.
Robust Security: AES-128 encryption, port isolation, and broadcast storm suppression.
High Reliability: Operates in 0°C to +55°C environments with power-off alarm and loopback detection.
Scalability: 1:32 split ratio (extendable via optical amplifiers) for flexible FTTH/FTTB deployments.

Availability:



Inquire Add to Basket

Model:
RL8004EN

Product Description

Parameter	Specifications
Installation	Desktop type
Backplane Bandwidth	16 Gbps
Wavelength	TX 1490nm, RX 1310nm
Transmission Distance	20KM
Operating Temperature	-10℃ to +55℃
Storage Temperature	-40℃ to +85℃
Maximum Split Ratio	1:128
Transmission Rate	Up: 1.244Gbps, Down: 2.488Gbps
Throughput	23.808 Mpps
Management Methods	Console/WEB/Telnet/CLI
VLAN	VLAN tag/untag, VLAN transparent transmission
Power Supply	DC 12V 2.5A

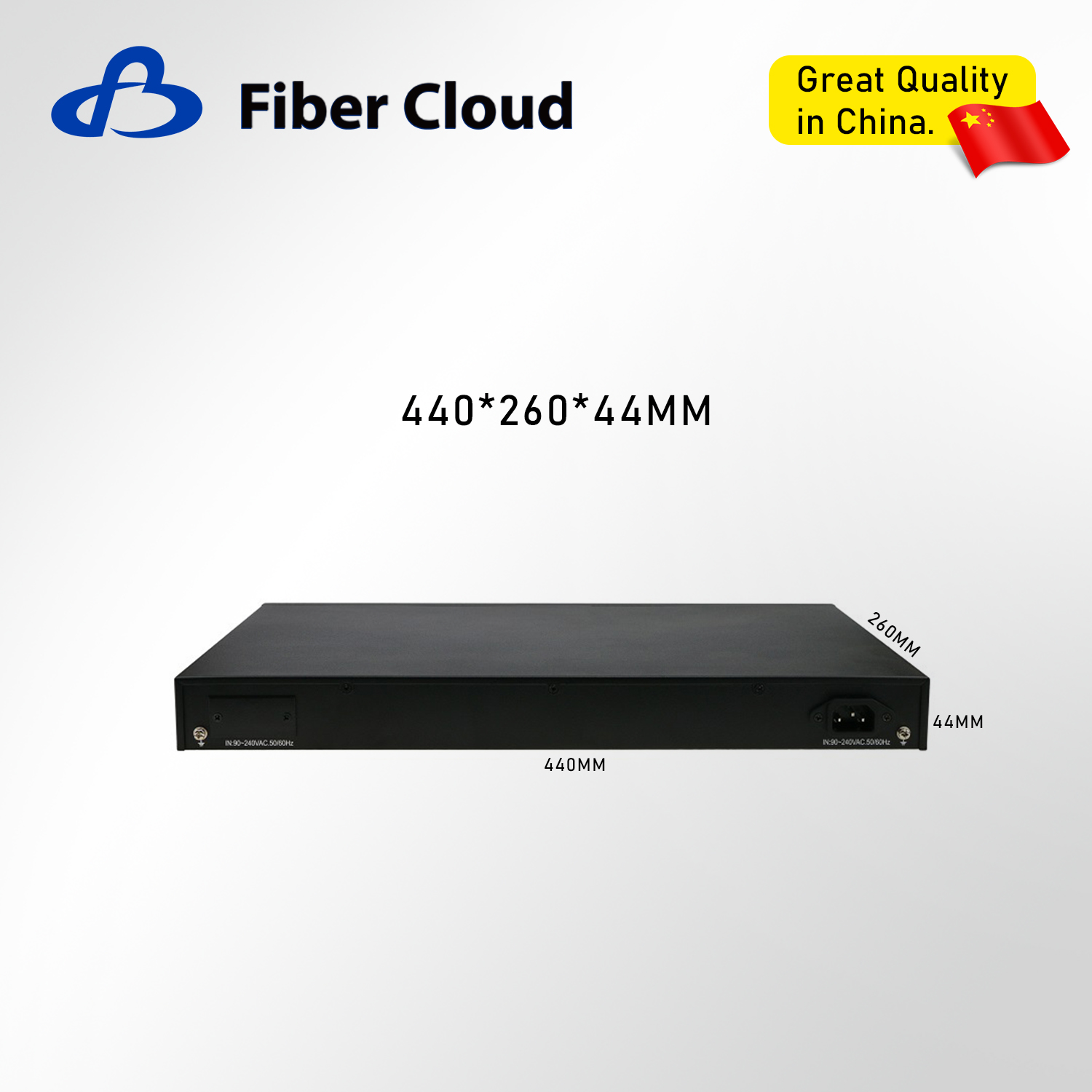

Dimensions	440mm(L) × 260mm(W) × 44mm(H)
