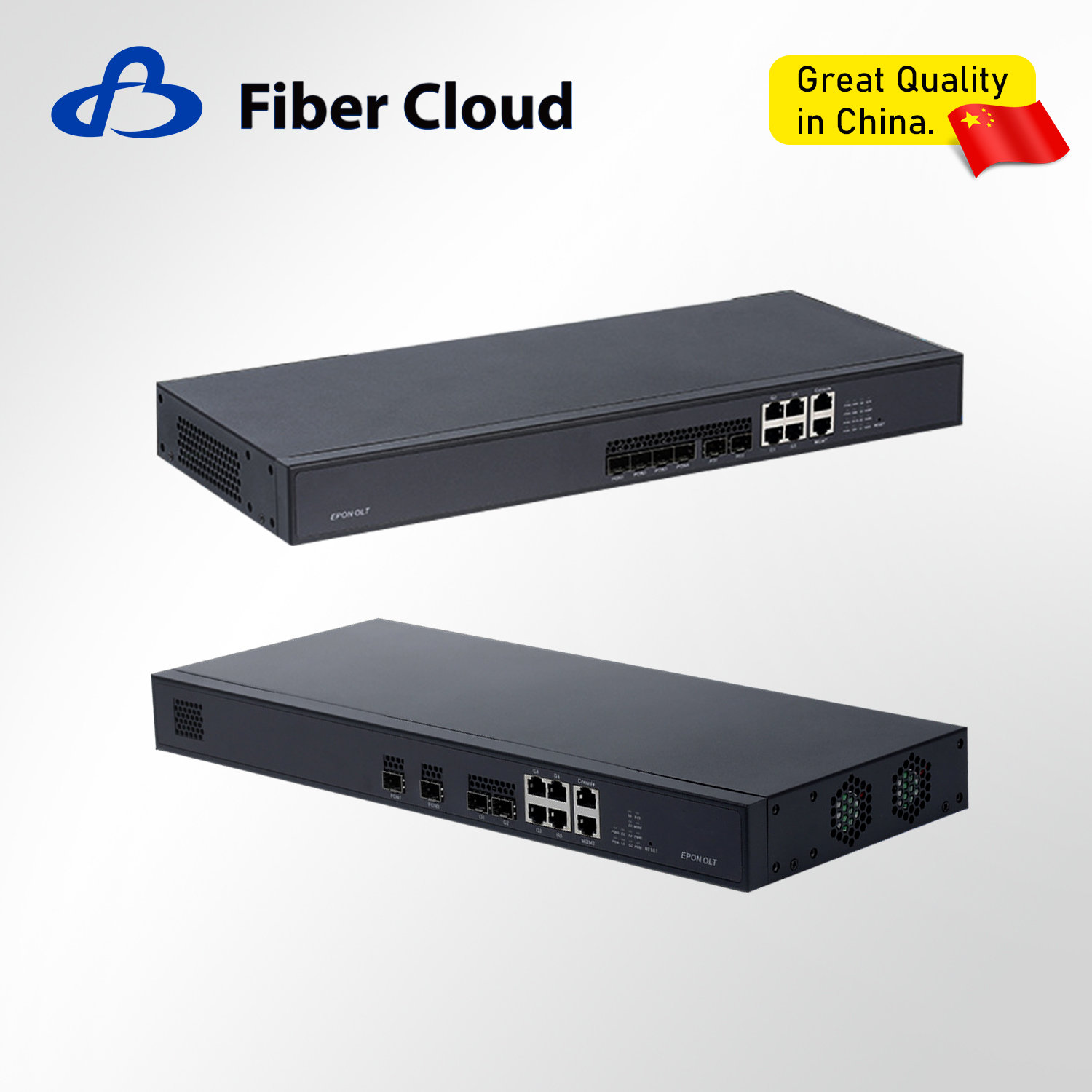

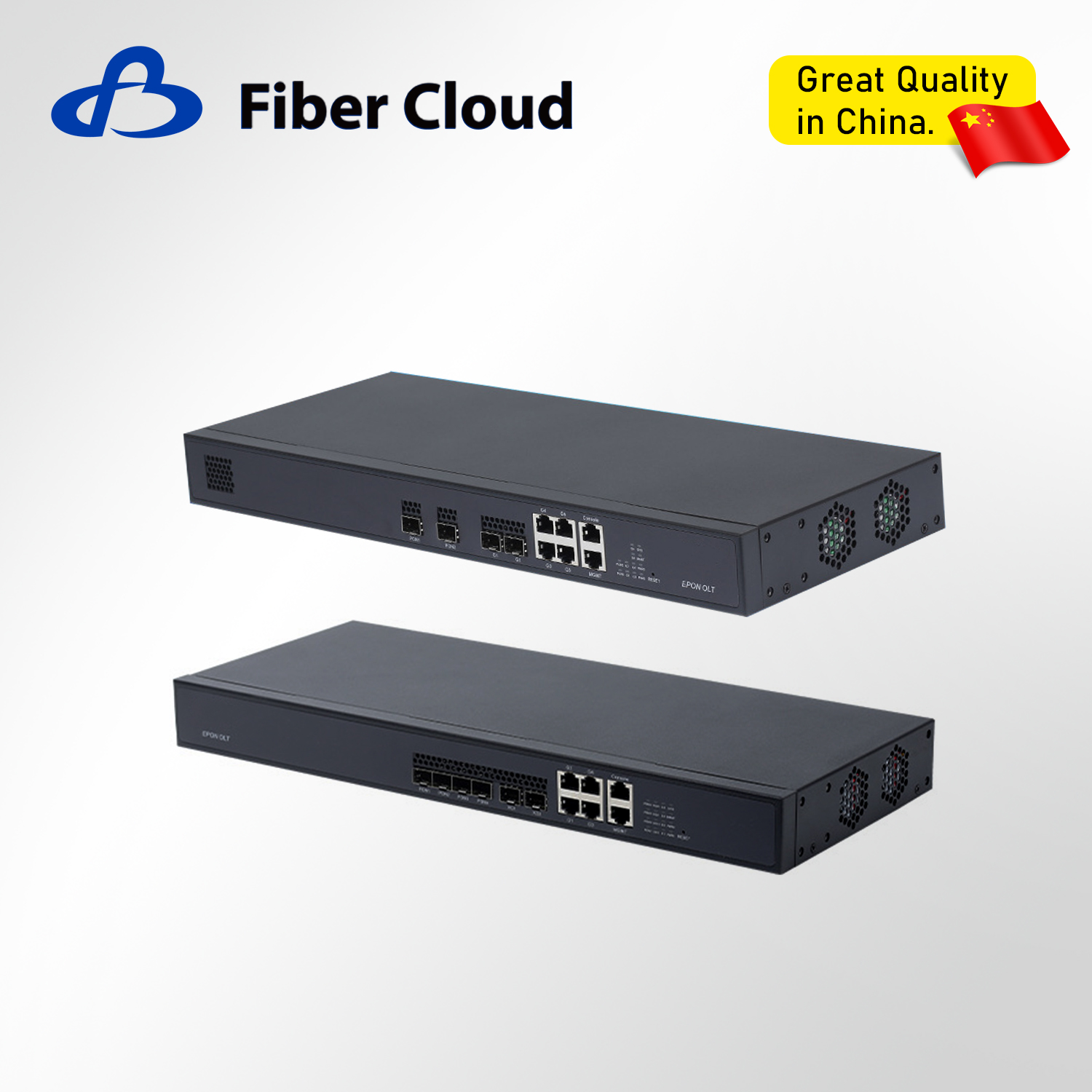

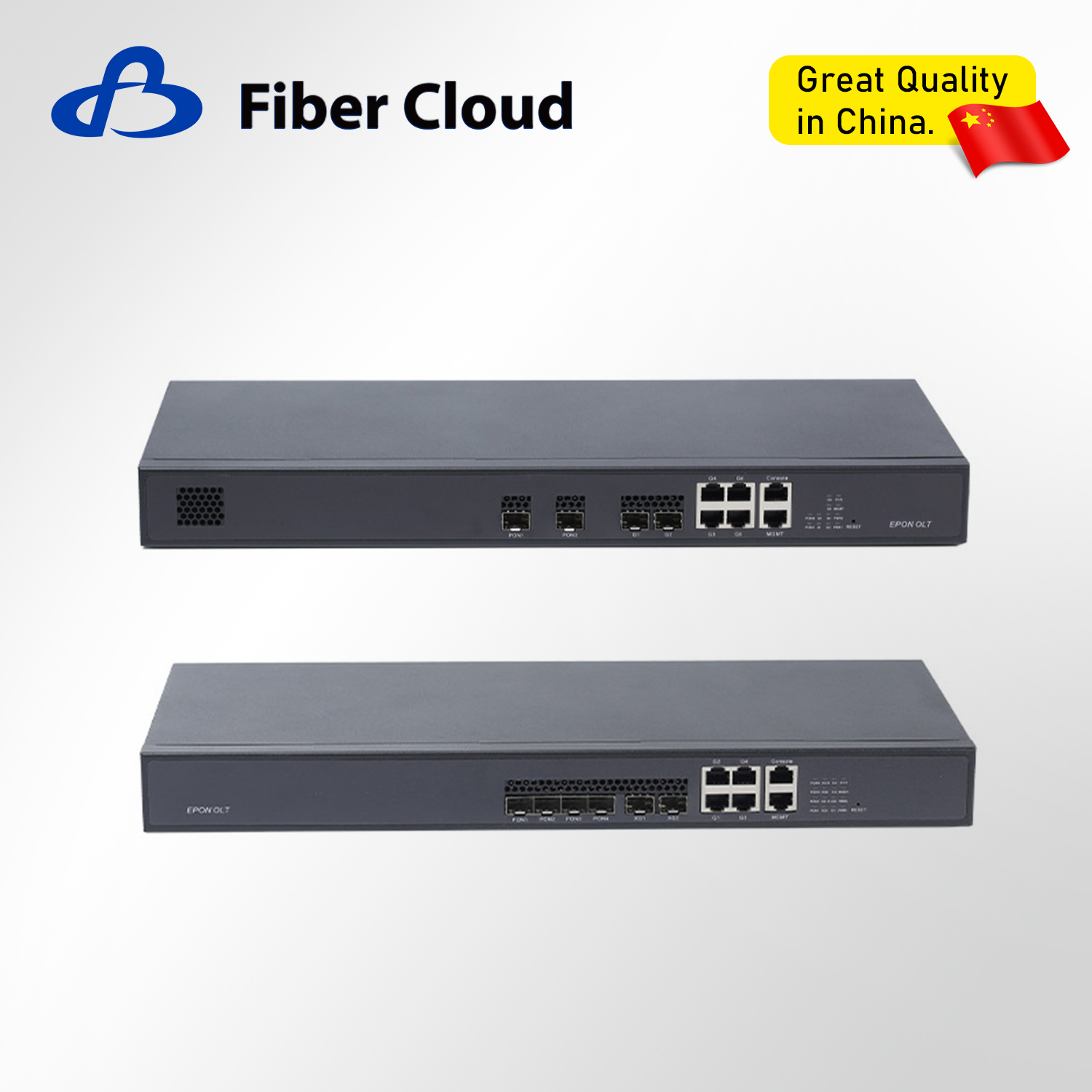

FTTH 1u 2/4 Port Epon Gpon Olt with SFP Modules

The 2 and 4-port EPON OLTs are high-performance optical line terminals designed for efficient fiber access networks, supporting up to 1:64 split ratios and 20km transmission distances. These OLTs comply with IEEE 802.3ah standards, offering symmetric 1Gbps bandwidth, dynamic allocation (DBA), and AES-128 encryption for secure data transmission. They feature dual Gigabit uplinks (SFP + electrical) and support remote ONU management, including auto-discovery, power monitoring, and batch configuration. With 48G backplane capacity and 256 ONU support, they ensure scalable and stable. deployments in FTTH/FTTx applications.
Characteristics

100,000-hour MTBF and robust OAM
Web GUI, CLI, SNMP, and TELNET
Low 20W power consumption
Wide-temperature operation (-10°C to 55°C)
Supports 4K VLANs, IGMP snooping, and high-density ONU scaling

Availability:



Inquire Add to Basket

Model:
NF5802V/NF5804V

Product Description

Product Application

Road monitoring

Factory park

Cell broadband

Hotels, guesthouses

Product Specifications

Parameter	Specifications
Brand & Model	NF5802V
Installation	Standard 1U Rack Mount
Optical Power	+2.5 to +7dBm

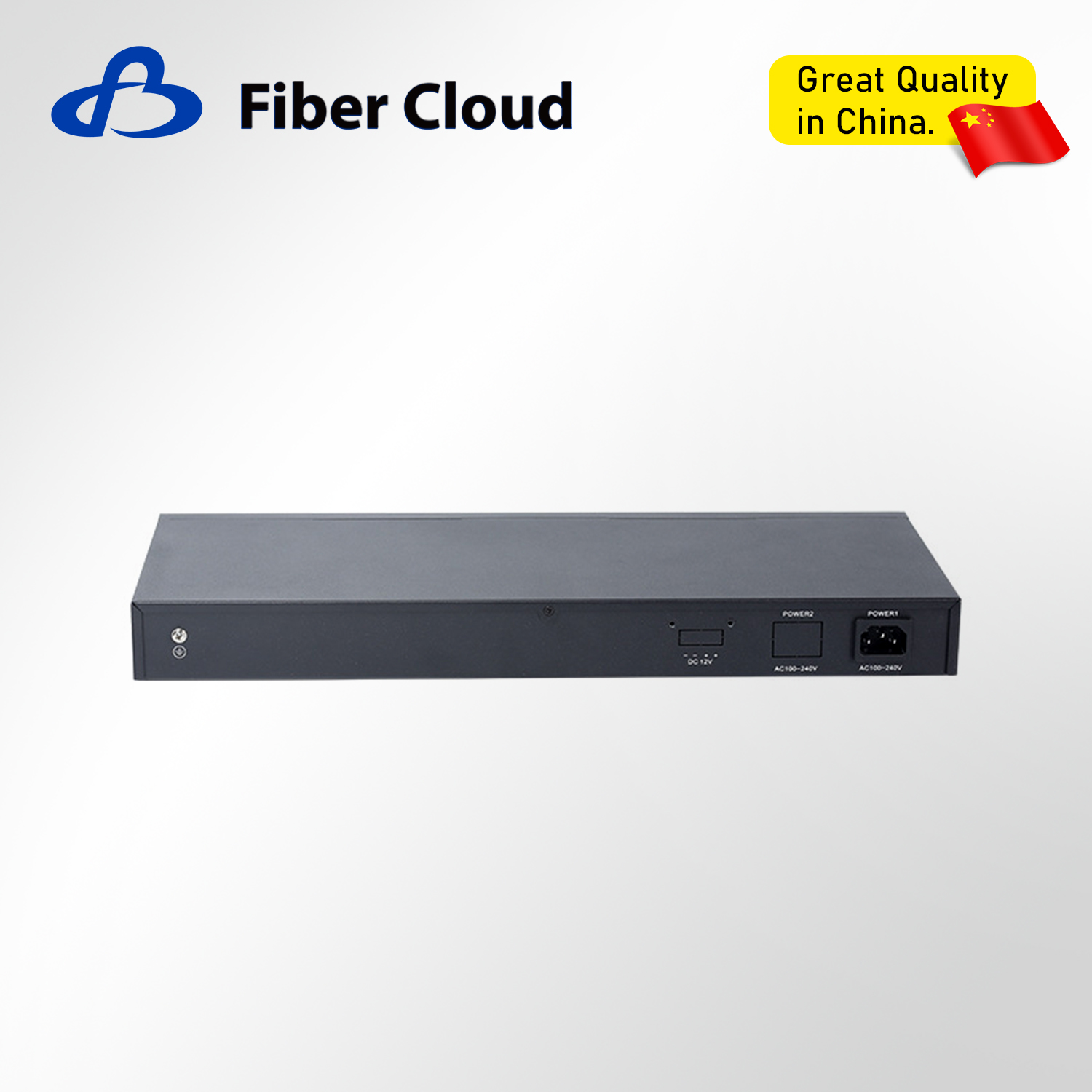

Input Voltage	AC 100–240V (Single/Dual Power Supply)
Operating Temperature	-10 to 55°C
Dimensions (W×H×D)	440mm × 44mm × 180mm
Compliance Standards	IEEE 802.3ah, YD/T 1475-2006, CTC 2.0/2.1/3.0

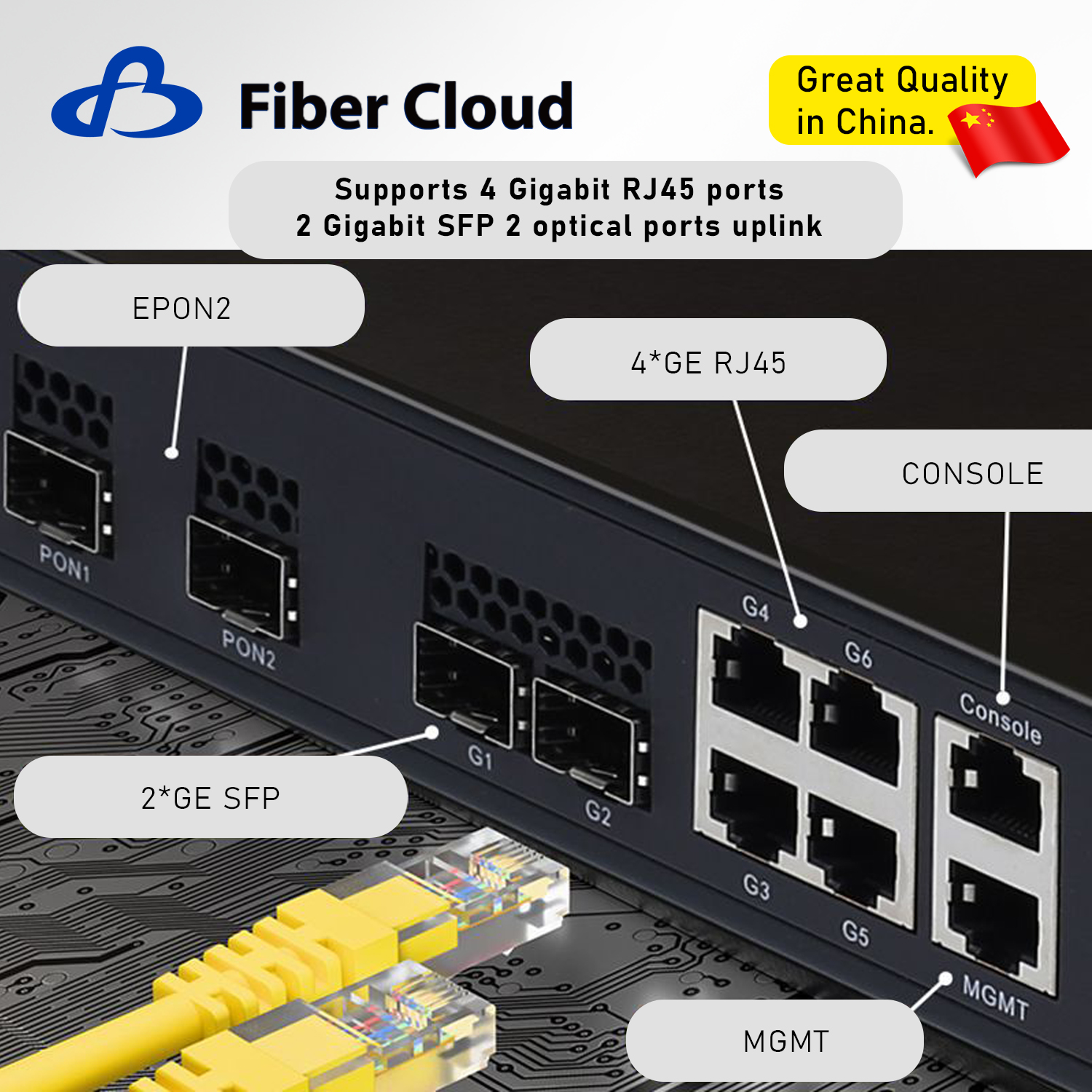

Interfaces	EPON Ports×2,GE SFP+ Uplink×2,GE RJ45 Uplink×4,MGMT Port×1,Console Port×1

Parameter	Specification
Brand & Model	NF5804V
Installation	Standard 1U Rack Mount
Optical Power	+2.5 to +7dBm
Input Voltage	220V AC (Single/Dual Power Supply)
Operating Temperature	-10 to 55°C
Dimensions (W×H×D)	440mm × 44mm × 180mm
EPON Standards	IEEE 802.3ah, YD/T 1475-2006, CTC 2.0/2.1/3.0

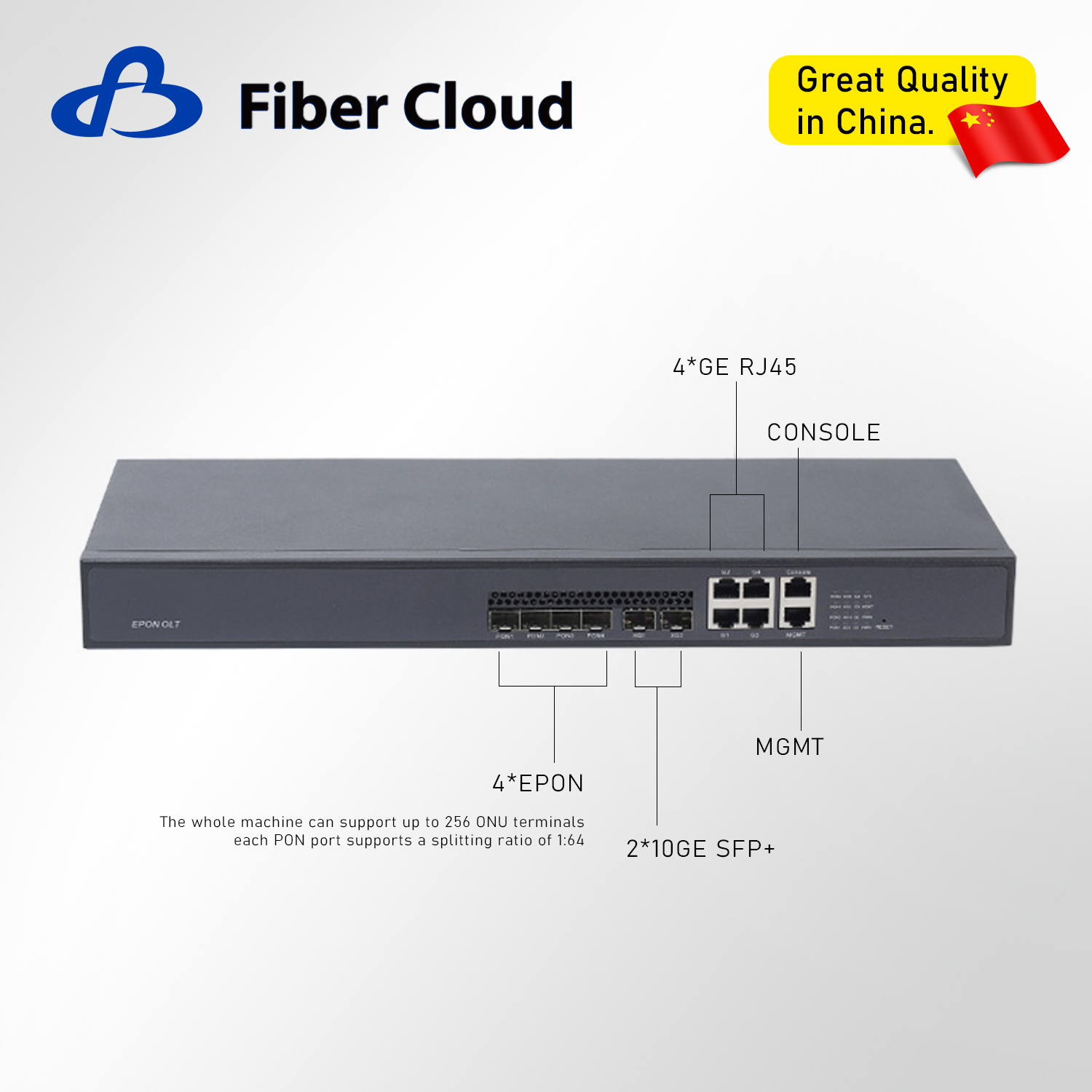

Interfaces	EPON Ports×4,10G SFP+ Uplink×2,GE RJ45 Uplink×4,MGMT Port×1,Console Port×1
Network Management	Local/remote CLI, In-band/Out-of-band management, WEB-based configuration
VLAN Support	4096 VLANs (Port-based & 802.1Q)
LED Indicators	PWR1/PWR2 (Power), PON1-PON4 (Link/Active), XG1-XG2 (10G SFP+ Link/Speed), GE1-GE4 (RJ45 Link/Active)
Switching Capacity	64Gbps (Non-blocking)
Security Features	AES & Triple Churning encryption, ONU MAC binding/filtering, PON port isolation
Maintenance	Configuration backup/restore, Factory reset, OLT firmware upgrade, ONU offline provisioning
Dynamic Bandwidth (DBA)	64Kbps granularity
MAC Capacity	8K uplink MAC, 16K PON MAC (Wire-speed learning/aging)
Protocols	STP (IEEE 802.1d), RSTP (IEEE 802.1w)
QoS & Scheduling	SP/WRR/SP+WRR queue scheduling
Port Features	Port mirroring, aggregation
Monitoring	Logs, alarms, performance statistics
Additional Features	WEB management, ONU auto-configuration
